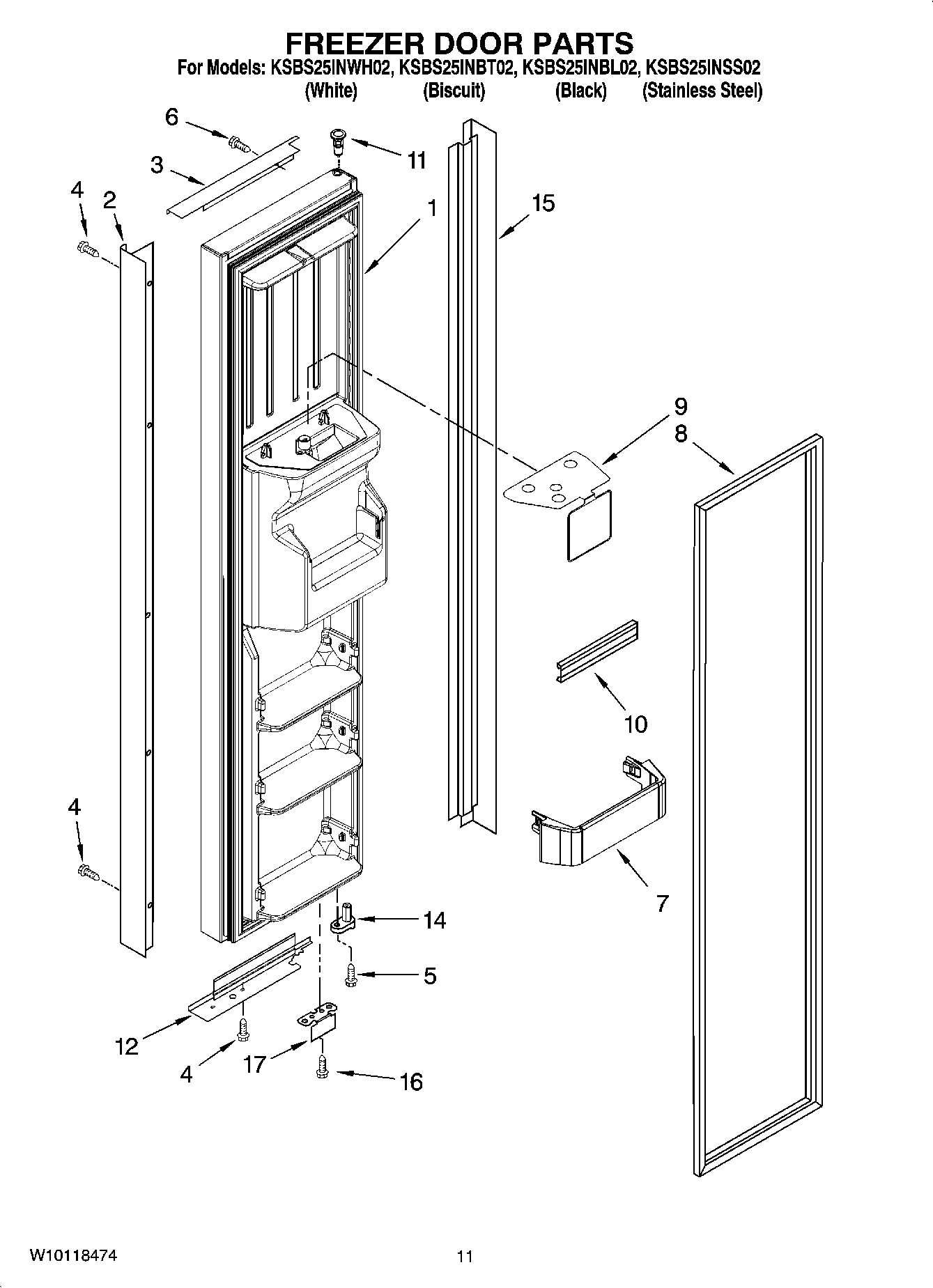

KSBS25INSS02 07 – FREEZER DOOR PARTS

KSBS25INSS02 07 – FREEZER DOOR PARTS

Written by

in

KSBS25INSS02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
2Handle (Black)
2Handle (White)
2Handle (Biscuit)
2Handle (Stainless Steel)
3Trim, Top (Black)
3Trim, Door Top (Stainless Steel)
3Trim, Top (Biscuit)
3Trim, Top (White)
4WP3196557 Whirlpool Screw
5WP3400012 Whirlpool Refrigerator Screw
6Screw
7Shelf Bin (3)
82306995 Whirlpool Refrigerator Door Gasket
8Door Gasket, Magnetic (Mist Beige)
9Safety Barrier
10WPW10307490 Whirlpool Door Trim Assembly
11WP2182181 Whirlpool Refrigerator Thimble
12Trim, Door Bottom (Stainless Steel)
12Trim, Bottom (Black)
12Trim, Bottom (Biscuit)
12Trim, Bottom (White)
14Door Closer, Upper Cam
15Trim, Hinge Side (White)
15Trim, Hinge Side (Biscuit)
15Trim, Hinge Side (Black)
15Trim, Hinge Side (Stainless Steel)
16WP489483 Whirlpool Screw
172306940B Whirlpool Refrigerator Bracket
172306940 Whirlpool Refrigerator Bracket
