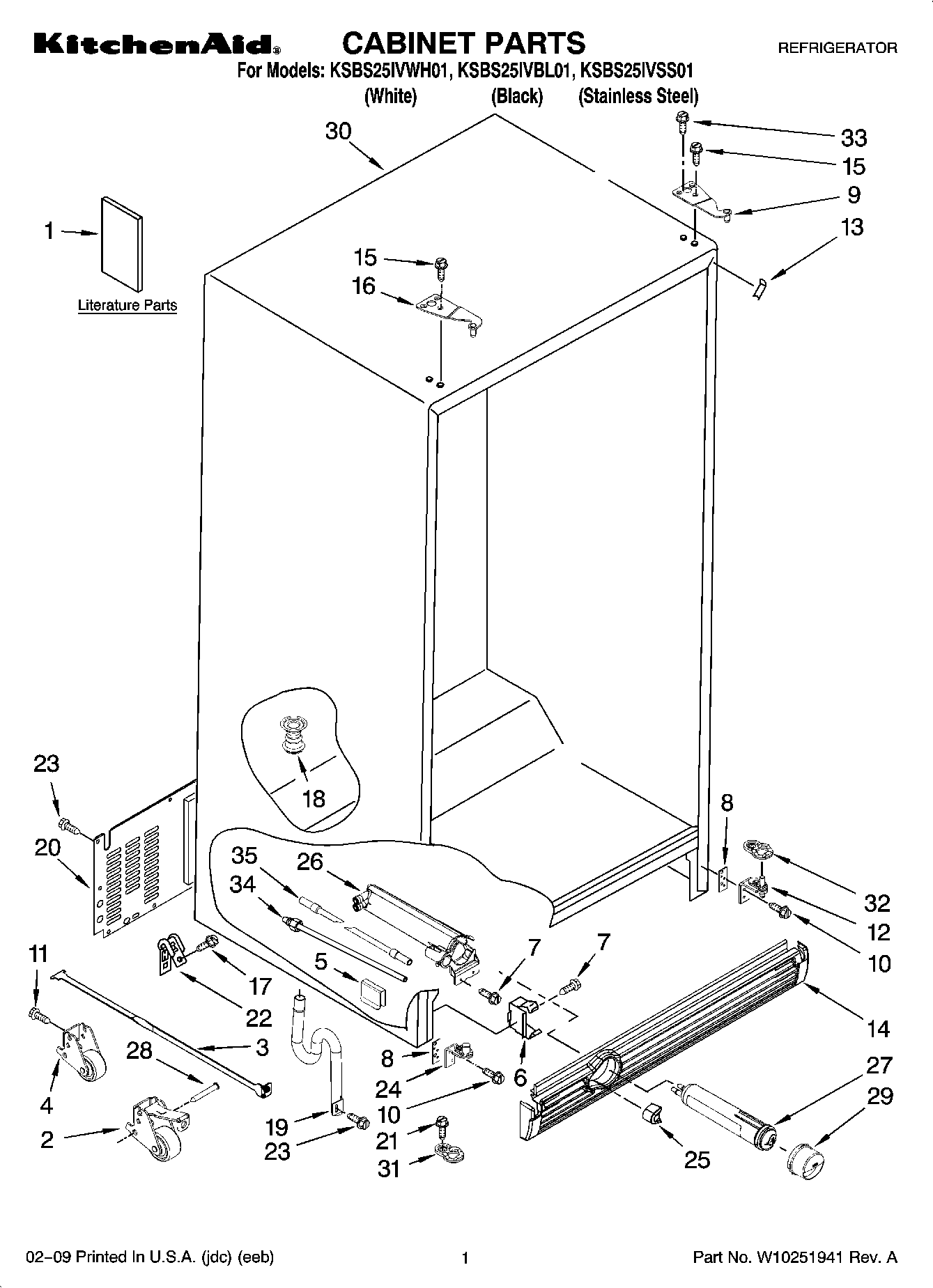

KSBS25IVBL01 01 – CABINET PARTS

KSBS25IVBL01 01 – CABINET PARTS

Written by

in

KSBS25IVBL01 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Energy Guide
1Use & Care Guide
1Modular Icemaker Service Sheet
1Service & Wiring Sheet
2ASSEMBLY, FRONT ROLLER (LEFT HAND)
2ASSEMBLY, FRONT ROLLER (RIGHT HAND)
3Strap, Roller
4WPW10173132 Whirlpool Refrigerator Cabinet Roller
5W11545866 Whirlpool Refrigerator Clip
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
82223545 Whirlpool Refrigerator Shim
92307008B Whirlpool Refrigerator Butt Hinge
92307008AP Whirlpool Refrigerator Hinge
10WP489497 Whirlpool Screw
11W10151272 Whirlpool Refrigerator Screw
12Hinge Assembly, Bottom-RC
13Filler, Wrapper (Black)
132223893W Whirlpool Refrigerator Filler
14Grille (White)
14Grille (Black)
153400108 Whirlpool Refrigerator Screw
162307007AP Whirlpool Refrigerator Hinge
162307007B Whirlpool Refrigerator Butt Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Tube, Extension
20Cover, Unit
21WP489483 Whirlpool Screw
22549193 Whirlpool Refrigerator Power Clamp
24Hinge Assembly, Bottom-FC
252260503W Whirlpool Refrigerator Button
25WP2260503B Whirlpool Refrigerator Button
26WPW10121140 Whirlpool Refrigerator Housing
27FILTER 3-SINGLE TEAL
28PIN, ROLLER
29WP2260518B Whirlpool Water Filter Cap
29WP2260518W Whirlpool Refrigerator Filter Cap
30Cabinet, (Not A Serviceable Part)
31Door Closer, FC
32WPL 2307049
33W10853301 Whirlpool Refrigerator Screw
34W11496481 Whirlpool Refrigerator Water Tube
358201597 Whirlpool Inlet Water Fill Tube Kit Filter
