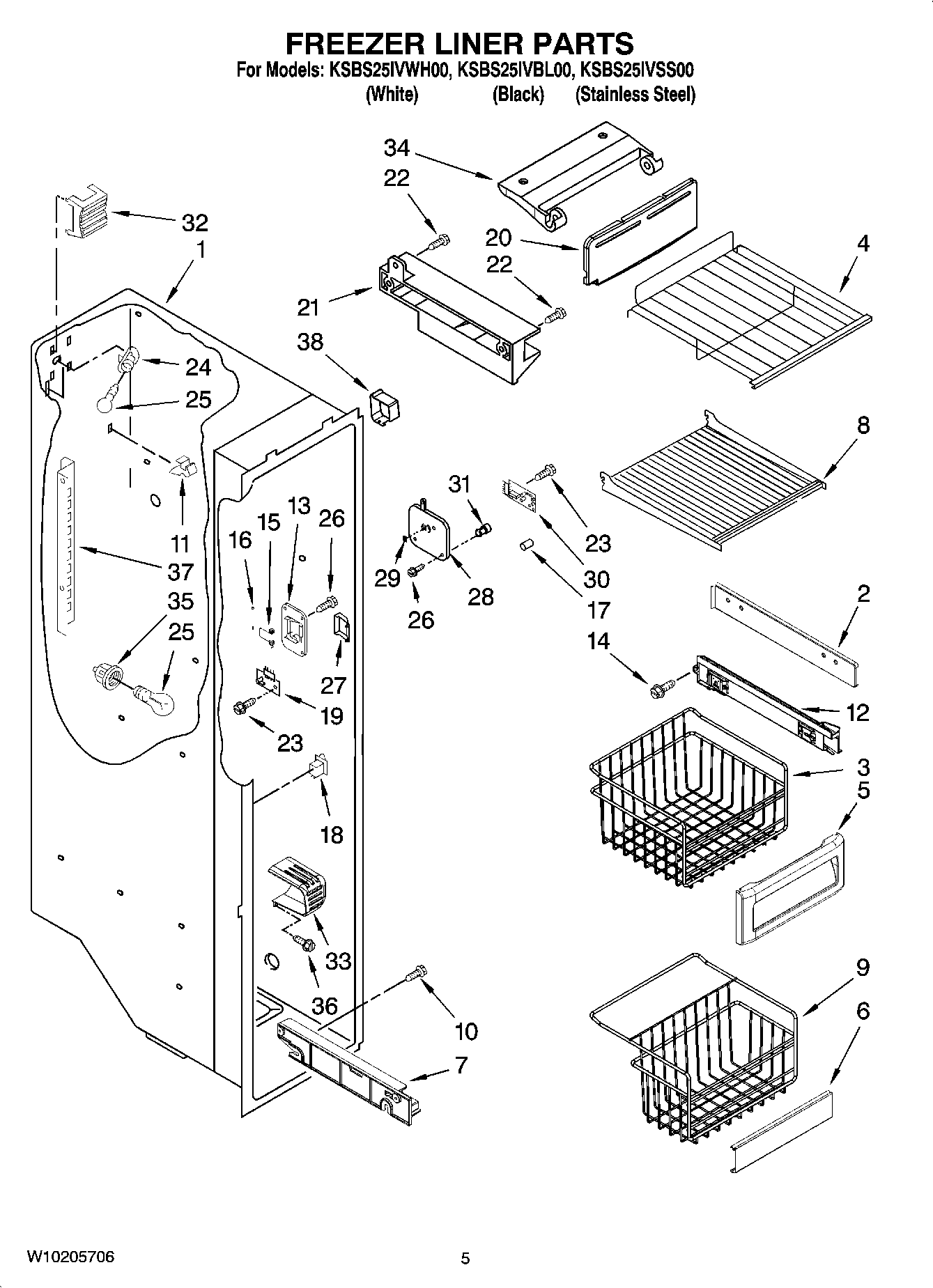

KSBS25IVSS00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Spacer, Slide (2)
3	Basket, Deep (2) (Includes 11)
4	SHELF, WIRE
6	Front, Basket
7	TRACK, SHELF (RIGHT HAND)
7	TRACK, SHELF (LEFT HAND)
8	Shelf, Fixed
9	Basket, Lower (Includes 3)
10	WP489427 Whirlpool Refrigerator Screw
11	2215823 Whirlpool Refrigerator Clip
12	2301544 Whirlpool Refrigerator Glide
12	2301545 Whirlpool Refrigerator Glide
13	Cover, Emitter
14	Screw
15	WP2198635 Whirlpool Refrigerator Spring
16	WP2198634 Whirlpool Door Pin
17	Tube, P.C. Board
18	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	WPW10185438 Whirlpool Ice Maker Cover
21	Slide, Ice Maker
21	2306900 Whirlpool Refrigerator Slide
22	WP489478 Whirlpool Refrigerator Screw
23	2006254 Whirlpool Refrigerator Screw
24	4387478 Whirlpool Refrigerator Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WPW10142283 Whirlpool Refrigerator Screw
27	WP2198633 Whirlpool Refrigerator Flipper
28	Cover, Receiver
29	2315398 Whirlpool Refrigerator Slide
30	W10757851-includeCORE Whirlpool Electronic Control+Core
31	WP2198643 Whirlpool Refrigerator Lens
32	Light Shield
33	Light Lens
34	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
35	SOCKET
36	W10142289 Whirlpool Air Conditioner Screw
37	Ladder (Left Side)
37	Ladder (Right Side)
38	2303378 Whirlpool Shield Assembly
