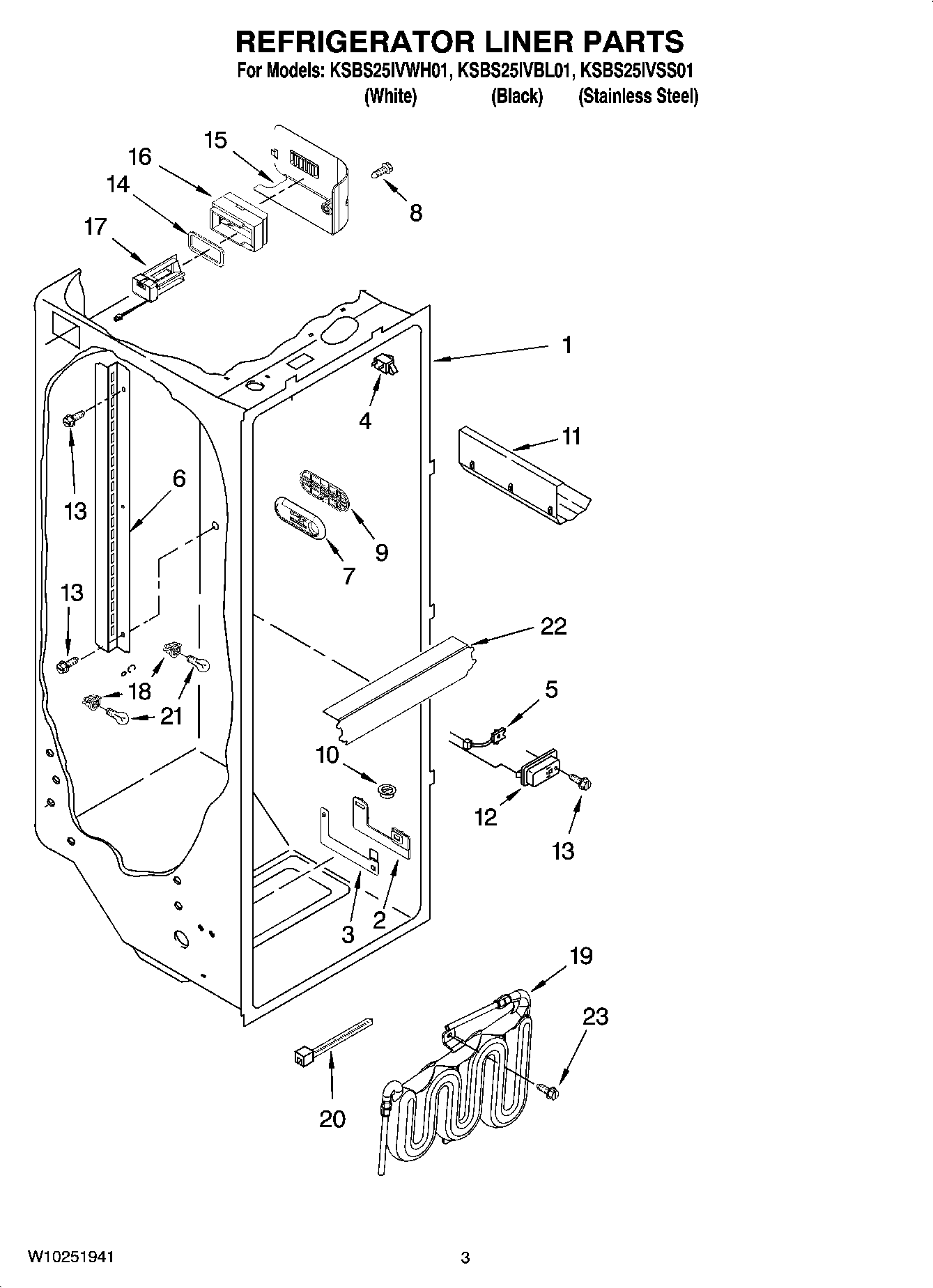

KSBS25IVSS01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2223524 Whirlpool Escutcheon
3	2223339 Whirlpool Slide
4	W11384469 Whirlpool Door Switch
5	WP2188820 Whirlpool Refrigerator Thermistor
6	Ladder, Shelf (2)
7	2301234 Whirlpool Refrigerator Control
9	Slide, Door Control
10	2171846 Whirlpool Refrigerator Release Valve
11	W10777924 Whirlpool Refrigerator Wine Rack
12	WP2317844 Whirlpool Refrigerator Cover
13	WP489478 Whirlpool Refrigerator Screw
14	Gasket, Air Baffle
15	COVER, AIR DIFFUSER
16	ASSEMBLY, AIR DIFFUSER
17	WP2220377 Whirlpool Refrigerator Air Baffle
18	4387478 Whirlpool Refrigerator Light Socket
19	RESERVOIR
20	WPW10339879 Whirlpool Wire Tie
21	RANGE ONLY 40W 120V APPL BULB
22	LENS, LIGHT
23	Screw (2)
