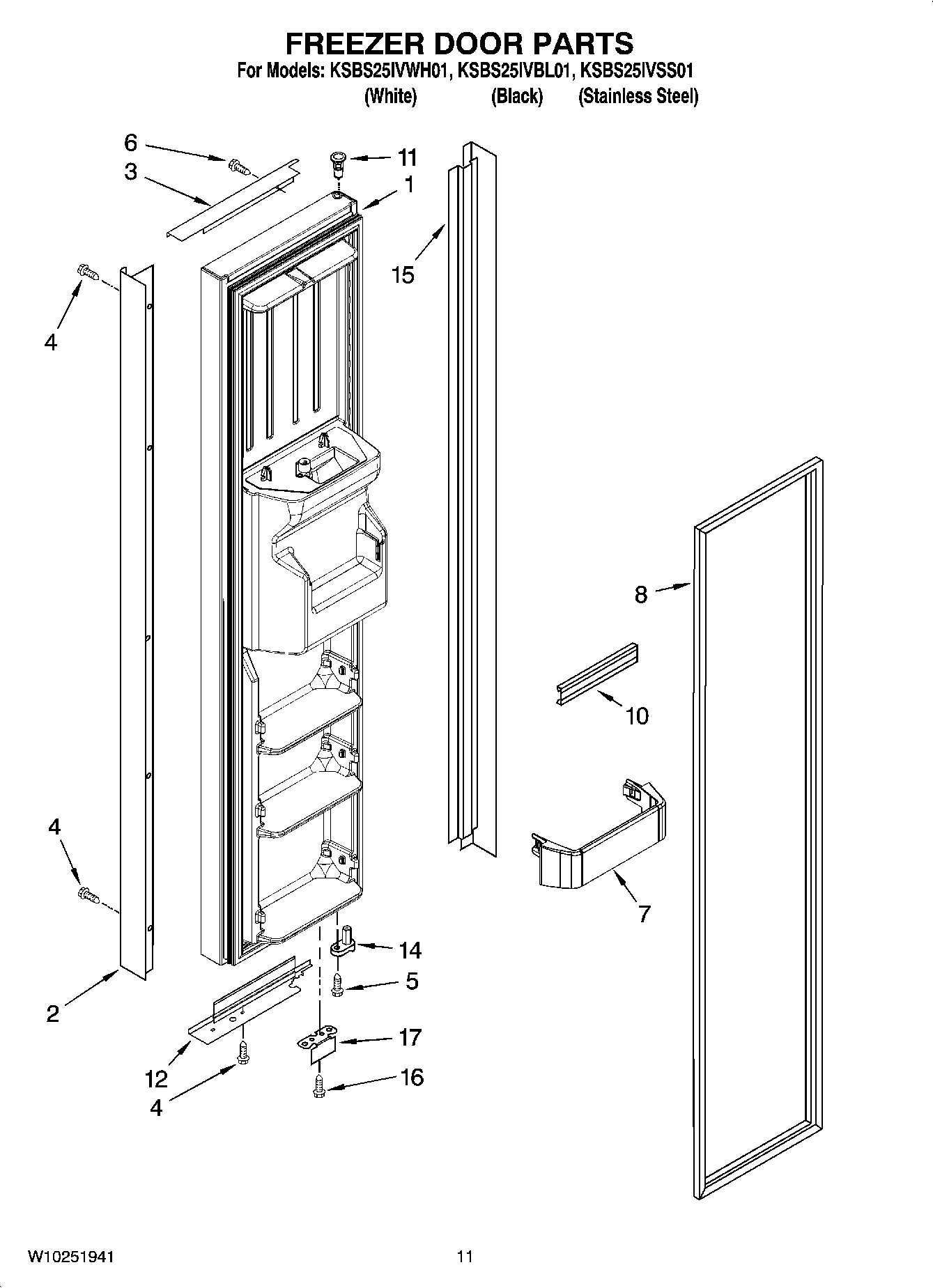

KSBS25IVSS01 07 – FREEZER DOOR PARTS

KSBS25IVSS01 07 – FREEZER DOOR PARTS

Written by

in

KSBS25IVSS01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2Handle (Black)
2Handle (White)
2Handle (Stainless Steel)
3Trim, Top (White)
3Trim, Top (Black)
3Trim, Door Top (Stainless Steel)
4WP3196557 Whirlpool Screw
5WP3400012 Whirlpool Refrigerator Screw
6Screw
7Trivet (3)
8Door Gasket, Magnetic (Mist Beige)
82306995 Whirlpool Refrigerator Door Gasket
10WPW10307490 Whirlpool Door Trim Assembly
11WP2182181 Whirlpool Refrigerator Thimble
12Trim, Bottom (White)
12Trim, Bottom (Black)
12Trim, Door Bottom (Stainless Steel)
14Door Closer, Upper Cam
15Trim, Hinge Side (Stainless Steel)
15Trim, Hinge Side (Black)
15Trim, Hinge Side (White)
16WP489483 Whirlpool Screw
172306940 Whirlpool Refrigerator Bracket
172306940B Whirlpool Refrigerator Bracket
