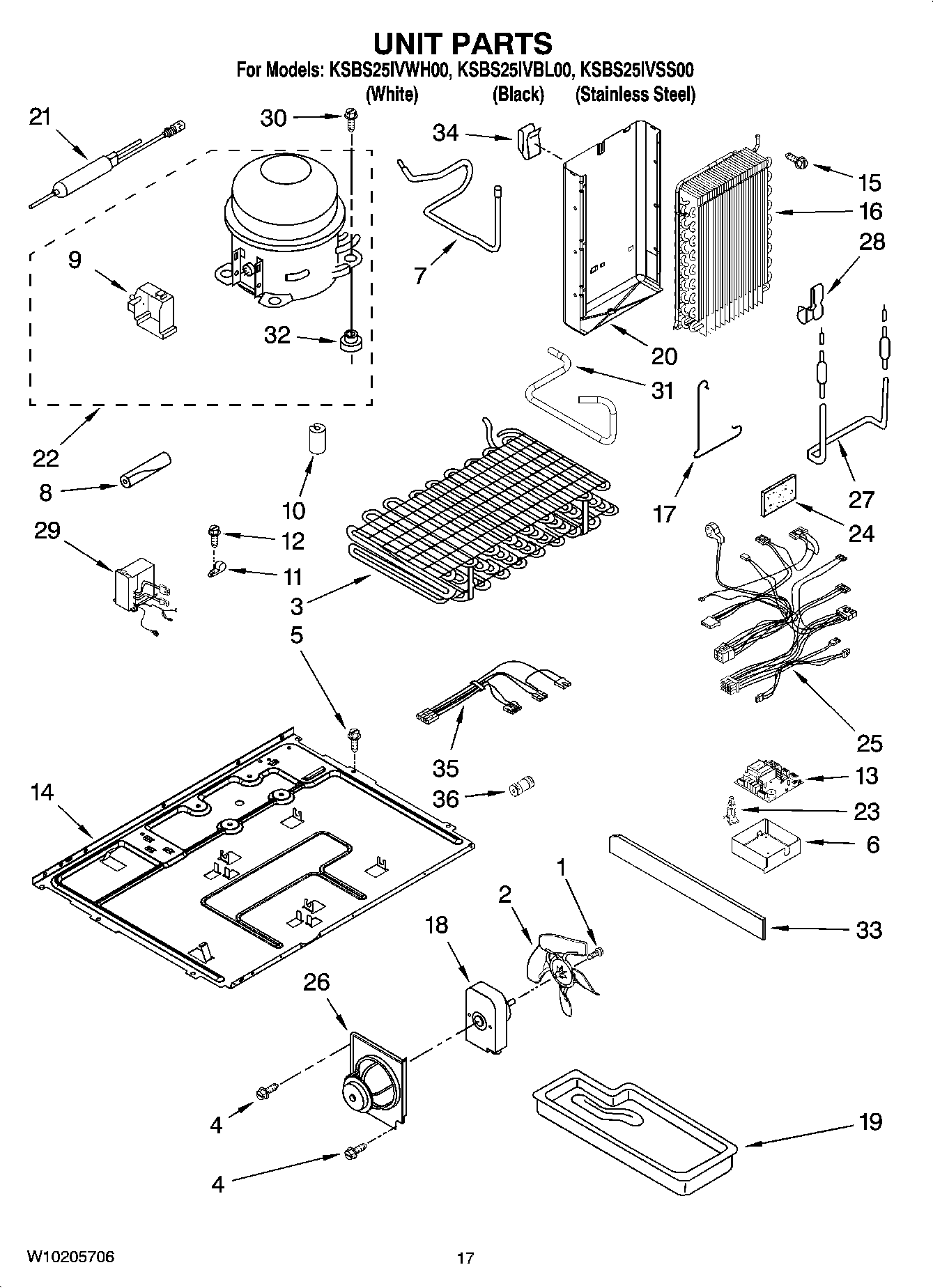

KSBS25IVWH00 11 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	WP978025 Whirlpool Refrigerator Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
	REFRIGERANT CHARGE 6.00 oz. (R-134A)
1	WP488234 Whirlpool Air Conditioner Screw
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W10193018 Whirlpool Refrigerator Condenser
4	8281197 Whirlpool Refrigerator Screw
5	3400524 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	2215676 Whirlpool Refrigerator Terminal Cover
10	W10852725 Whirlpool Refrigerator Grommet
11	W11456069 Whirlpool Refrigerator Clamp
12	WPW10141625 Whirlpool Refrigerator Screw Assembly
13	W10219463 Whirlpool Control Board + Core
14	Baseplate
15	WP489478 Whirlpool Refrigerator Screw
16	WP2188823 Whirlpool Refrigerator Evaporator
17	Clamp
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	Tray, Evaporator
20	SHIELD, HEAT
21	WPW10143759 Whirlpool Dryer Filter
22	W10276644 Whirlpool Refrigerator Compressor
23	2223800 Whirlpool Refrigerator Spacer
24	W11553819 Whirlpool Refrigerator Insulation
25	Harness, Main Control
26	BRACKET, FAN MOUNTING
27	Heater, Defrost
28	W11623163 Whirlpool Refrigerator Clip
29	WPW10154805 Whirlpool Refrigerator Inverter Box
31	Tube, Discharge
32	WP4387558 Whirlpool Refrigerator Compressor Grommet
32	876811 Whirlpool Grommet
33	2223394 Whirlpool Extension
34	Clip, Heat Shield
35	2187737 Whirlpool Refrigerator Wire Harness
36	WPW10334458 Whirlpool Refrigerator Connector
