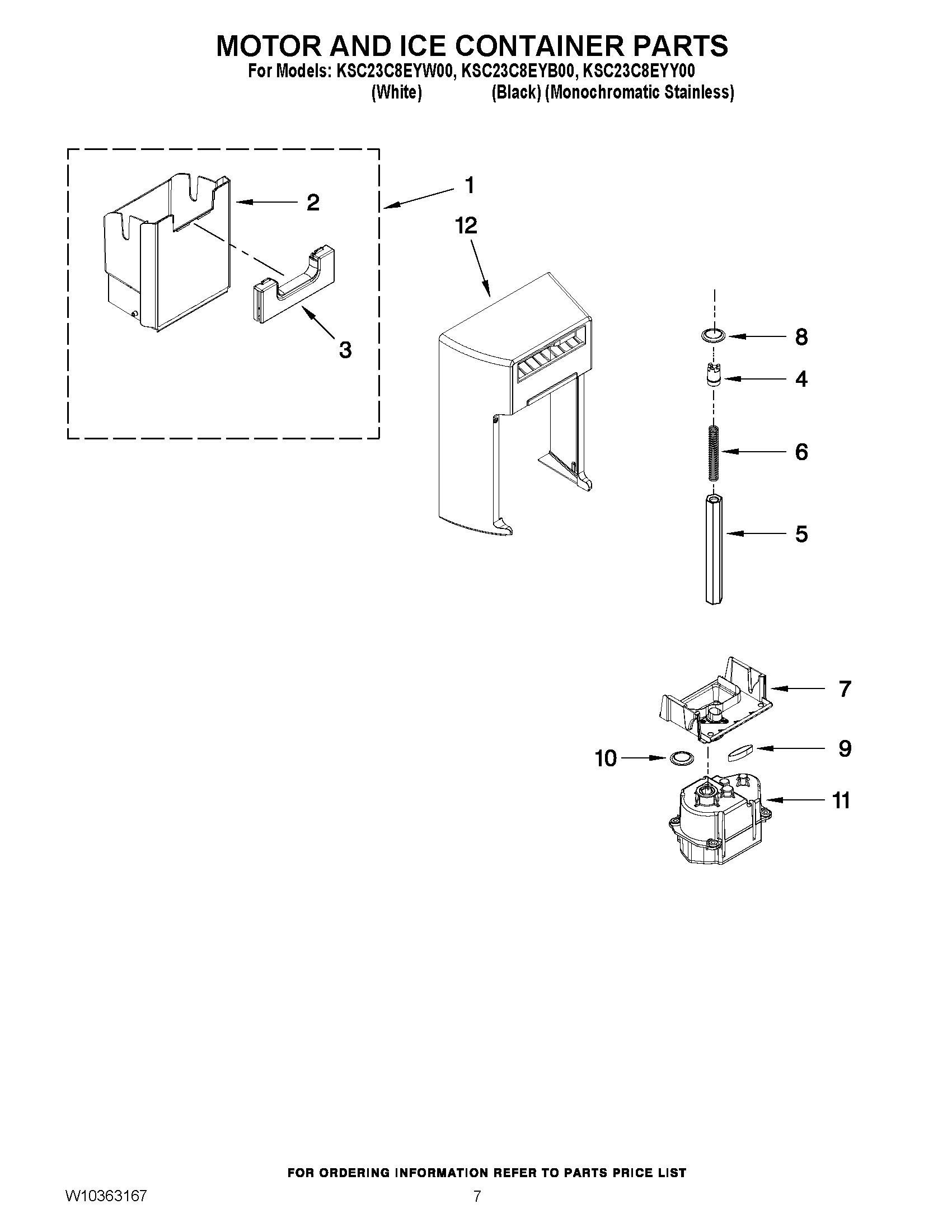

KSC23C8EYB00 05 – MOTOR AND ICE CONTAINER PARTS

KSC23C8EYB00 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KSC23C8EYB00 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
2W10859386 Whirlpool Refrigerator Ice Bin
3W11652042 Whirlpool Bin Latch
4WP2220458 Whirlpool Drive Cam
5WPW10258544 Whirlpool Refrigerator Shaft
6W10852956 Whirlpool Refrigerator Spring
7CHUTE
8WP2198628 Whirlpool Door Seal
9WPW10291905 Whirlpool Seal
10WP2212370 Whirlpool Washer
11WP2323603 Whirlpool Refrigerator Motor
12WPW10287594 Whirlpool Refrigerator Front Cover
100W11347840 Whirlpool Refrigerator Ice Container
