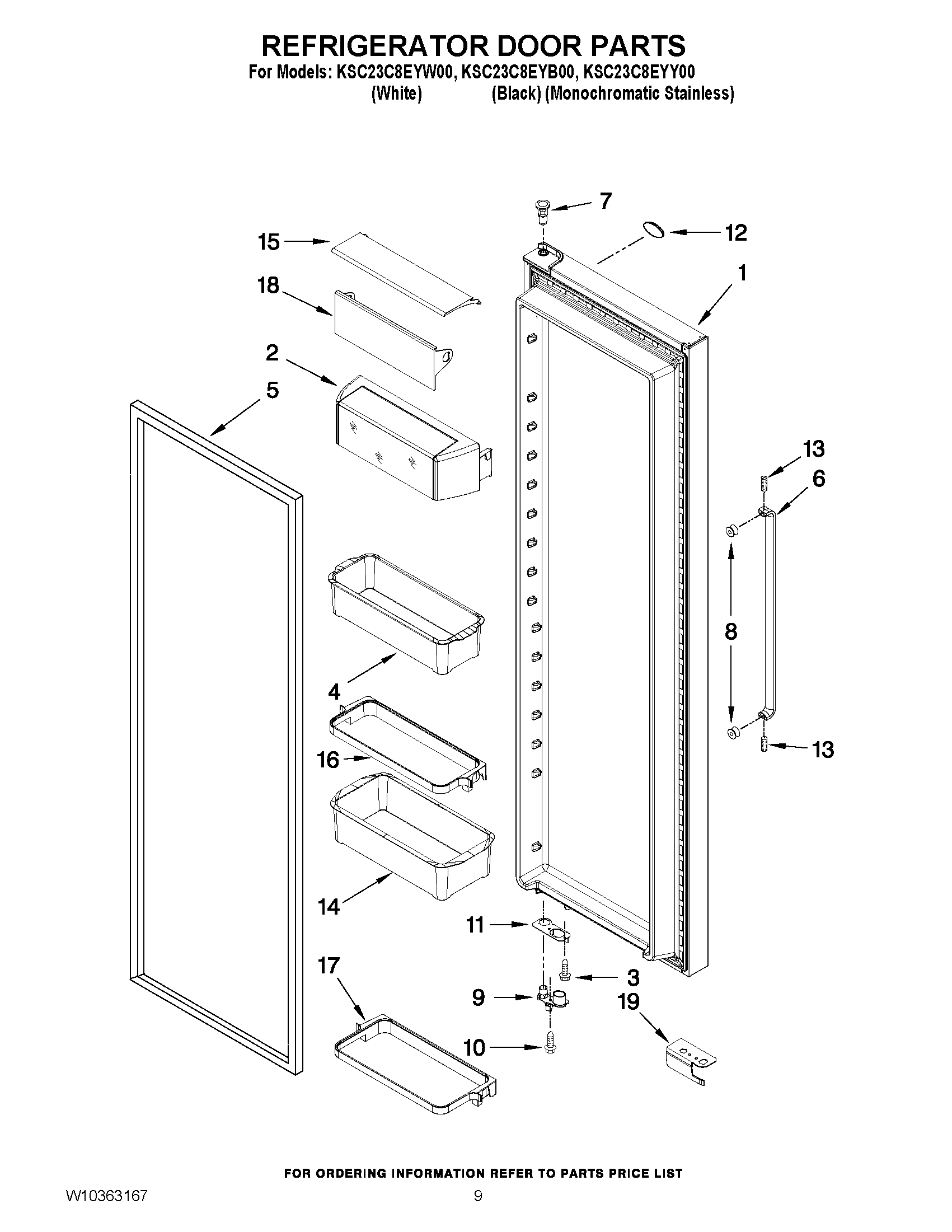

KSC23C8EYB00 06 – REFRIGERATOR DOOR PARTS

KSC23C8EYB00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSC23C8EYB00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5W10355582 Whirlpool Refrigerator Door Gasket
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5WPW10249912 Whirlpool Refrigerator FIP Gasket
6WPW10314517K Whirlpool Refrigerator Handle
6HANDLE, DOOR (BLACK)
6WPW10314515 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
9WPW10257201 Whirlpool Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10243392 Whirlpool Dishwasher Nameplate
12WPW10243391 Whirlpool Refrigerator Nameplate
12WPW10243393 Whirlpool Dishwasher Nameplate
13WP3400203 Whirlpool Screw
14WPW10316457 Whirlpool Refrigerator Gallon Door Bin
15WPW10316883 Whirlpool Refrigerator Door Compressor
16WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
17WPW10494334 Whirlpool Bin Frame
18WPW10316885 Whirlpool Refrigerator Compressor Door
19W11661847 Whirlpool Wire Cover
19W10789144 Whirlpool Refrigerator Wire Cover
19W10257216 Whirlpool Refrigerator Wire Cover
