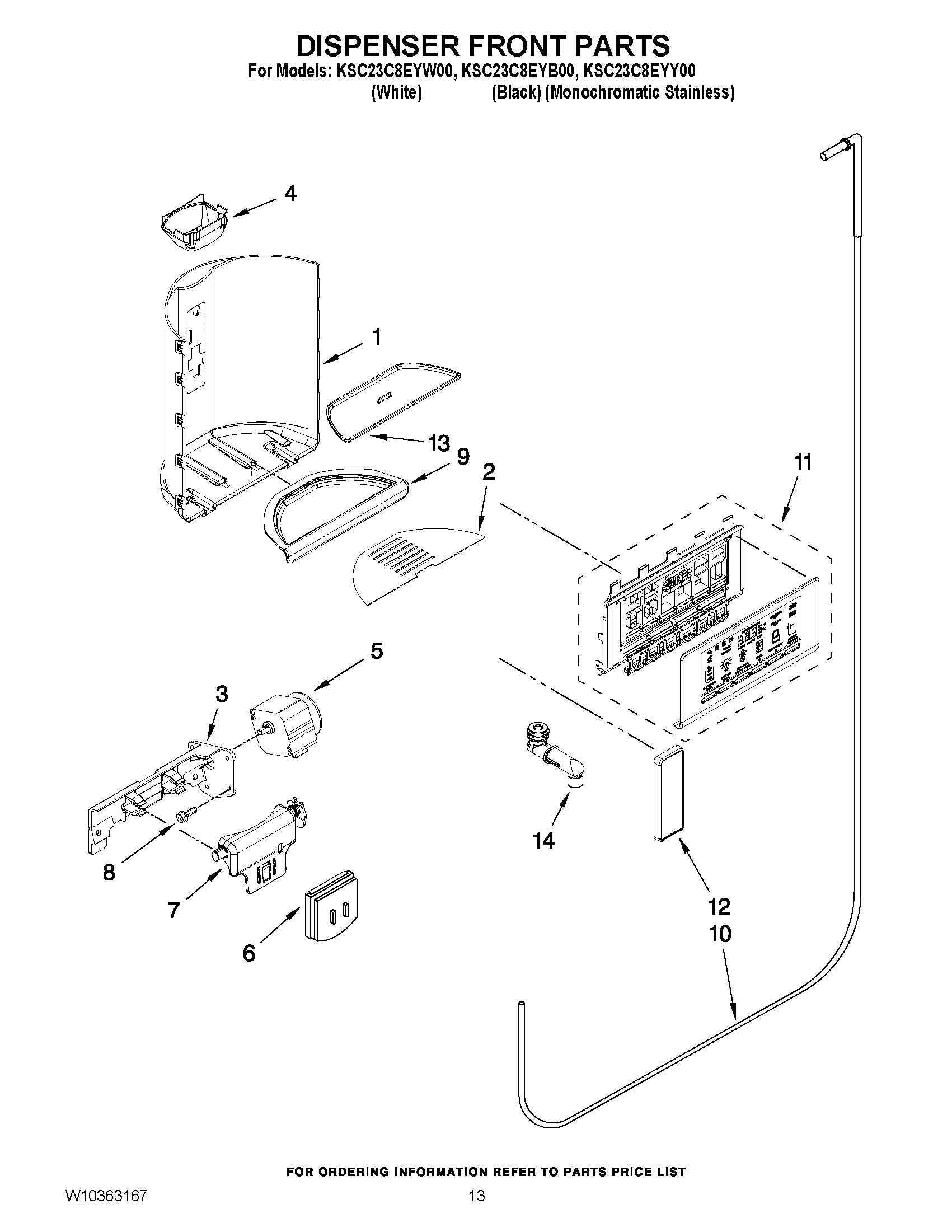

KSC23C8EYB00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10317270 Whirlpool Refrigerator Grille
3	DOOR-ICE
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W10346235 Whirlpool Refrigerator Chute Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	W10317264 Whirlpool Refrigerator Drip Tray
10	WPW10386778 Whirlpool Refrigerator Water Tube
11	WPW10393881-includeCORE Whirlpool WPW10393881 Refrigerator Electronic Control Board + Core
11	ELECTRONIC CONTROL ASSY (BLACK)
12	W11561037 Whirlpool Refrigerator Pad
12	W10317250 Whirlpool Refrigerator Pad
12	WPW10346924 Whirlpool Refrigerator Pad
13	W10317274 Whirlpool Drip Tray
13	W10317275 Whirlpool Refrigerator Drip Tray
13	W10859920 Whirlpool Refrigerator Drip Tray
14	SPIGOT-BODY ASSY
