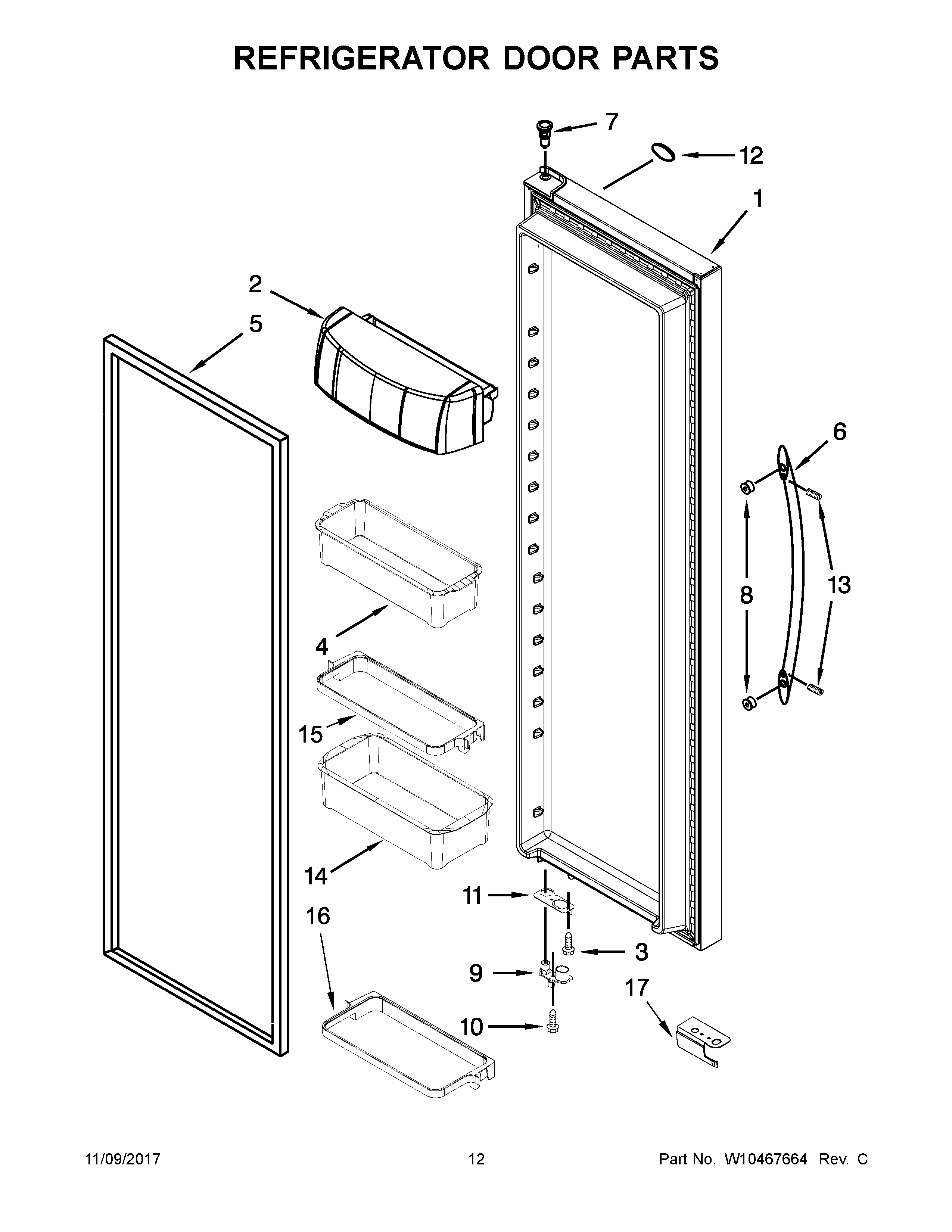

KSC23C8EYB02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
1B	REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
2	WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3	SCREW
4	WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5	WPW10247884 Whirlpool Refrigerator FIP Gasket
5A	WPW10249912 Whirlpool Refrigerator FIP Gasket
5B	W10355582 Whirlpool Refrigerator Door Gasket
6B	WPW10314517K Whirlpool Refrigerator Handle
6	WPW10314515 Whirlpool Refrigerator Handle
6A	HANDLE, DOOR (BLACK)
7	WP2182181 Whirlpool Refrigerator Thimble
8	WPW10661886 Whirlpool Refrigerator Door Handle Screw
9A	WPW10257201 Whirlpool Door Closing Cam
9	WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9B	WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10	WPW10296804 Whirlpool Refrigerator Screw
11	W11037957 Whirlpool Refrigerator Bracket
12	WPW10243393 Whirlpool Dishwasher Nameplate
12A	WPW10243392 Whirlpool Dishwasher Nameplate
12B	WPW10243391 Whirlpool Refrigerator Nameplate
13	WP3400203 Whirlpool Screw
14	WPW10316457 Whirlpool Refrigerator Gallon Door Bin
15	WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
16	WPW10494334 Whirlpool Bin Frame
17A	W10789145 Whirlpool Refrigerator Wire Cover
17B	W11661847 Whirlpool Wire Cover
17	W10789144 Whirlpool Refrigerator Wire Cover
