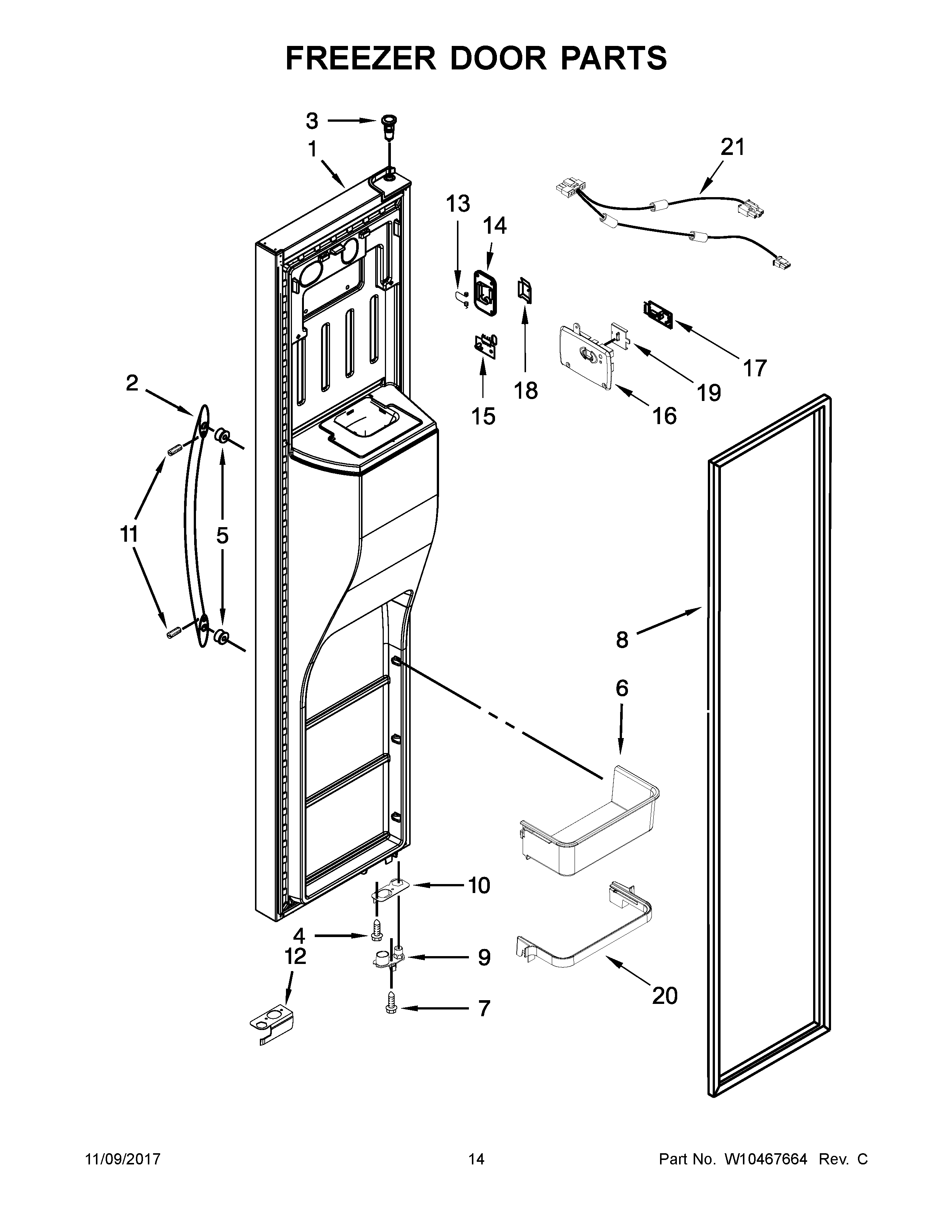

KSC23C8EYB02 08 – FREEZER DOOR PARTS

KSC23C8EYB02 08 – FREEZER DOOR PARTS

Written by

in

KSC23C8EYB02 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BFREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1AFREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2BWPW10314517K Whirlpool Refrigerator Handle
2WPW10314515 Whirlpool Refrigerator Handle
2AHANDLE, DOOR (BLACK)
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8WPW10247885 Whirlpool Door Gasket
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
9BWPW10257206 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11WP3400203 Whirlpool Screw
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
13WP2198635 Whirlpool Refrigerator Spring
14W10258502 Whirlpool Refrigerator Cover
15W10870822 Whirlpool Refrigerator Electronic Control Board
16W10363396 Whirlpool Refrigerator Cover
17W10898445 Whirlpool Refrigerator Electronic Control Board + Core
18FLIPPER
19W10258540 Whirlpool Refrigerator Slide
20WPW10494336 Whirlpool Refrigerator Bin Frame
21W10411699 Whirlpool Refrigerator Wire Harness
