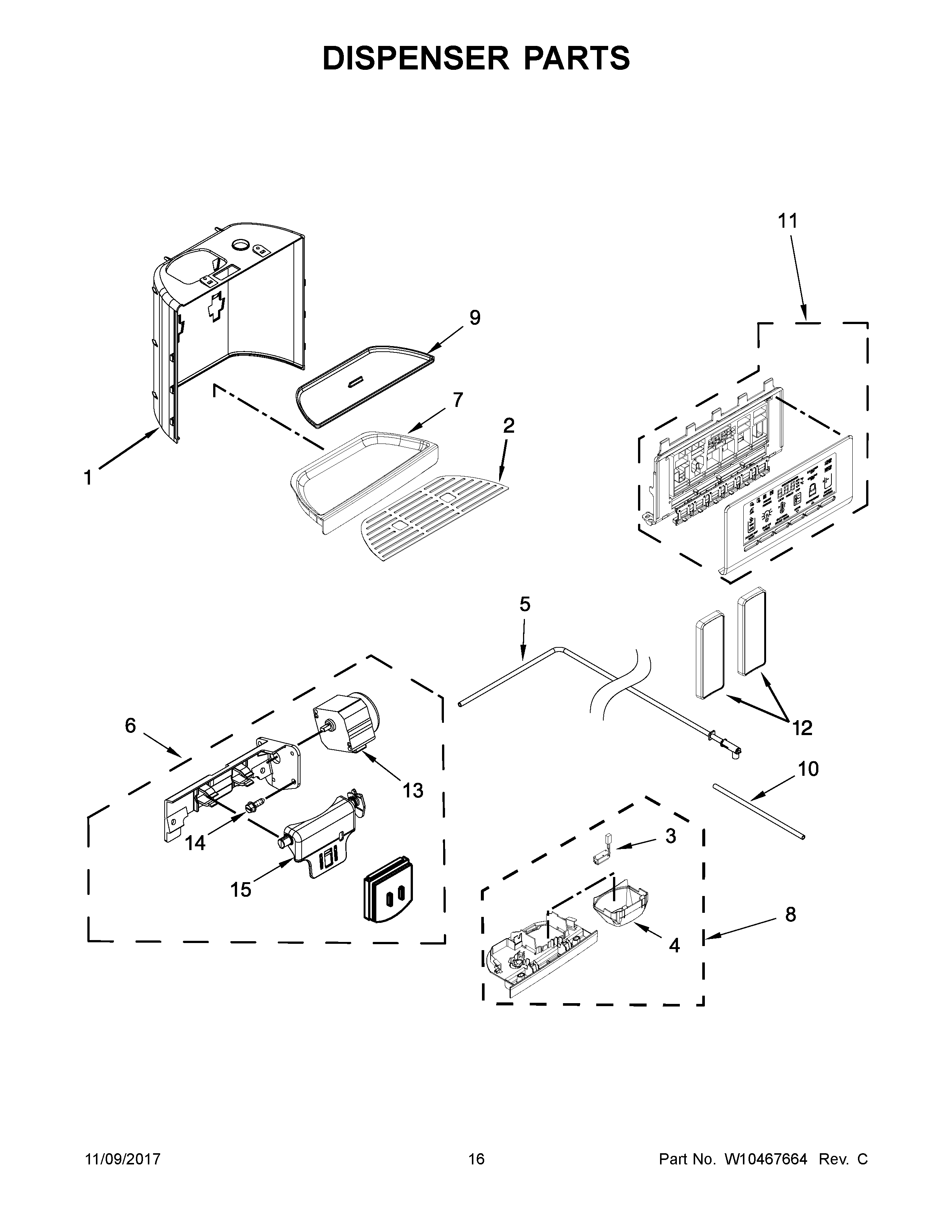

KSC23C8EYB02 09 – DISPENSER PARTS

KSC23C8EYB02 09 – DISPENSER PARTS

Written by

in

KSC23C8EYB02 09 – DISPENSER PARTS

Products

PositionProduct
1AW10317259 Whirlpool Refrigerator Separator
1W10317258 Whirlpool Refrigerator Separator
1BW10317255 Whirlpool Refrigerator Separator
2WPW10317270 Whirlpool Refrigerator Grille
3W11290115 Whirlpool Refrigerator Light
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10386778 Whirlpool Refrigerator Water Tube
6DOOR-ICE
7W10317274 Whirlpool Drip Tray
7AW10317275 Whirlpool Refrigerator Drip Tray
7BW10859920 Whirlpool Refrigerator Drip Tray
8W10353593 Whirlpool Refrigerator Separator
9AW10317265 Whirlpool Refrigerator Drip Tray
9W10317264 Whirlpool Refrigerator Drip Tray
9BWPW10317261 Whirlpool Refrigerator Drip Tray
10W11620106 Whirlpool Water Tube
11AW11324963-includeCORE Whirlpool W11324963 Refrigerator Electronic Control Board + Core
11BWPW10623106-includeCORE Whirlpool WPW10623106 Refrigerator Electronic Control Board + Core
12BWPW10346924 Whirlpool Refrigerator Pad
12AW11561037 Whirlpool Refrigerator Pad
12W10317250 Whirlpool Refrigerator Pad
13WPW10205978 Whirlpool Motor
14WP4449745 Whirlpool Screw
15WPW10346124 Whirlpool Refrigerator Support
