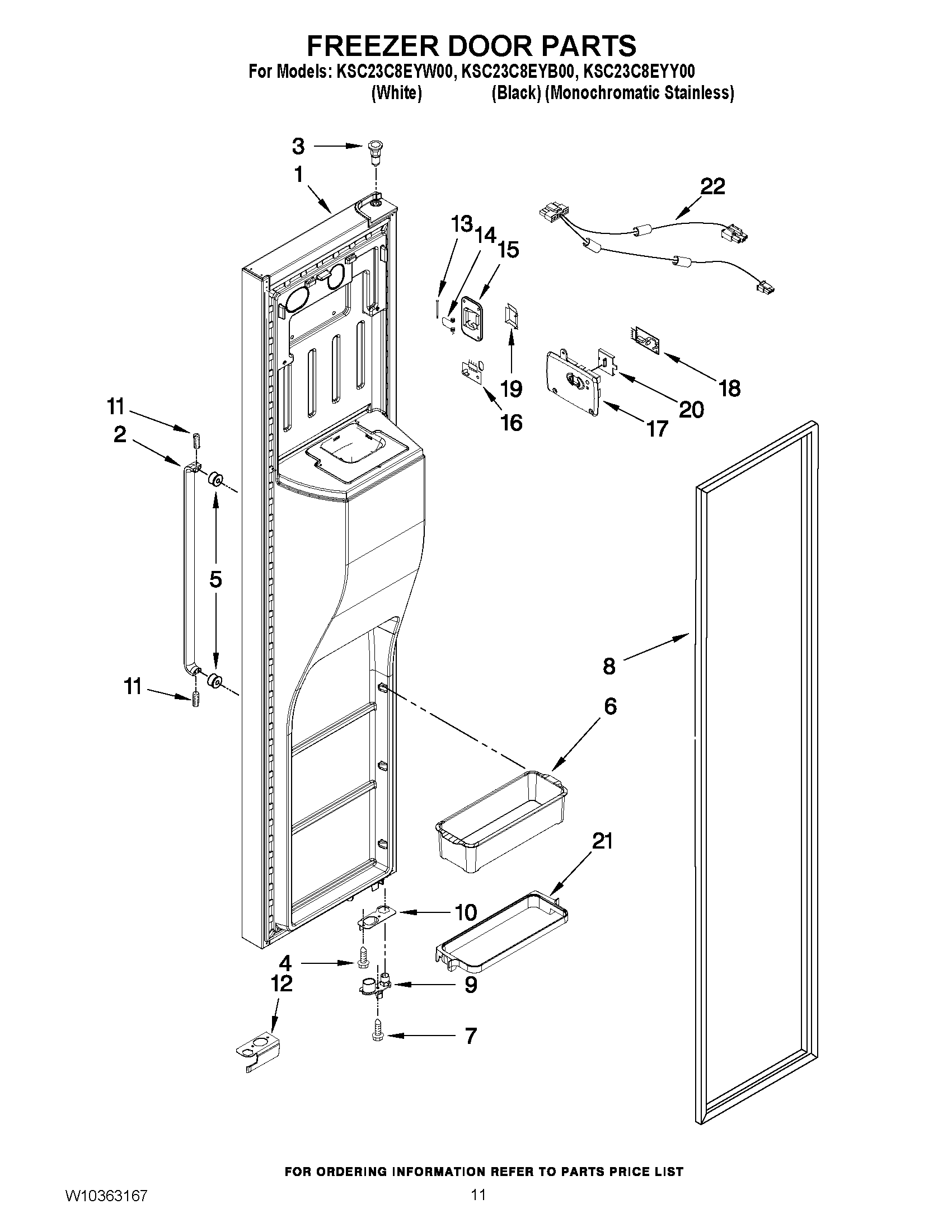

KSC23C8EYW00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1	FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2	WPW10314517K Whirlpool Refrigerator Handle
2	WPW10314515 Whirlpool Refrigerator Handle
2	HANDLE, DOOR (BLACK)
3	WP2182181 Whirlpool Refrigerator Thimble
4	WPW10296804 Whirlpool Refrigerator Screw
5	WPW10170540 Whirlpool Screw
6	WPW10434529 Whirlpool Refrigerator Bin
7	SCREW
8	WPW10247885 Whirlpool Door Gasket
8	WPW10249913 Whirlpool Refrigerator FIP Gasket
8	WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9	W11607100 Whirlpool Refrigerator Thimble Cam
9	WPW10257206 Whirlpool Refrigerator Door Cam
9	WPW10248015 Whirlpool Refrigerator Door Cam
10	W11293380 Whirlpool Refrigerator Bracket
11	WP3400203 Whirlpool Screw
12	WPW10632062 Whirlpool Refrigerator Wire Cover
12	W10632059 Whirlpool Refrigerator Wire Cover
12	W10632060 Whirlpool Refrigerator Wire Cover
13	WP2198634 Whirlpool Door Pin
14	WP2198635 Whirlpool Refrigerator Spring
15	W10258502 Whirlpool Refrigerator Cover
16	W10870822 Whirlpool Refrigerator Electronic Control Board
17	COVER, RECEIVER
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	FLIPPER
20	W10258540 Whirlpool Refrigerator Slide
21	WPW10494336 Whirlpool Refrigerator Bin Frame
22	W10242369 Whirlpool Refrigerator Wire Harness
