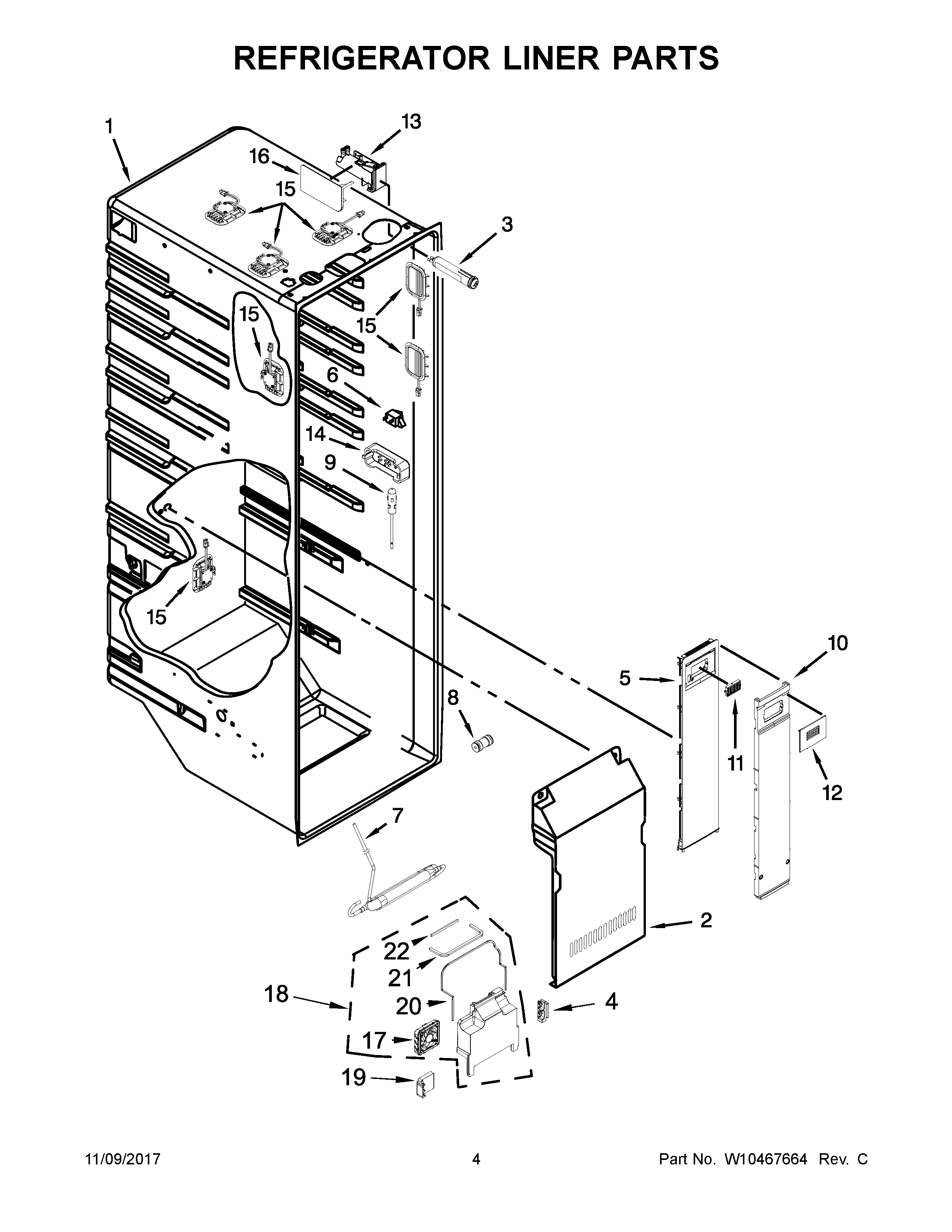

KSC23C8EYW02 03 – REFRIGERATOR LINER PARTS

KSC23C8EYW02 03 – REFRIGERATOR LINER PARTS

Written by

in

KSC23C8EYW02 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10859809 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10837626 Whirlpool Refrigerator Support
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10W10156707 Whirlpool Refrigerator Air Tower
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W10341548 Whirlpool Refrigerator Support
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16W11501035 Whirlpool Refrigerator Filter Cover
17WPW10439624 Whirlpool Refrigerator Evaporator Motor
18WPW10453428 Whirlpool Refrigerator Fan Scroll
19W11028224 Whirlpool Refrigerator Support
20W11702233 Whirlpool Gasket
21W11676537 Whirlpool Gasket
22W11676538 Whirlpool Gasket
