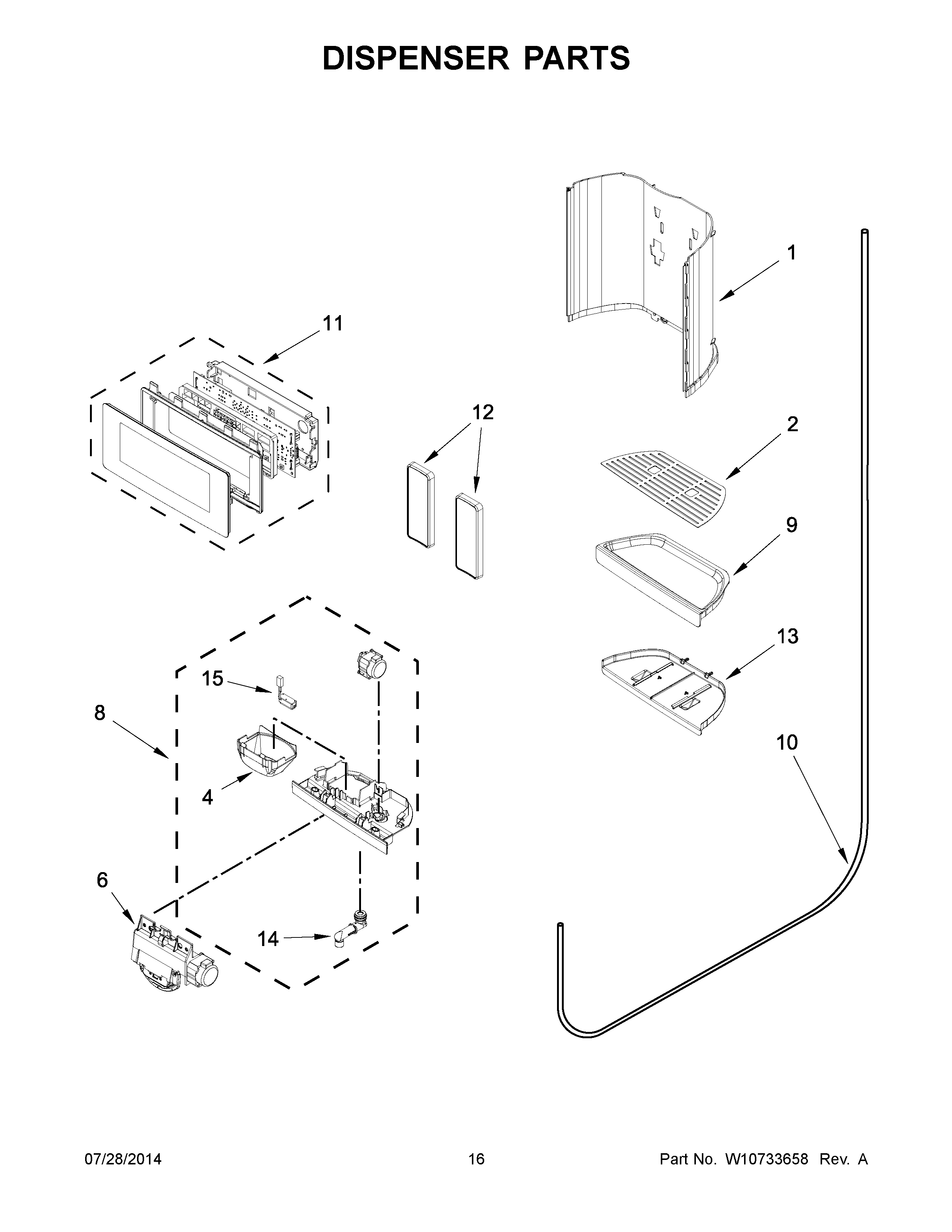

KSC23C8EYY03 09 – DISPENSER PARTS

KSC23C8EYY03 09 – DISPENSER PARTS

Written by

in

KSC23C8EYY03 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10317270 Whirlpool Refrigerator Grille
4WPW10435760 Whirlpool Refrigerator Ice Guide
6DOOR-ICE
8W10353593 Whirlpool Refrigerator Separator
9WPW10317261 Whirlpool Refrigerator Drip Tray
10WPW10386778 Whirlpool Refrigerator Water Tube
11WPW10623106-includeCORE Whirlpool WPW10623106 Refrigerator Electronic Control Board + Core
12WPW10346924 Whirlpool Refrigerator Pad
13W10859920 Whirlpool Refrigerator Drip Tray
14SPIGOT-BODY ASSY
15W11290115 Whirlpool Refrigerator Light
