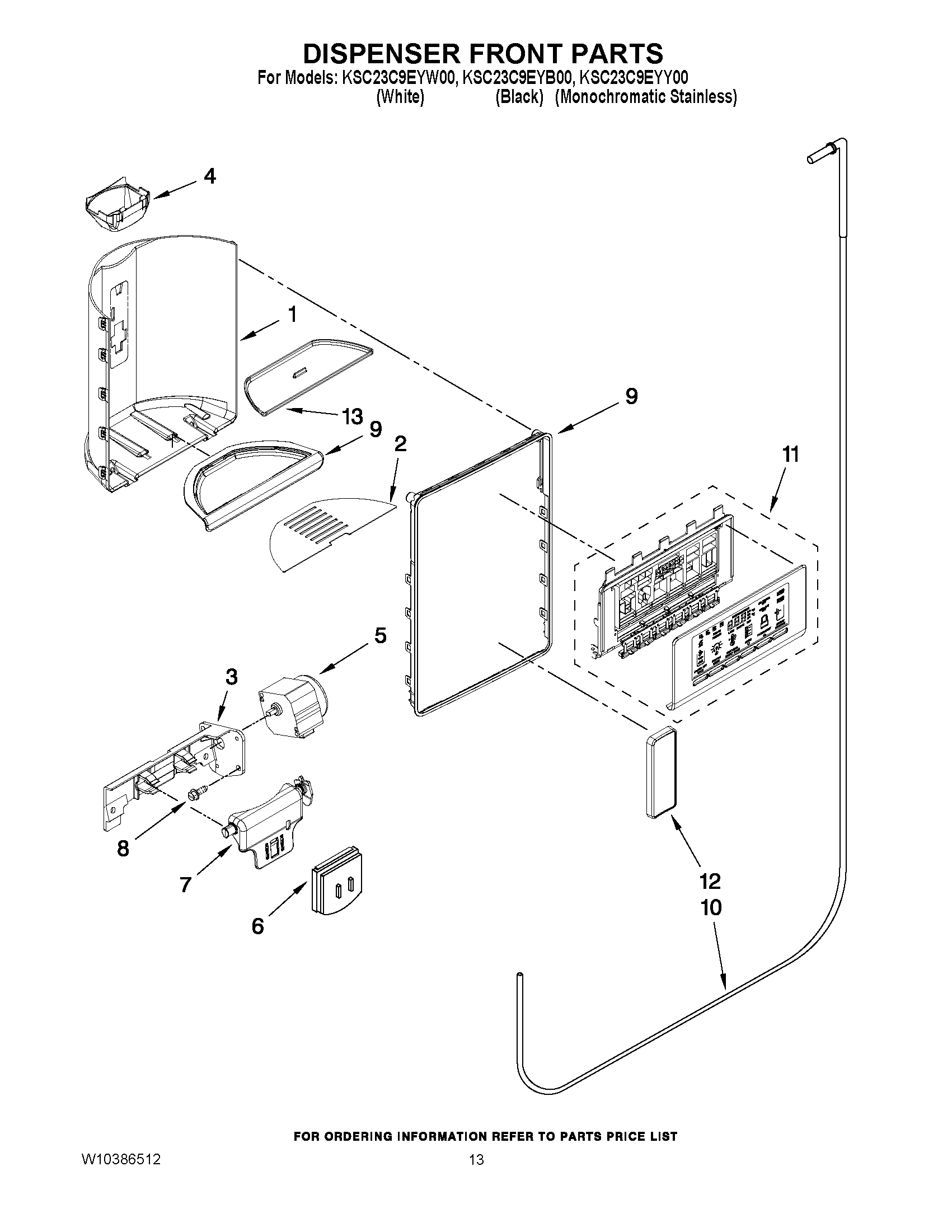

KSC23C9EYB00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10317270 Whirlpool Refrigerator Grille
3DOOR-ICE
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10317264 Whirlpool Refrigerator Drip Tray
10WPW10386778 Whirlpool Refrigerator Water Tube
11ELECTRONIC CONTROL ASSY (BLACK)
11WPW10393881-includeCORE Whirlpool WPW10393881 Refrigerator Electronic Control Board + Core
12WPW10346924 Whirlpool Refrigerator Pad
12W11561037 Whirlpool Refrigerator Pad
12W10317250 Whirlpool Refrigerator Pad
13W10317274 Whirlpool Drip Tray
13W10317275 Whirlpool Refrigerator Drip Tray
13W10859920 Whirlpool Refrigerator Drip Tray
