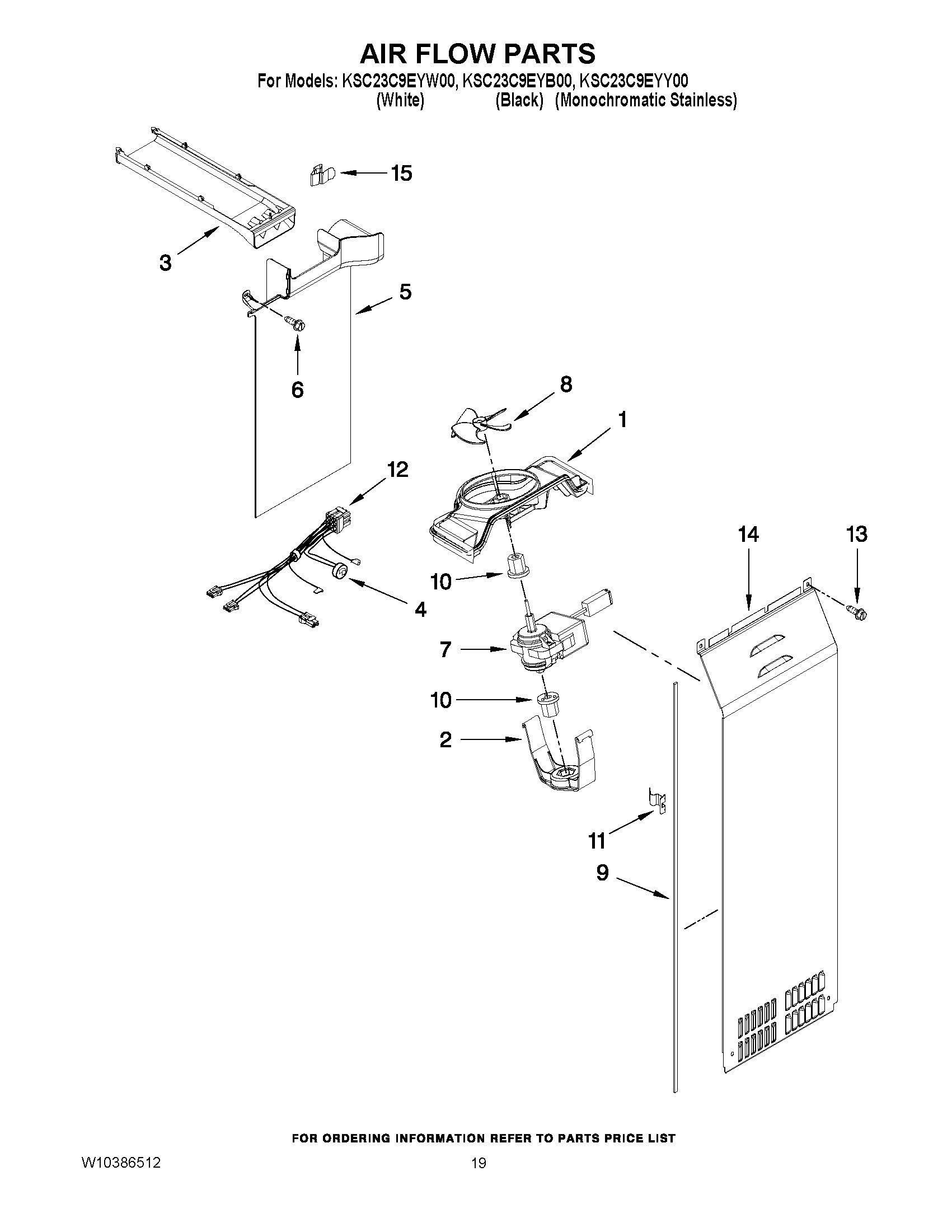

KSC23C9EYB00 11 – AIR FLOW PARTS

KSC23C9EYB00 11 – AIR FLOW PARTS

Written by

in

KSC23C9EYB00 11 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
2W11671527 Whirlpool Retainer Assembly
3AIR DUCT, UPPER
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5DUCT-AIR
6WP489478 Whirlpool Refrigerator Screw
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9W10240370 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
12W10688625 Whirlpool Refrigerator Wire Harness
13WP693995 Whirlpool Screw
14W10297243 Whirlpool Refrigerator Evaporator Cover
15W11232019 Whirlpool Refrigerator Clip
