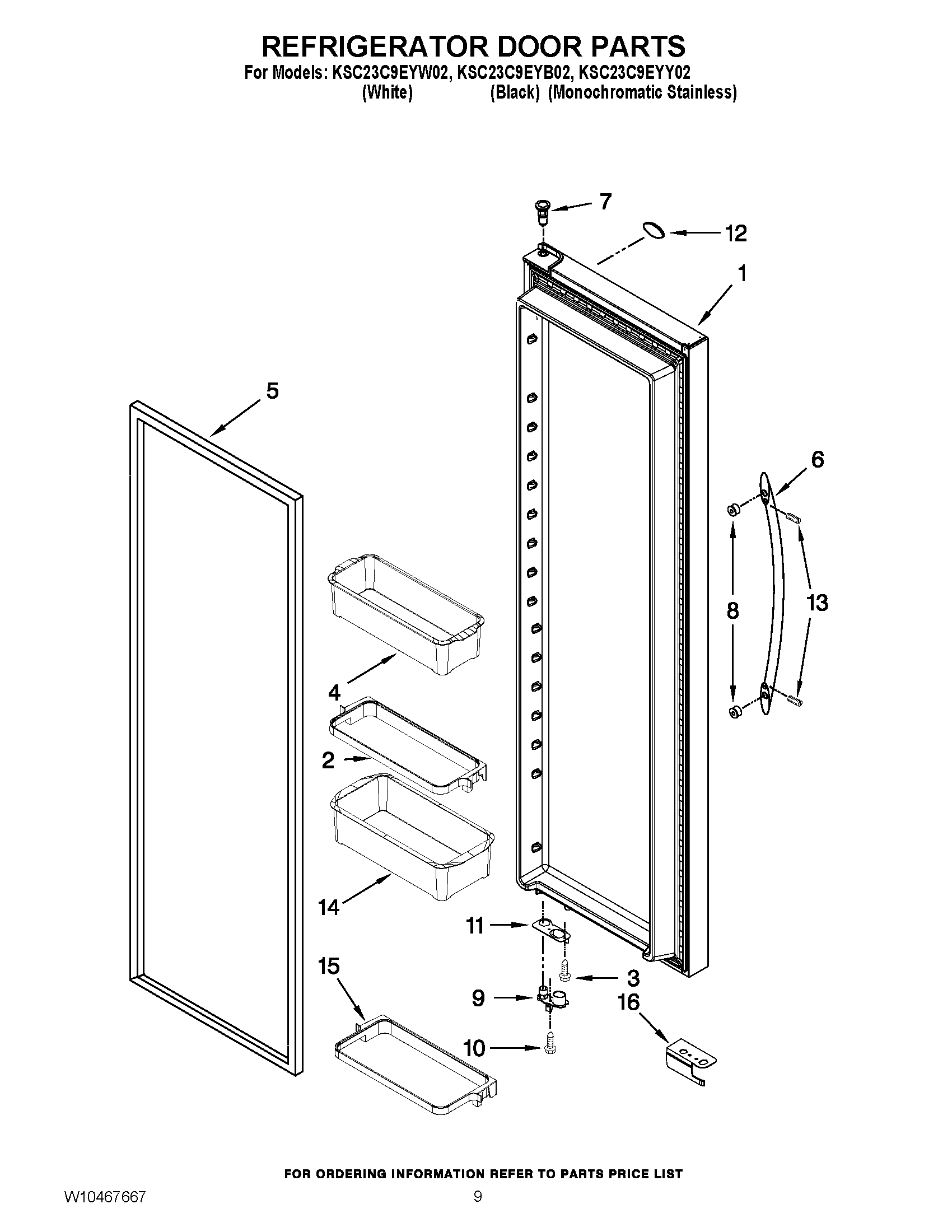

KSC23C9EYB02 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
2	WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
3	SCREW
4	WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5	W10355582 Whirlpool Refrigerator Door Gasket
5	WPW10247884 Whirlpool Refrigerator FIP Gasket
5	WPW10249912 Whirlpool Refrigerator FIP Gasket
6	HANDLE, DOOR (BLACK)
6	WPW10314515 Whirlpool Refrigerator Handle
6	WPW10314517K Whirlpool Refrigerator Handle
7	WP2182181 Whirlpool Refrigerator Thimble
8	WPW10170540 Whirlpool Screw
9	WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9	WPW10257201 Whirlpool Door Closing Cam
9	WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10	WPW10296804 Whirlpool Refrigerator Screw
11	W11037957 Whirlpool Refrigerator Bracket
12	WPW10243393 Whirlpool Dishwasher Nameplate
13	WP3400203 Whirlpool Screw
14	WPW10316457 Whirlpool Refrigerator Gallon Door Bin
15	WPW10494334 Whirlpool Bin Frame
16	W11661847 Whirlpool Wire Cover
16	W10789144 Whirlpool Refrigerator Wire Cover
16	W10257216 Whirlpool Refrigerator Wire Cover
