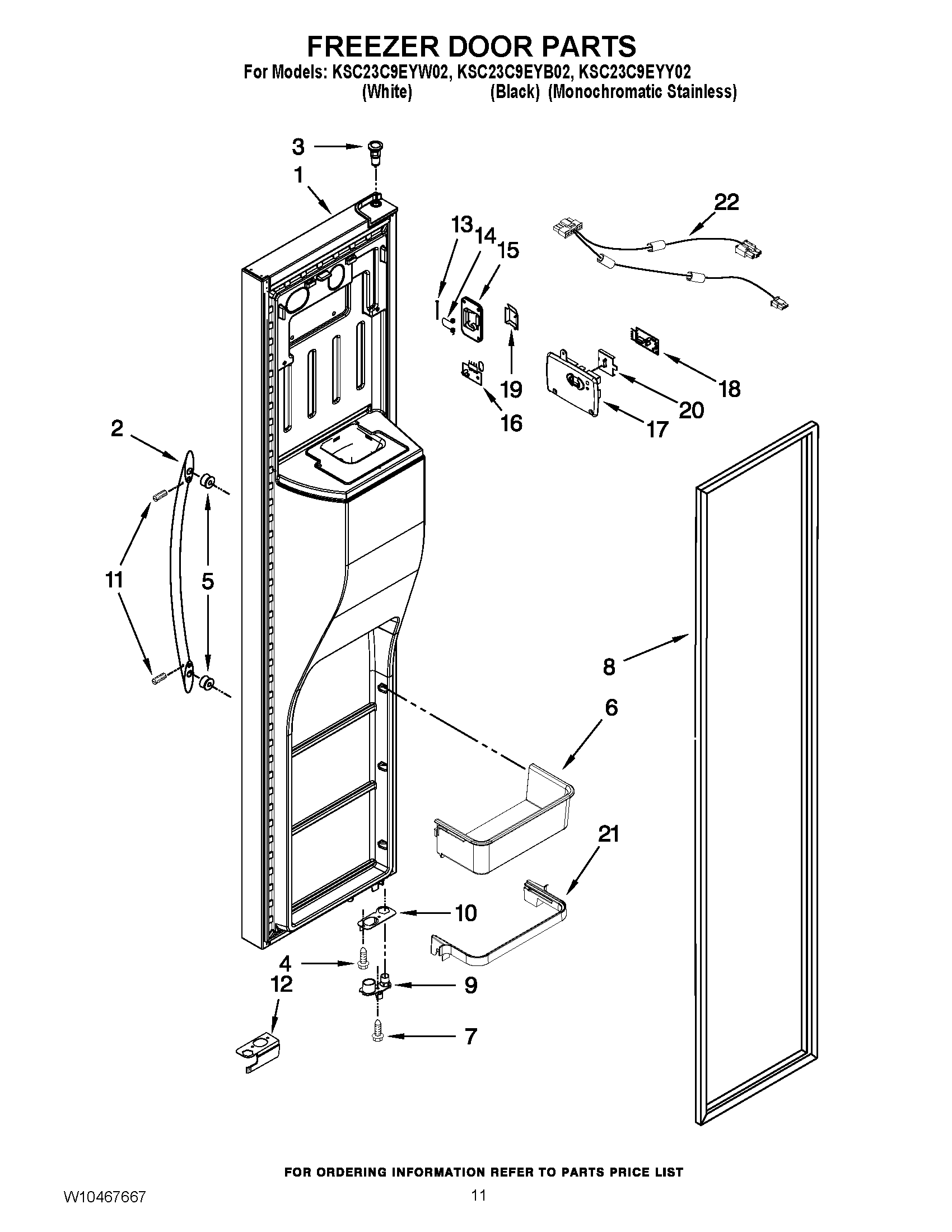

KSC23C9EYW02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2WPW10314517K Whirlpool Refrigerator Handle
2WPW10314515 Whirlpool Refrigerator Handle
2HANDLE, DOOR (BLACK)
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8WPW10247885 Whirlpool Door Gasket
8WPW10249913 Whirlpool Refrigerator FIP Gasket
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9W11607100 Whirlpool Refrigerator Thimble Cam
9WPW10257206 Whirlpool Refrigerator Door Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11WP3400203 Whirlpool Screw
12WPW10632062 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
12W10632060 Whirlpool Refrigerator Wire Cover
13WP2198634 Whirlpool Door Pin
14WP2198635 Whirlpool Refrigerator Spring
15W10258502 Whirlpool Refrigerator Cover
16W10870822 Whirlpool Refrigerator Electronic Control Board
17COVER, RECEIVER
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19FLIPPER
20W10258540 Whirlpool Refrigerator Slide
21WPW10494336 Whirlpool Refrigerator Bin Frame
22W10242369 Whirlpool Refrigerator Wire Harness
