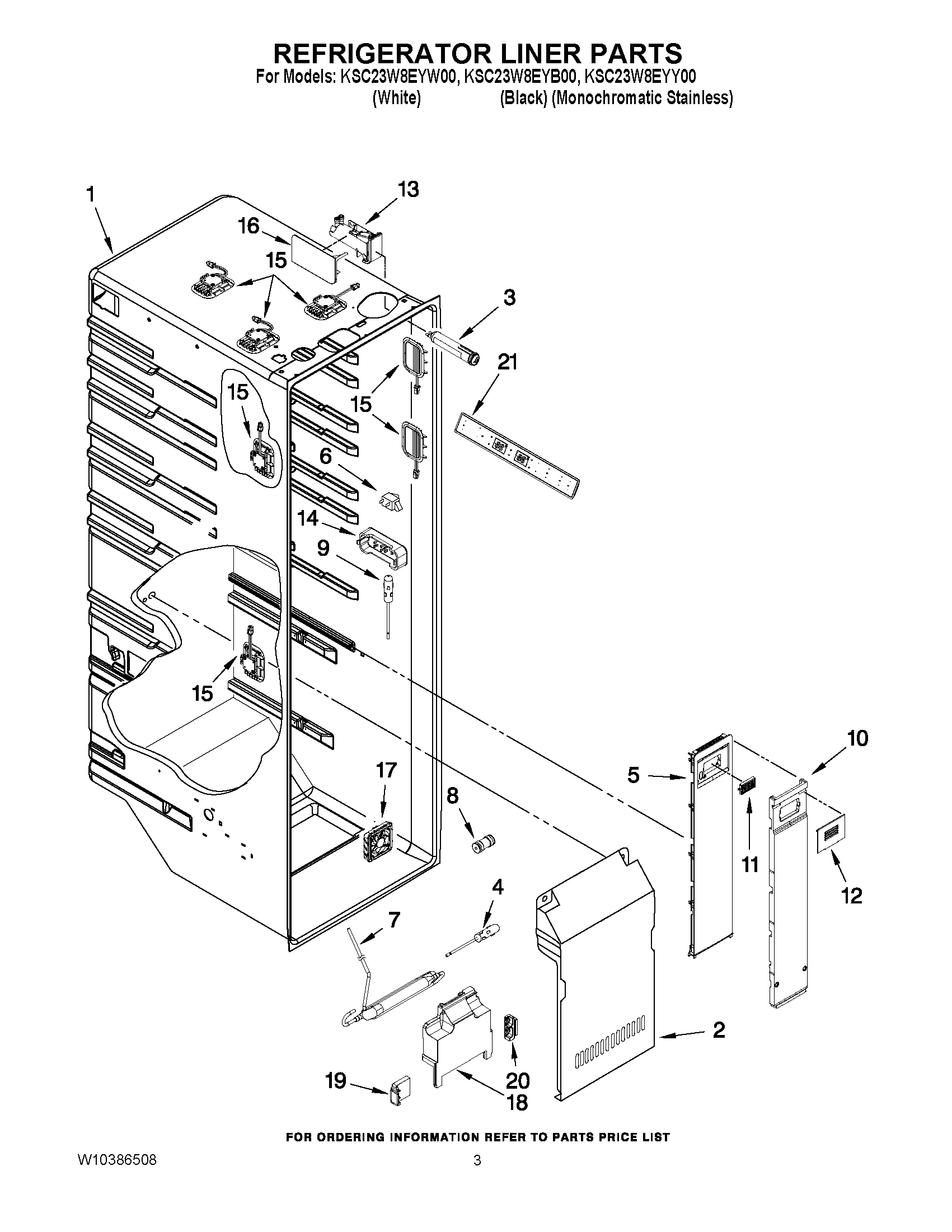

KSC23W8EYW00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10859809 Whirlpool Refrigerator Evaporator Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10316760 Whirlpool Thermistor Kit
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WPW10271543 Whirlpool Refrigerator Connector
9THERMISTOR
10TOWER, AIR
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12W10341548 Whirlpool Refrigerator Support
13WPW10341545 Whirlpool Refrigerator Housing
14COVER, THERMISTOR
15MODULE
16COVER, WATER FILTER
17WPW10439624 Whirlpool Refrigerator Evaporator Motor
18WPW10453428 Whirlpool Refrigerator Fan Scroll
19W11028224 Whirlpool Refrigerator Support
20W10837626 Whirlpool Refrigerator Support
21WPW10351438 Whirlpool Control Box
