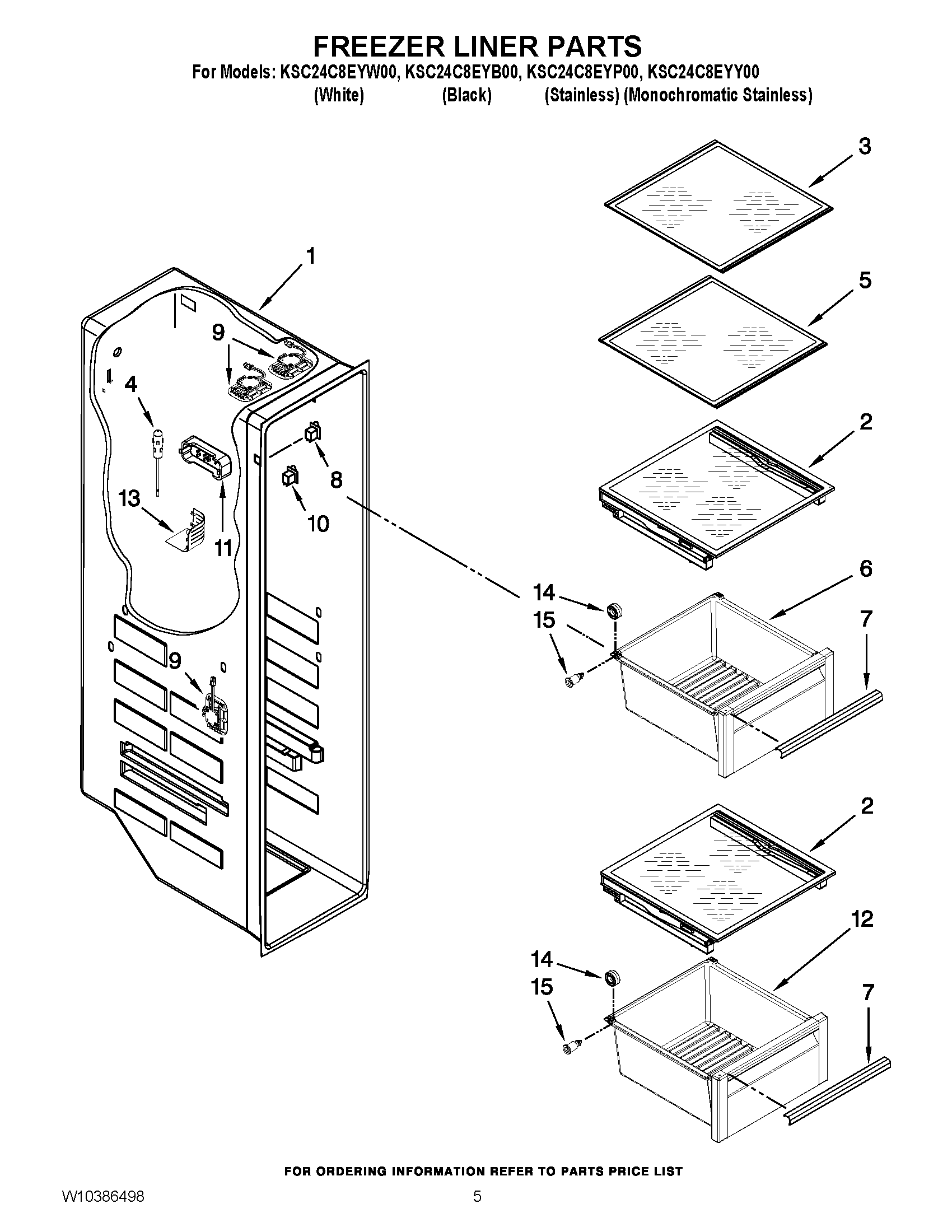

KSC24C8EYB00 04 – FREEZER LINER PARTS

KSC24C8EYB00 04 – FREEZER LINER PARTS

Written by

in

KSC24C8EYB00 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10362174 Whirlpool Refrigerator Cover
3W11217335 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5W11217336 Whirlpool Refrigerator Glass Shelf
6W10861754 Whirlpool Refrigerator Freezer Bin
7W10542018 Whirlpool Refrigerator Pan Trim
8W11123943 Whirlpool Refrigerator Switch
9MODULE
10W11396033 Whirlpool Refrigerator Rocker Switch
11WPW10425252 Whirlpool Refrigerator Cover
12W11607156 Whirlpool Refrigerator Freezer Bin
13W10260382 Whirlpool Refrigerator Cover
14W11164152 Whirlpool Drawer Roller
15WPW10257246 Whirlpool Refrigerator Axle
