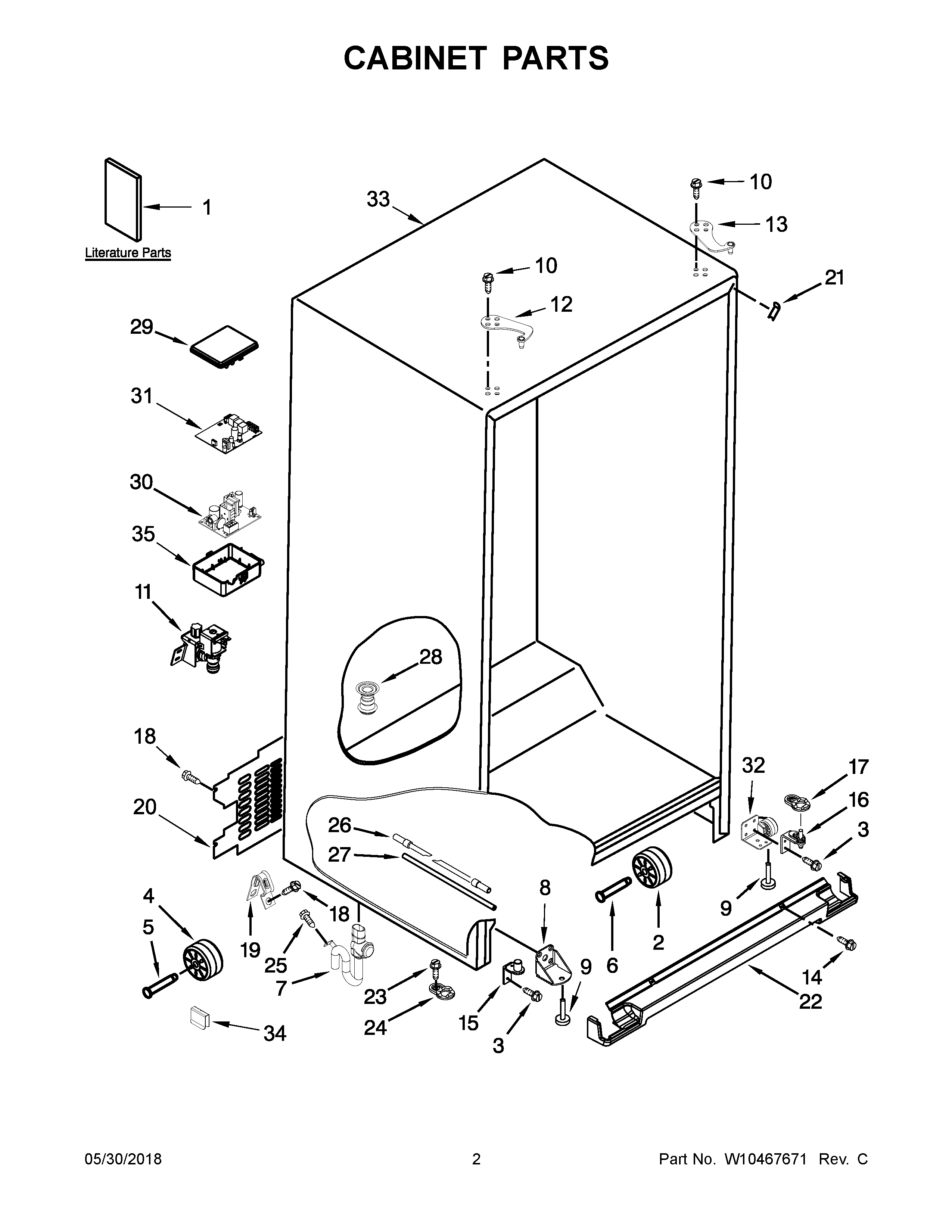

KSC24C8EYB02 02 – CABINET PARTS

Products

Position	Product
1A	USE & CARE GUIDE
1	SERVICE & WIRING SHEET
1B	ENERGY GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	W11519143 Whirlpool Refrigerator Extension
9	WPW10141622 Whirlpool Leveler
10	WPW10308750 Whirlpool Refrigerator Screw
11	VALVE-INLT REFR
12	W10673330 Whirlpool Refrigerator Door Hinge
12A	W10901052 Whirlpool Refrigerator Door Hinge
12B	W11590581 Whirlpool Refrigerator Door Hinge
13A	W11568758 Whirlpool Top Hinge
13B	HINGE-DOOR
13	W11573587 Whirlpool Refrigerator Door Hinge
14	WPW10142283 Whirlpool Refrigerator Screw
14A	WP98008545 Whirlpool Screw
14B	WPW10308489 Whirlpool Refrigerator Screw
15B	W11293374 Whirlpool Refrigerator Door Hinge
15A	W10249941 Whirlpool Refrigerator Door Hinge
15	W11293373 Whirlpool Refrigerator Door Hinge
16B	W11292872 Whirlpool Refrigerator Door Hinge
16	W11320488 Whirlpool Refrigerator Door Hinge
16A	W11311416 Whirlpool Refrigerator Door Hinge
17	W11311685 Whirlpool Refrigerator Door Cam
17B	W11311687 Whirlpool Closing Cam
17A	W11311686 Whirlpool Closing Cam
18	SCREW
19	549193 Whirlpool Refrigerator Power Clamp
20	WPW10333887 Whirlpool Refrigerator Unit Cover
21A	67003485 Whirlpool Refrigerator Corner Cover (Black)
21	12587703W Whirlpool Refrigerator Cover
21B	WP12587703AP Whirlpool Refrigerator Filler
22B	WPW10713153 Whirlpool Refrigerator Grille
22	WPW10713160 Whirlpool Refrigerator Grille
22A	WPW10713158 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24A	W10770895 Whirlpool Refrigerator Door Cam
24B	W10876191 Whirlpool Refrigerator Door Cam
24	W10876198 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279885 Whirlpool Refrigerator Water Tube
28	W10247979 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	WPW10226427 Whirlpool Refrigerator Electronic Control Board
31	WPW10235503-includeCORE Whirlpool WPW10235503 Refrigerator Electronic Control Board + Core
32	W11266052 Whirlpool Refrigerator Bracket
33	CABINET (NOT A SERVICEABLE PART)
34	W11545866 Whirlpool Refrigerator Clip
35	WPW10247993 Whirlpool Refrigerator Control Box
