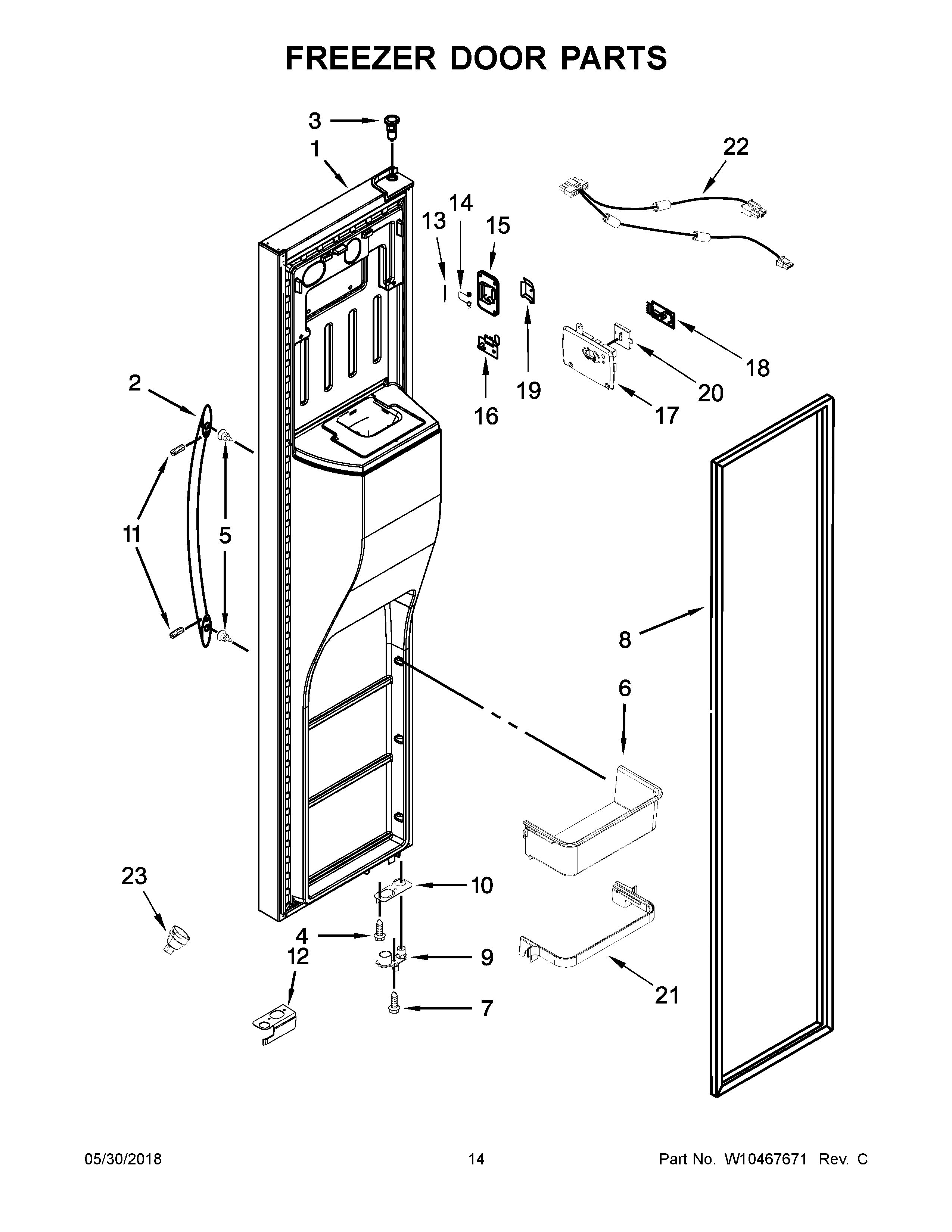

KSC24C8EYB02 08 – FREEZER DOOR PARTS

Products

Position	Product
1B	DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1A	DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1	DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2B	WPW10314517K Whirlpool Refrigerator Handle
2	WPW10314515 Whirlpool Refrigerator Handle
2A	HANDLE, DOOR (BLACK)
3	WP2182181 Whirlpool Refrigerator Thimble
4	WPW10296804 Whirlpool Refrigerator Screw
5	WPW10661886 Whirlpool Refrigerator Door Handle Screw
6	WPW10434529 Whirlpool Refrigerator Bin
7	SCREW
8	W11625001 Whirlpool Refrigerator FIP Gasket
8B	GASKET-FIP (AH)
8A	GASKET, DOOR (BLACK)
9	WPW10248015 Whirlpool Refrigerator Door Cam
9B	WPW10257206 Whirlpool Refrigerator Door Cam
9A	W11607100 Whirlpool Refrigerator Thimble Cam
10	W11293380 Whirlpool Refrigerator Bracket
11	WP3400203 Whirlpool Screw
12	W10632059 Whirlpool Refrigerator Wire Cover
12A	W10632060 Whirlpool Refrigerator Wire Cover
12B	WPW10632062 Whirlpool Refrigerator Wire Cover
13	WP2198634 Whirlpool Door Pin
14	WP2198635 Whirlpool Refrigerator Spring
15	W10258502 Whirlpool Refrigerator Cover
16	W10870822 Whirlpool Refrigerator Electronic Control Board
17	W10363396 Whirlpool Refrigerator Cover
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	FLIPPER
20	W10258540 Whirlpool Refrigerator Slide
21	WPW10494336 Whirlpool Refrigerator Bin Frame
22	W10411699 Whirlpool Refrigerator Wire Harness
23	W10258479 Whirlpool Refrigerator Cover
