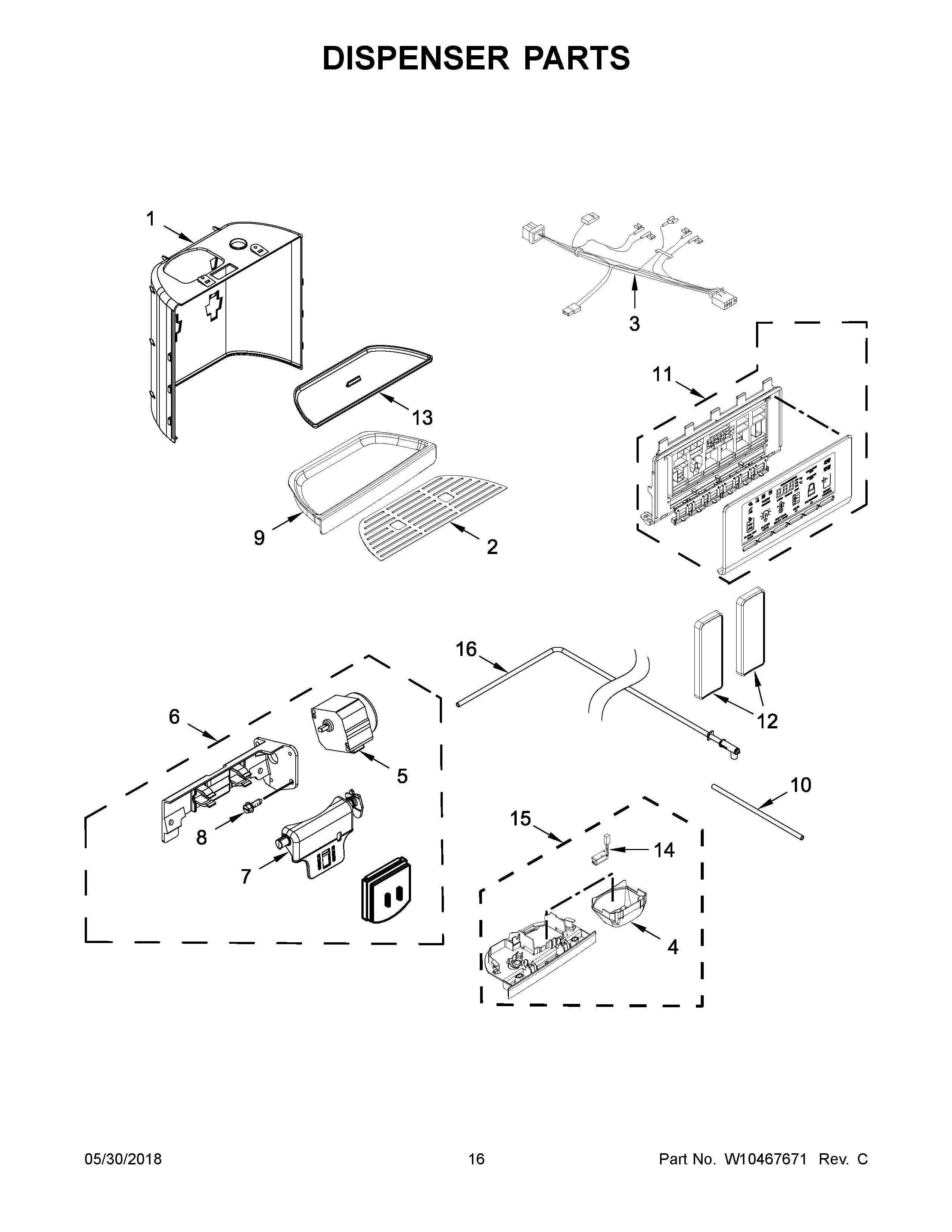

KSC24C8EYB02 09 – DISPENSER PARTS

KSC24C8EYB02 09 – DISPENSER PARTS

Written by

in

KSC24C8EYB02 09 – DISPENSER PARTS

Products

PositionProduct
1AW10317259 Whirlpool Refrigerator Separator
1BW10317255 Whirlpool Refrigerator Separator
1W10317258 Whirlpool Refrigerator Separator
2WPW10317270 Whirlpool Refrigerator Grille
3W10605343 Whirlpool Refrigerator Wire Harness
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6DOOR-ICE
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9BWPW10317261 Whirlpool Refrigerator Drip Tray
9AW10317265 Whirlpool Refrigerator Drip Tray
9W10317264 Whirlpool Refrigerator Drip Tray
10W11620106 Whirlpool Water Tube
11AW11323058 Whirlpool Refrigerator Electronic Control Board + Core
11WPW10623103-includeCORE Whirlpool WPW10623103 Refrigerator Electronic Control Board + Core
12W10317250 Whirlpool Refrigerator Pad
12AW11561037 Whirlpool Refrigerator Pad
12BWPW10346924 Whirlpool Refrigerator Pad
13BW10859920 Whirlpool Refrigerator Drip Tray
13AW10317275 Whirlpool Refrigerator Drip Tray
13W10317274 Whirlpool Drip Tray
14W11290115 Whirlpool Refrigerator Light
15W10353593 Whirlpool Refrigerator Separator
16W11669938 Whirlpool Water Tube
