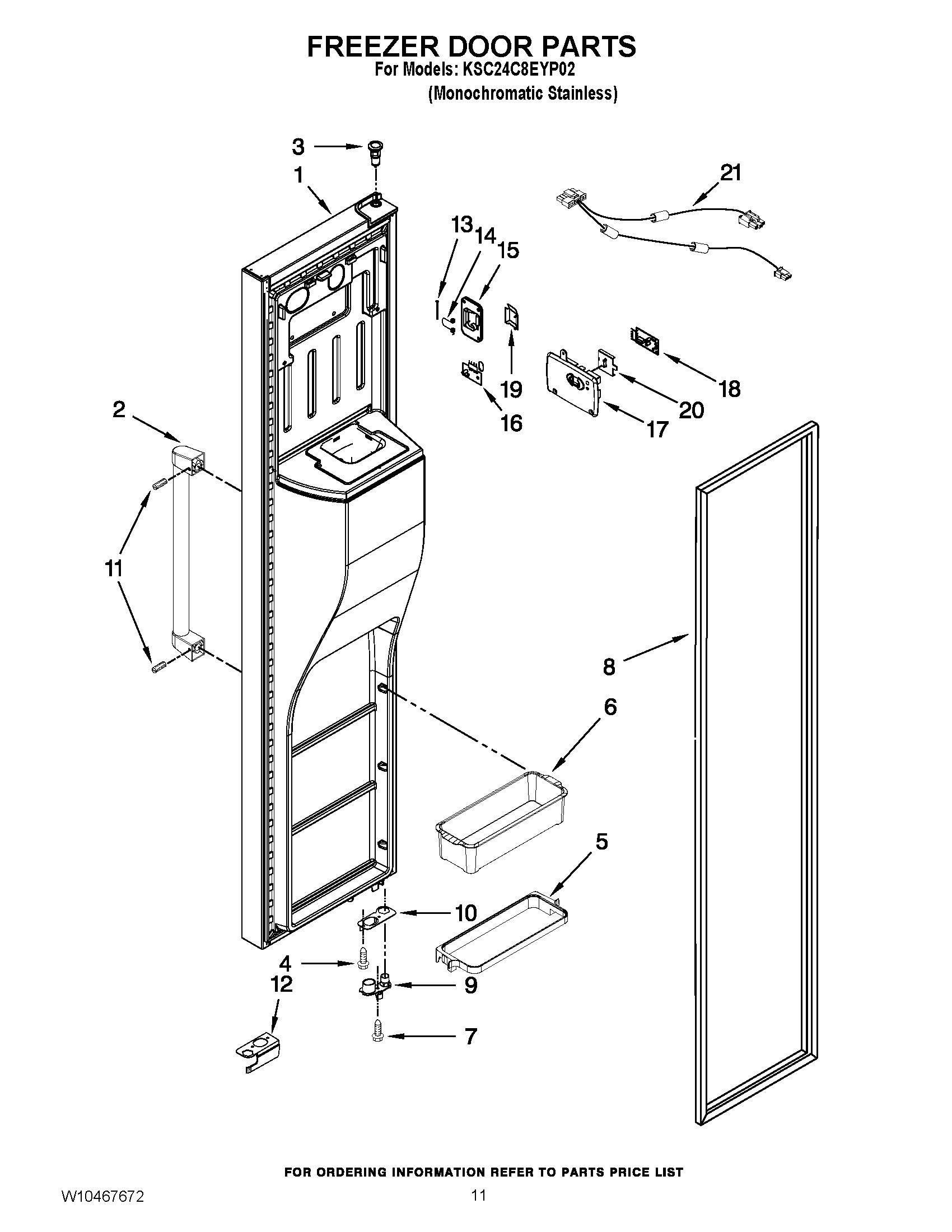

KSC24C8EYP02 07 – FREEZER DOOR PARTS

KSC24C8EYP02 07 – FREEZER DOOR PARTS

Written by

in

KSC24C8EYP02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2HANDLE ASSY STAINLESS MODEL
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10494336 Whirlpool Refrigerator Bin Frame
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8GASKET-FIP (AH)
9WPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11W10320946 Whirlpool Dishwasher Screw
12WPW10632062 Whirlpool Refrigerator Wire Cover
13WP2198634 Whirlpool Door Pin
14WP2198635 Whirlpool Refrigerator Spring
15W10258502 Whirlpool Refrigerator Cover
16W10870822 Whirlpool Refrigerator Electronic Control Board
17COVER, RECEIVER
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19FLIPPER
20W10258540 Whirlpool Refrigerator Slide
21W10242369 Whirlpool Refrigerator Wire Harness
