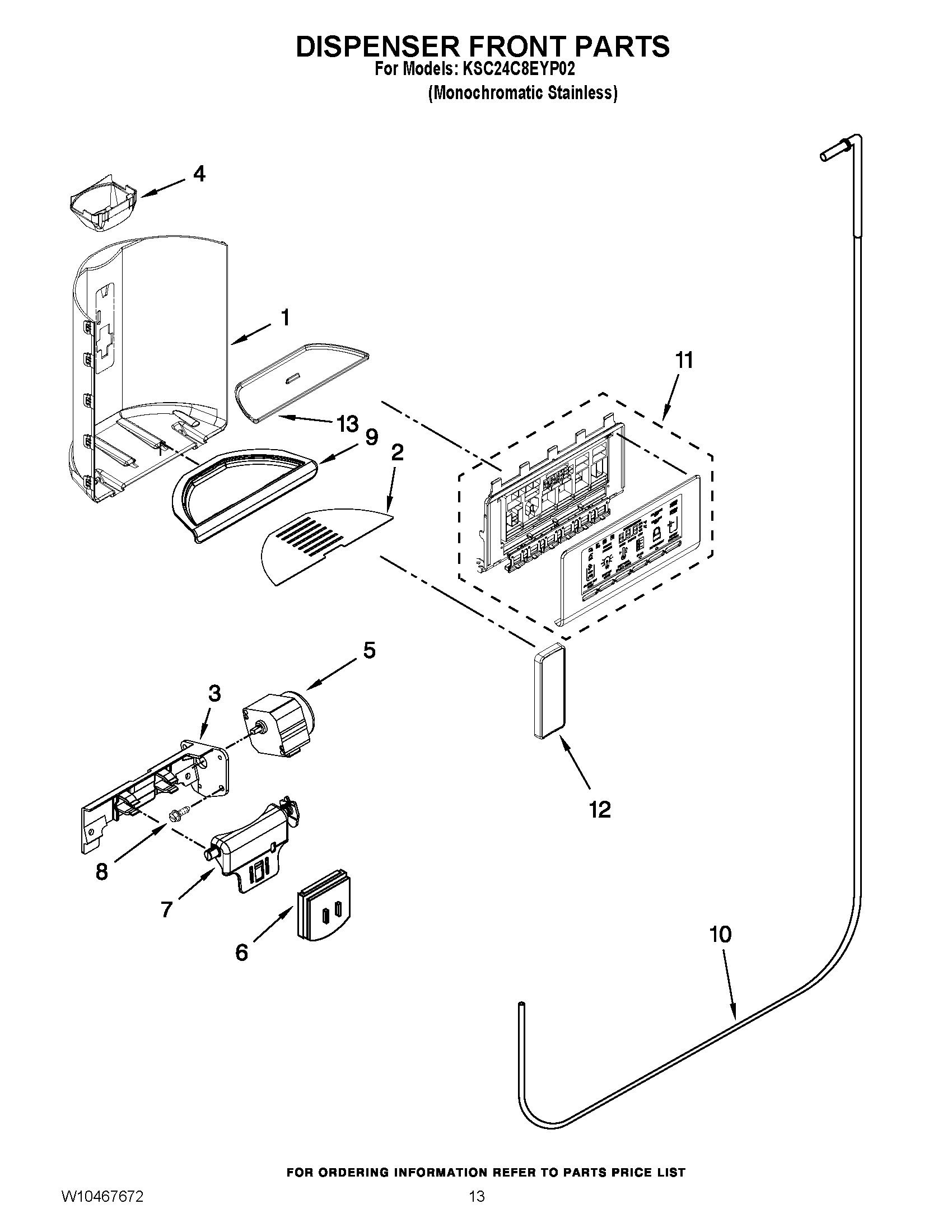

KSC24C8EYP02 08 – DISPENSER FRONT PARTS

KSC24C8EYP02 08 – DISPENSER FRONT PARTS

Written by

in

KSC24C8EYP02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10317270 Whirlpool Refrigerator Grille
3DOOR-ICE
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10317261 Whirlpool Refrigerator Drip Tray
10WPW10279849 Whirlpool Refrigerator Water Tube
11WPW10623103-includeCORE Whirlpool WPW10623103 Refrigerator Electronic Control Board + Core
12WPW10346924 Whirlpool Refrigerator Pad
13W10859920 Whirlpool Refrigerator Drip Tray
