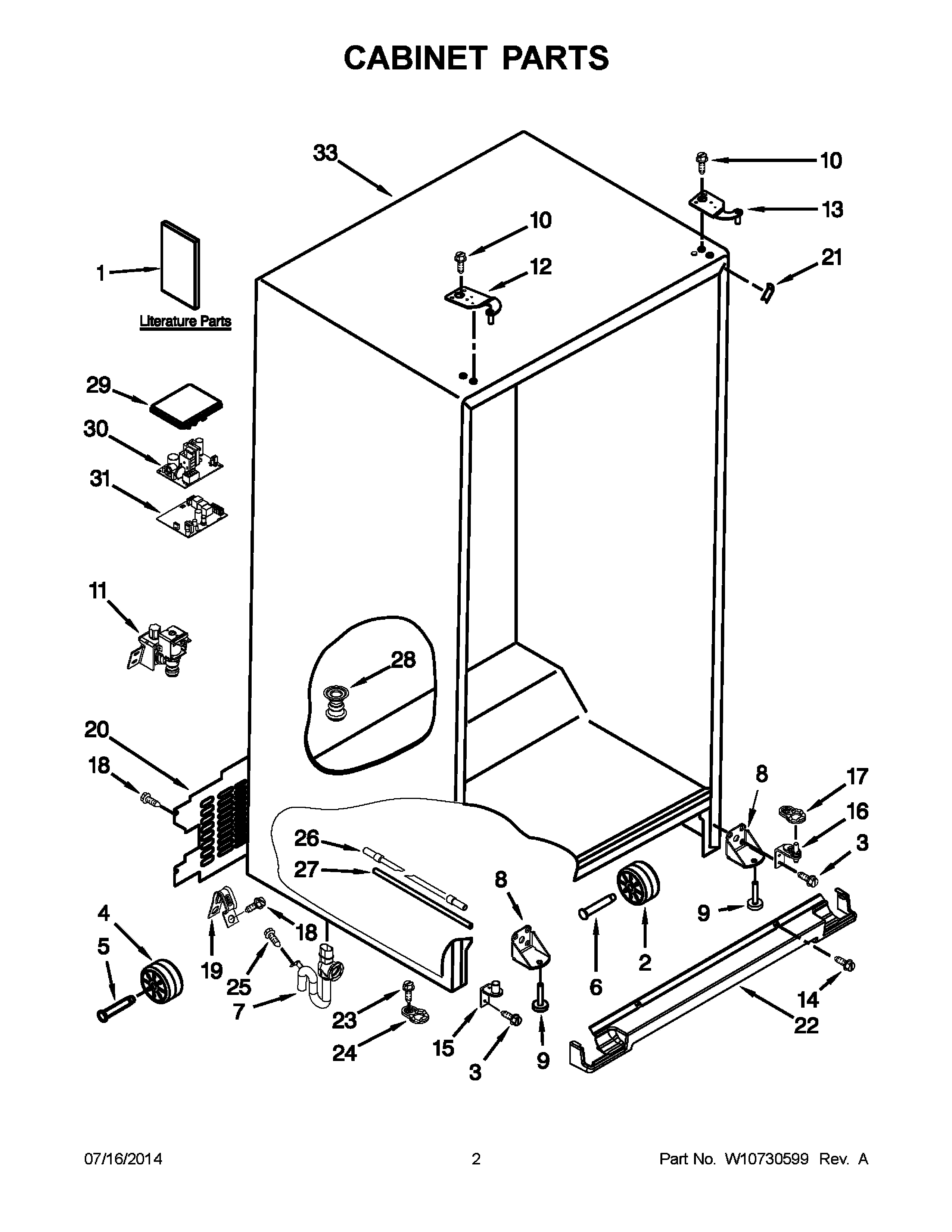

KSC24C8EYP03 02 – CABINET PARTS
Written by
in
KSC24C8EYP03 02 – CABINET PARTS
Products
Position
Product
1B
ENERGY GUIDE
1
USE & CARE GUIDE
1A
SERVICE & WIRING SHEET
2
WPW10475495 Whirlpool Roller Assembly
3
WPW10297485 Whirlpool Refrigerator Screw
4
WP67005149 Whirlpool Roller
5
67006434 Whirlpool Axle Pin
6
W11208384 Whirlpool Refrigerator Rivet
7
W11519143 Whirlpool Refrigerator Extension
8
W11266052 Whirlpool Refrigerator Bracket
9
WPW10141622 Whirlpool Leveler
10
WPW10308751 Whirlpool Screw
11
VALVE-INLT REFR
12
W11590581 Whirlpool Refrigerator Door Hinge
13
HINGE-DOOR
14
WPW10308489 Whirlpool Refrigerator Screw
15
W11293374 Whirlpool Refrigerator Door Hinge
16
W11292872 Whirlpool Refrigerator Door Hinge
17
W11311687 Whirlpool Closing Cam
18
SCREW
19
549193 Whirlpool Refrigerator Power Clamp
20
WPW10333887 Whirlpool Refrigerator Unit Cover
21
WP12587703AP Whirlpool Refrigerator Filler
22
WPW10713153 Whirlpool Refrigerator Grille
23
WP489483 Whirlpool Screw
24
W10876191 Whirlpool Refrigerator Door Cam
25
WP489464 Whirlpool Refrigerator Screw
26
WPW10279882 Whirlpool Water Line
27
WPW10279885 Whirlpool Refrigerator Water Tube
28
W10247979 Whirlpool Refrigerator Fitting
29
LID, HV BOX
30
WPW10226427 Whirlpool Refrigerator Electronic Control Board
31
WPW10235503-includeCORE Whirlpool WPW10235503 Refrigerator Electronic Control Board + Core
33
CABINET (NOT A SERVICEABLE PART)
←
