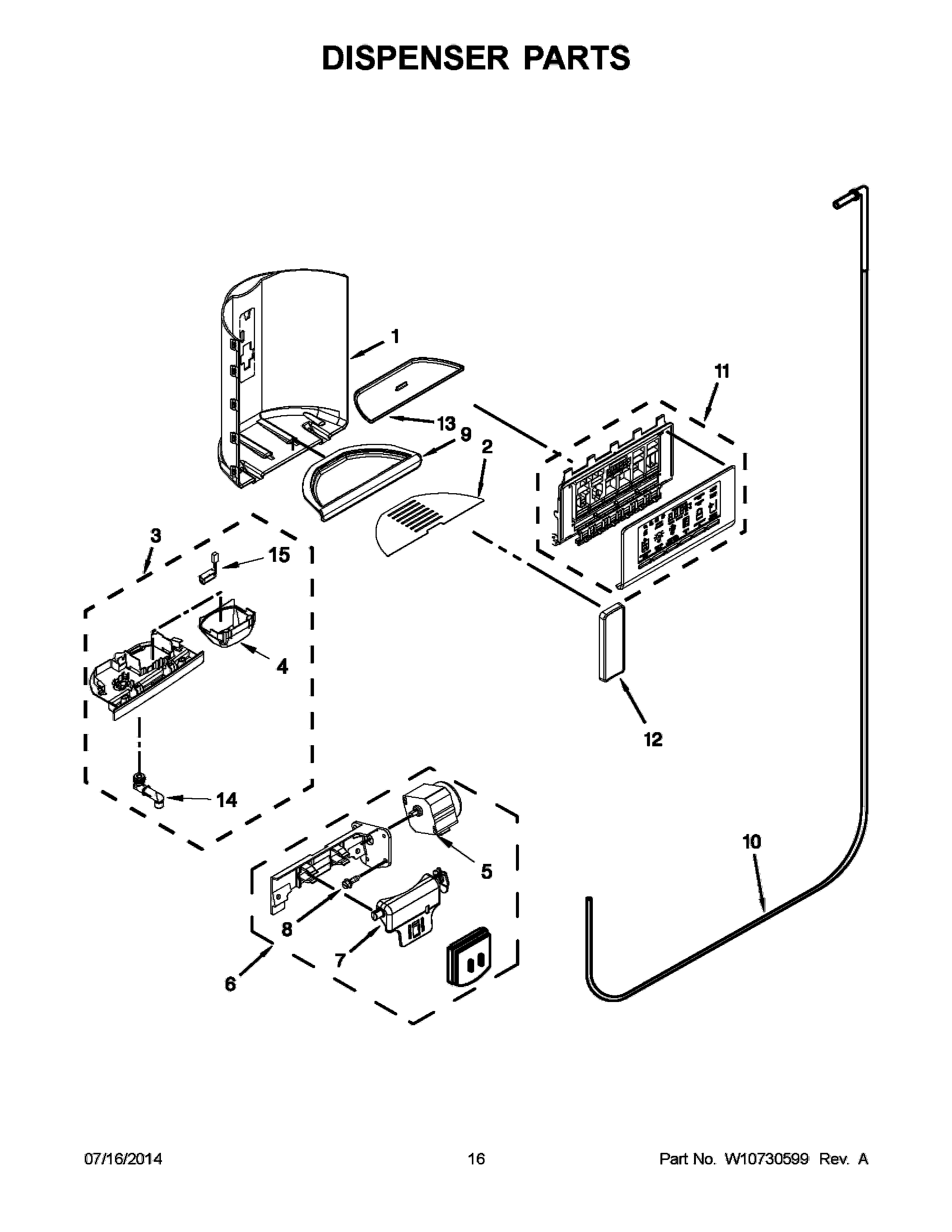

KSC24C8EYP03 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10317270 Whirlpool Refrigerator Grille
3W10353593 Whirlpool Refrigerator Separator
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6DOOR-ICE
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10317261 Whirlpool Refrigerator Drip Tray
10WPW10279849 Whirlpool Refrigerator Water Tube
11WPW10623103-includeCORE Whirlpool WPW10623103 Refrigerator Electronic Control Board + Core
12WPW10346924 Whirlpool Refrigerator Pad
13W10859920 Whirlpool Refrigerator Drip Tray
14SPIGOT-BODY ASSY
15W11290115 Whirlpool Refrigerator Light
