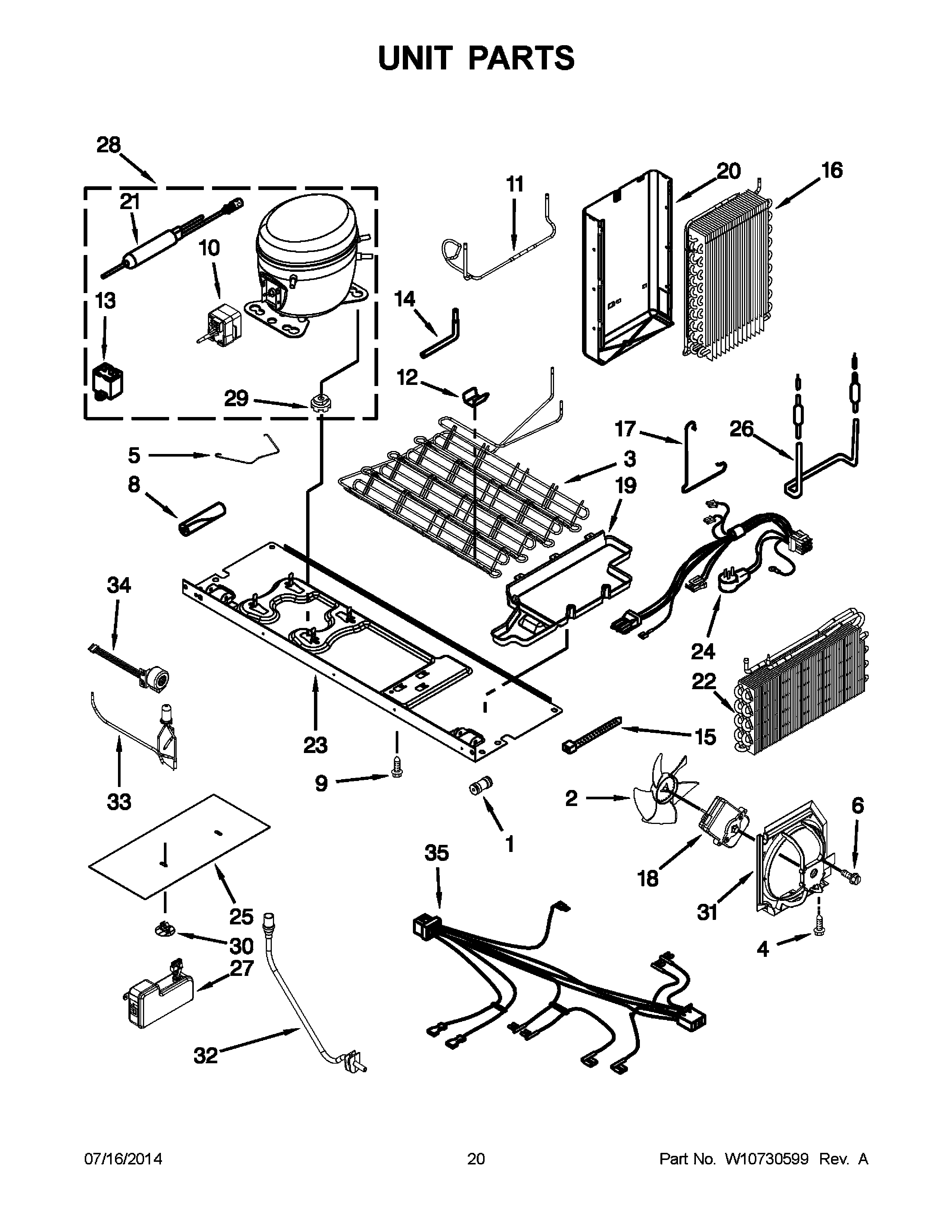

KSC24C8EYP03 11 – UNIT PARTS

Products

Position	Product
NI	WPW10143759 Whirlpool Dryer Filter
NI	WPW10169124 Whirlpool Refrigerator Grommet
NI	WPW10197428 Whirlpool Start Device
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
1	WPW10277958 Whirlpool Refrigerator Fitting
2	W10156818 Whirlpool Refrigerator Fan Blade
3	W11708426 Whirlpool Condenser Assembly
4	WP489399 Whirlpool Refrigerator Screw
5	W10204187 Whirlpool Refrigerator Retainer
6	WPW10171469 Whirlpool Refrigerator Screw
8	SLEEVE
9	W11544659 Whirlpool Refrigerator Screw
11	WPW10223328 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WPW10239732 Whirlpool Refrigerator Evaporator
17	Clamp
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	W10714793 Whirlpool Refrigerator Evaporator Tray
20	W10376319 Whirlpool Refrigerator Shield
22	WPW10643261 Whirlpool Refrigerator Evaporator
23	W10277704 Whirlpool Refrigerator Support
24	WPW10261232 Whirlpool Refrigerator Power Cord
25	UNIT COVER, BOTTOM
26	HEATER
27	W11038857 Whirlpool Refrigerator Inverter Box
28	W10309988 Whirlpool Refrigerator Compressor
30	W10296661 Whirlpool Refrigerator Clip
31	WPW10251467 Whirlpool Refrigerator Air Baffle
32	W11409190 Whirlpool Refrigerator Drain Tube
33	W11590197 Whirlpool Refrigerator Valve
34	WPW10364560 Whirlpool Refrigerator Solenoid
35	W11676780 Whirlpool Refrigerator Wire Harness
