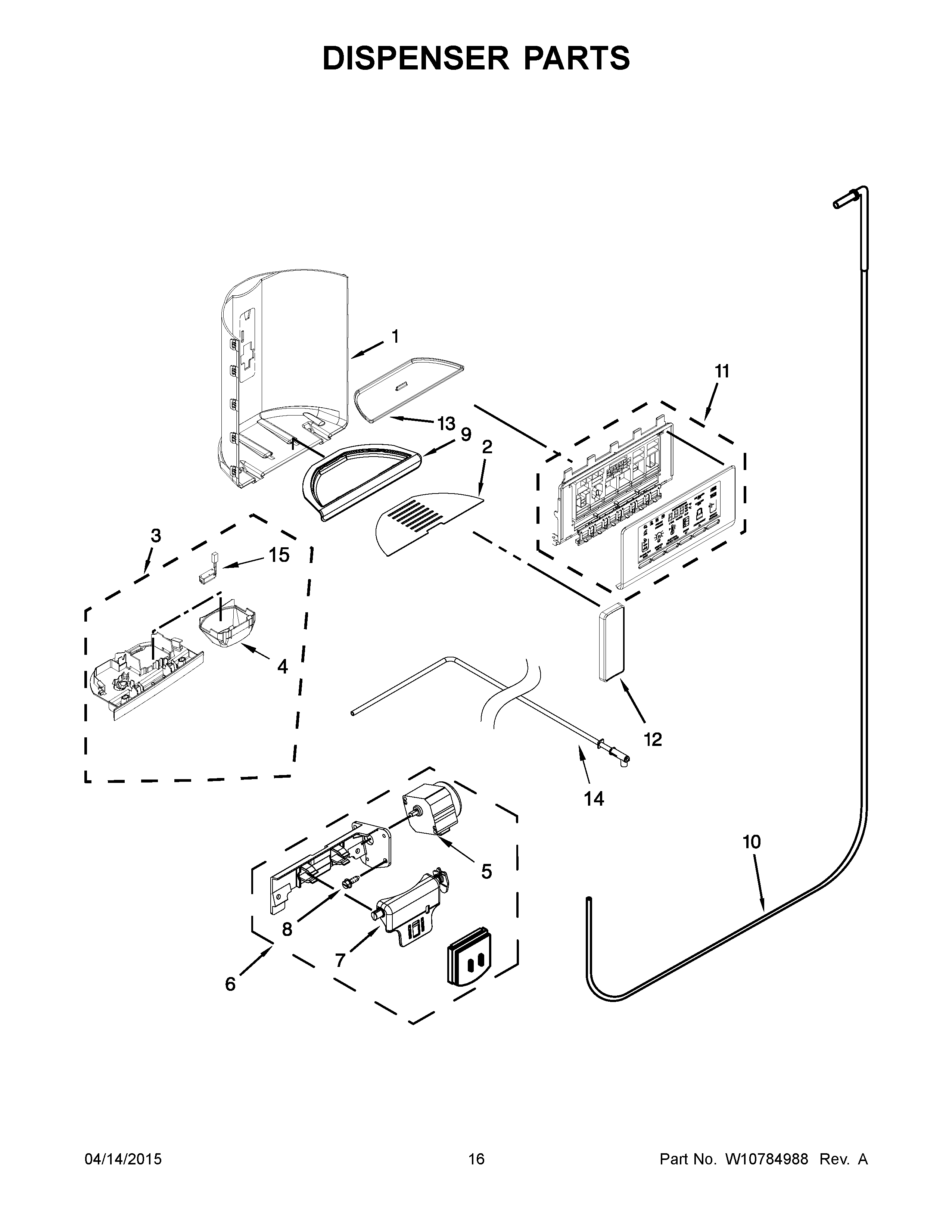

KSC24C8EYP04 09 – DISPENSER PARTS

KSC24C8EYP04 09 – DISPENSER PARTS

Written by

in

KSC24C8EYP04 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10317270 Whirlpool Refrigerator Grille
3W10353593 Whirlpool Refrigerator Separator
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6DOOR-ICE
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10317261 Whirlpool Refrigerator Drip Tray
10W11620106 Whirlpool Water Tube
11WPW10757195-includeCORE Whirlpool WPW10757195 Refrigerator Electronic Control Board + Core
12WPW10346924 Whirlpool Refrigerator Pad
13W10859920 Whirlpool Refrigerator Drip Tray
14W11669938 Whirlpool Water Tube
15W11290115 Whirlpool Refrigerator Light
