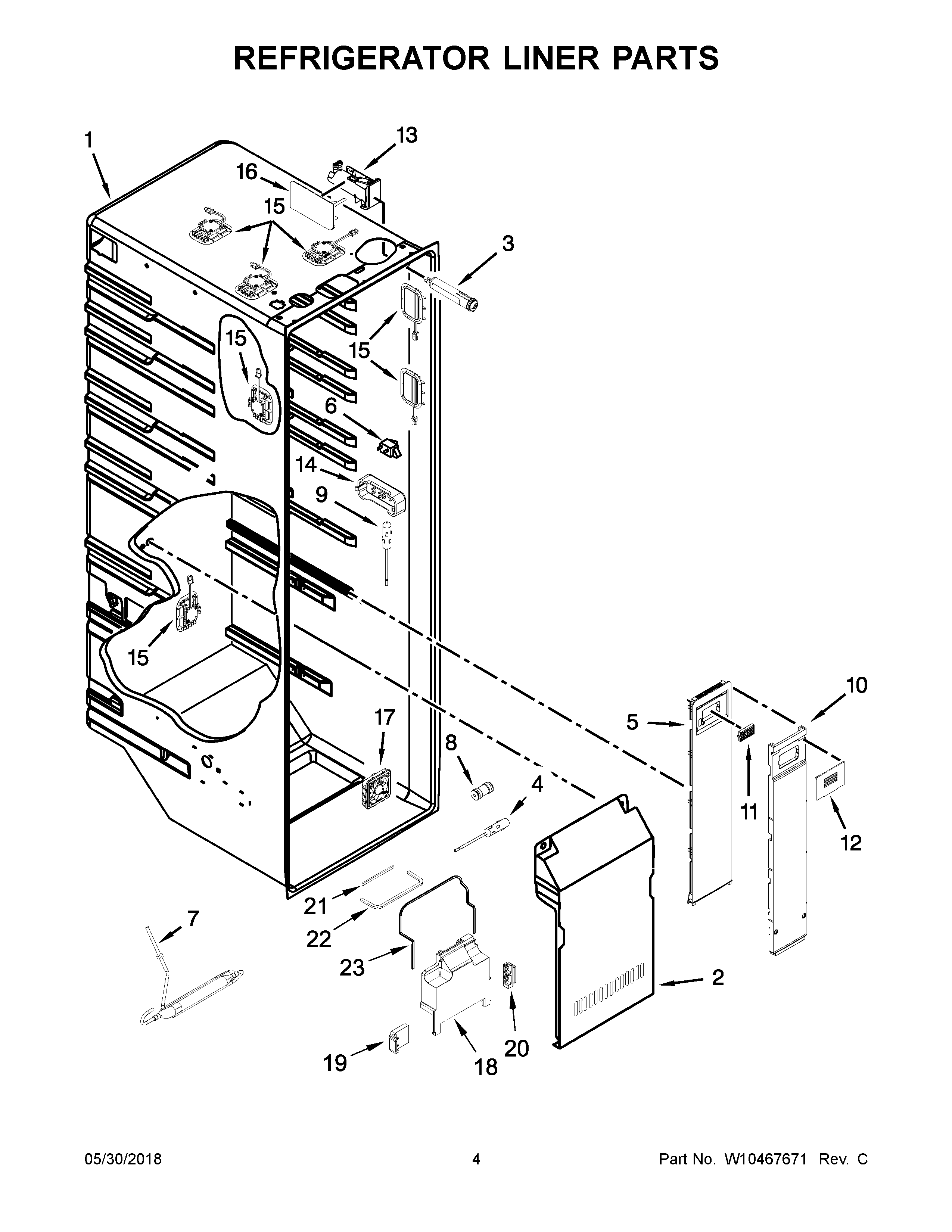

KSC24C8EYW02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	ASSEMBLY, 10 LED JUMPER WIRE
NI	CABINET (NOT A SERVICEABLE PART)
2	WPW10387382 Whirlpool Refrigerator Evaporator Cover
3	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4	W10316760 Whirlpool Thermistor Kit
6	W11384469 Whirlpool Door Switch
7	W11204869 Whirlpool Refrigerator Reservoir
8	WP2300868 Whirlpool Refrigerator Fitting
9	THERMISTOR
10	W10513730 Whirlpool Refrigerator Air Tower
11	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12	W10341548 Whirlpool Refrigerator Support
13	WPW10341545 Whirlpool Refrigerator Housing
14	WPW10425252 Whirlpool Refrigerator Cover
15	MODULE
16	W11501035 Whirlpool Refrigerator Filter Cover
17	WPW10439624 Whirlpool Refrigerator Evaporator Motor
18	WPW10451893 Whirlpool Refrigerator Scroll Fan
19	W11028224 Whirlpool Refrigerator Support
20	W10837626 Whirlpool Refrigerator Support
21	W11702233 Whirlpool Gasket
22	W11676537 Whirlpool Gasket
23	W11676538 Whirlpool Gasket
