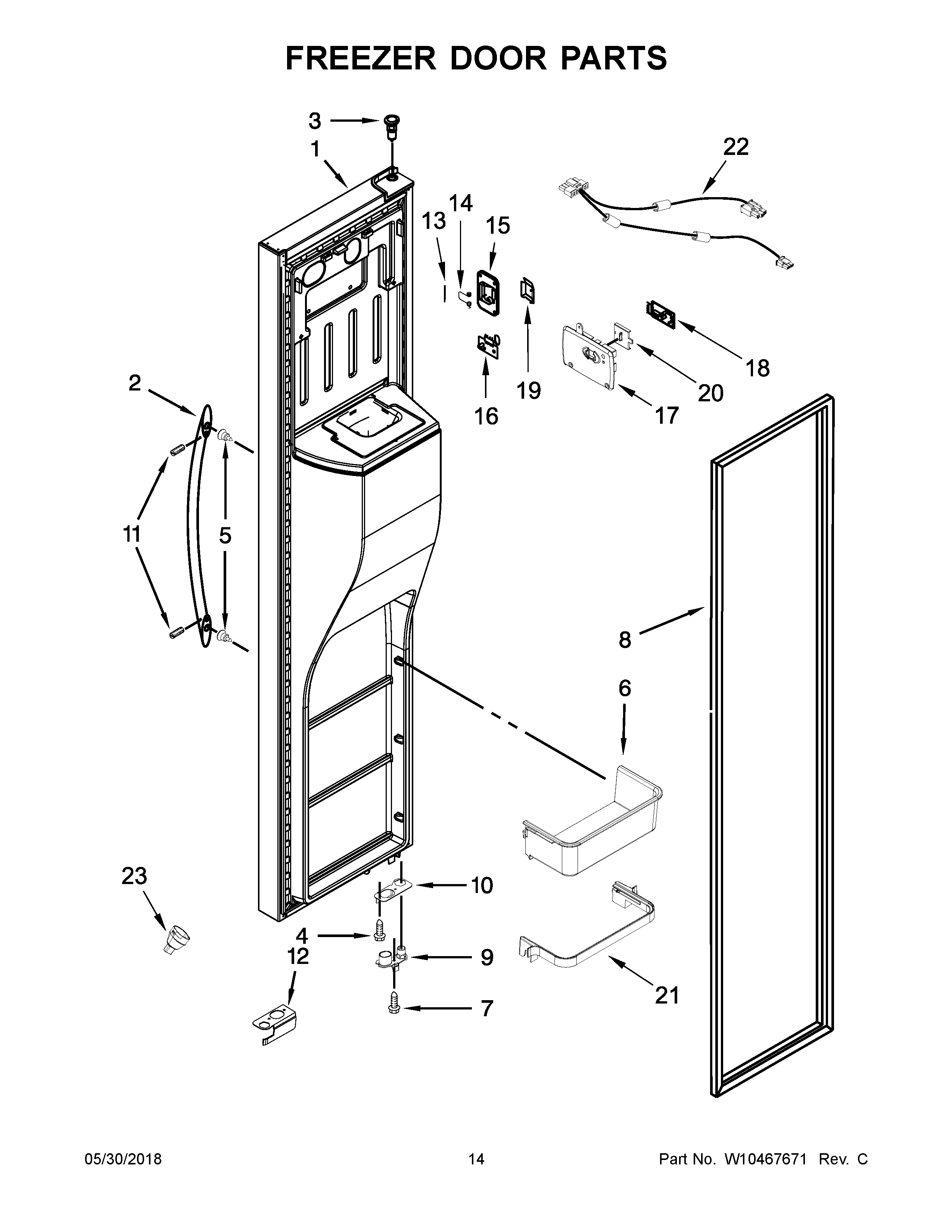

KSC24C8EYY02 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BDOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1ADOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2BWPW10314517K Whirlpool Refrigerator Handle
2WPW10314515 Whirlpool Refrigerator Handle
2AHANDLE, DOOR (BLACK)
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8W11625001 Whirlpool Refrigerator FIP Gasket
8BGASKET-FIP (AH)
8AGASKET, DOOR (BLACK)
9WPW10248015 Whirlpool Refrigerator Door Cam
9BWPW10257206 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
10W11293380 Whirlpool Refrigerator Bracket
11WP3400203 Whirlpool Screw
12W10632059 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12BWPW10632062 Whirlpool Refrigerator Wire Cover
13WP2198634 Whirlpool Door Pin
14WP2198635 Whirlpool Refrigerator Spring
15W10258502 Whirlpool Refrigerator Cover
16W10870822 Whirlpool Refrigerator Electronic Control Board
17W10363396 Whirlpool Refrigerator Cover
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19FLIPPER
20W10258540 Whirlpool Refrigerator Slide
21WPW10494336 Whirlpool Refrigerator Bin Frame
22W10411699 Whirlpool Refrigerator Wire Harness
23W10258479 Whirlpool Refrigerator Cover
