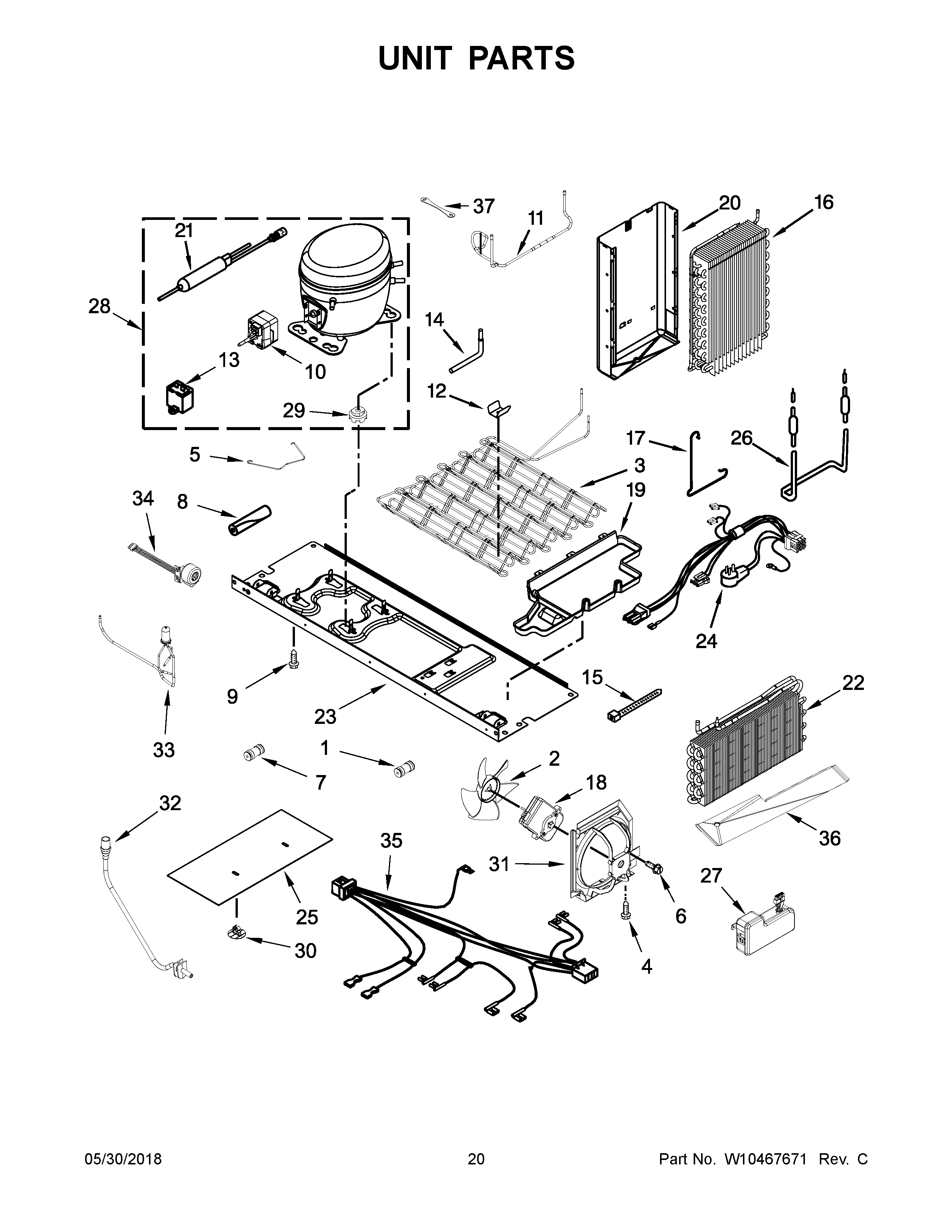

KSC24C8EYY02 11 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	WPW10277958 Whirlpool Refrigerator Fitting
2	W10156818 Whirlpool Refrigerator Fan Blade
3	W11708426 Whirlpool Condenser Assembly
4	WP489399 Whirlpool Refrigerator Screw
5	W10204187 Whirlpool Refrigerator Retainer
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10271543 Whirlpool Refrigerator Connector
8	SLEEVE
9	WP489474 Whirlpool Refrigerator Screw
10	WPW10197428 Whirlpool Start Device
11	WPW10223328 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WPW10239732 Whirlpool Refrigerator Evaporator
17	Clamp
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	W10714793 Whirlpool Refrigerator Evaporator Tray
20	W10376319 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	WPW10643261 Whirlpool Refrigerator Evaporator
23	W10277704 Whirlpool Refrigerator Support
24	WPW10261232 Whirlpool Refrigerator Power Cord
25	UNIT COVER, BOTTOM
26	HEATER
27	W11038857 Whirlpool Refrigerator Inverter Box
28	W10309988 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	W10296661 Whirlpool Refrigerator Clip
31	WPW10251467 Whirlpool Refrigerator Air Baffle
32	W11409190 Whirlpool Refrigerator Drain Tube
33	W11590197 Whirlpool Refrigerator Valve
34	WPW10364560 Whirlpool Refrigerator Solenoid
35	W11676780 Whirlpool Refrigerator Wire Harness
36	W11720794 Whirlpool Drain Pan
37	W10236396 Whirlpool Refrigerator Strap
