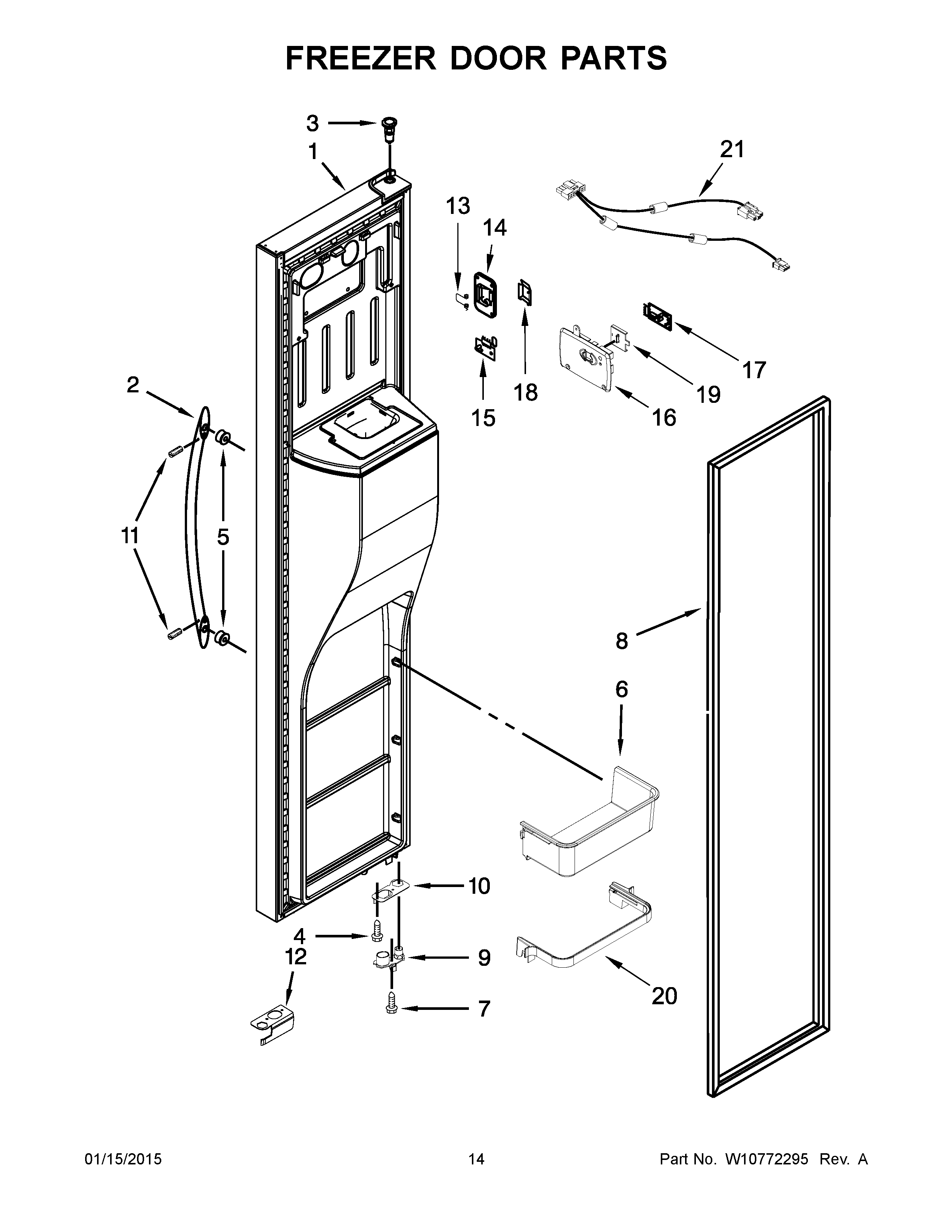

KSC24C8EYY03 08 – FREEZER DOOR PARTS

KSC24C8EYY03 08 – FREEZER DOOR PARTS

Written by

in

KSC24C8EYY03 08 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 & DISPENSER FRONT PARTS) (STAINLESS)
2WPW10314517K Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8GASKET-FIP (AH)
9WPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11WP3400203 Whirlpool Screw
12WPW10632062 Whirlpool Refrigerator Wire Cover
13WP2198635 Whirlpool Refrigerator Spring
14W10258502 Whirlpool Refrigerator Cover
15W10870822 Whirlpool Refrigerator Electronic Control Board
16COVER, RECEIVER
17W10898445 Whirlpool Refrigerator Electronic Control Board + Core
18FLIPPER
19W10258540 Whirlpool Refrigerator Slide
20WPW10494336 Whirlpool Refrigerator Bin Frame
21W10411699 Whirlpool Refrigerator Wire Harness
