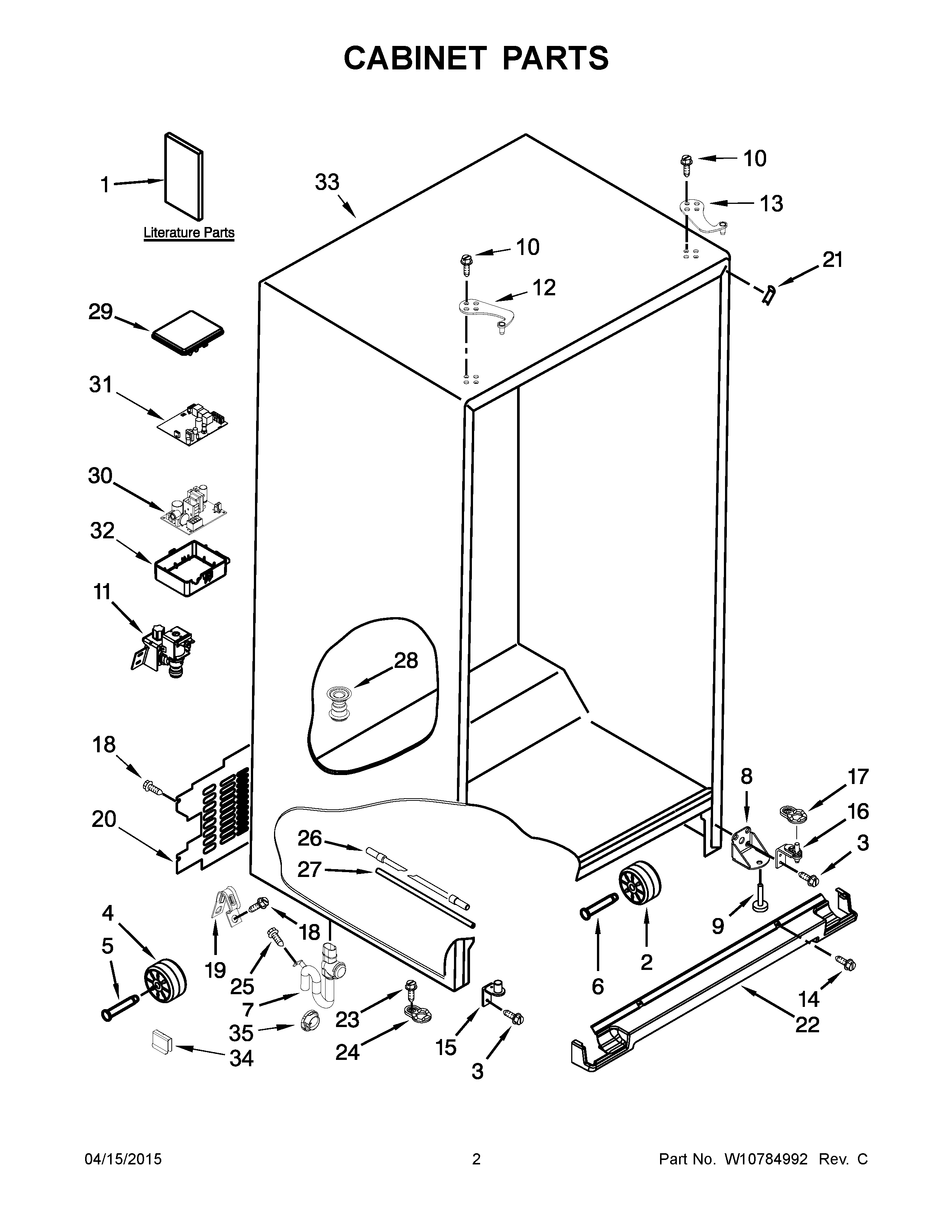

KSC24C8EYY04 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1B	USE & CARE GUIDE
1	SERVICE & WIRING SHEET
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	W11519143 Whirlpool Refrigerator Extension
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	WPW10308751 Whirlpool Screw
11	VALVE-INLT REFR
12	W11590581 Whirlpool Refrigerator Door Hinge
13	HINGE-DOOR
14	WPW10142283 Whirlpool Refrigerator Screw
14A	WPW10308489 Whirlpool Refrigerator Screw
15	W11293374 Whirlpool Refrigerator Door Hinge
16	W11292872 Whirlpool Refrigerator Door Hinge
17	W11311687 Whirlpool Closing Cam
18	SCREW
19	549193 Whirlpool Refrigerator Power Clamp
20	WPW10333887 Whirlpool Refrigerator Unit Cover
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279885 Whirlpool Refrigerator Water Tube
28	W10247979 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	WPW10226427 Whirlpool Refrigerator Electronic Control Board
31	WPW10708285-includeCORE Whirlpool WPW10708285 Refrigerator Electronic Control Board + Core
32	WPW10247993 Whirlpool Refrigerator Control Box
33	CABINET (NOT A SERVICEABLE PART)
34	W11545866 Whirlpool Refrigerator Clip
35	W11291510 Whirlpool Refrigerator Valve
