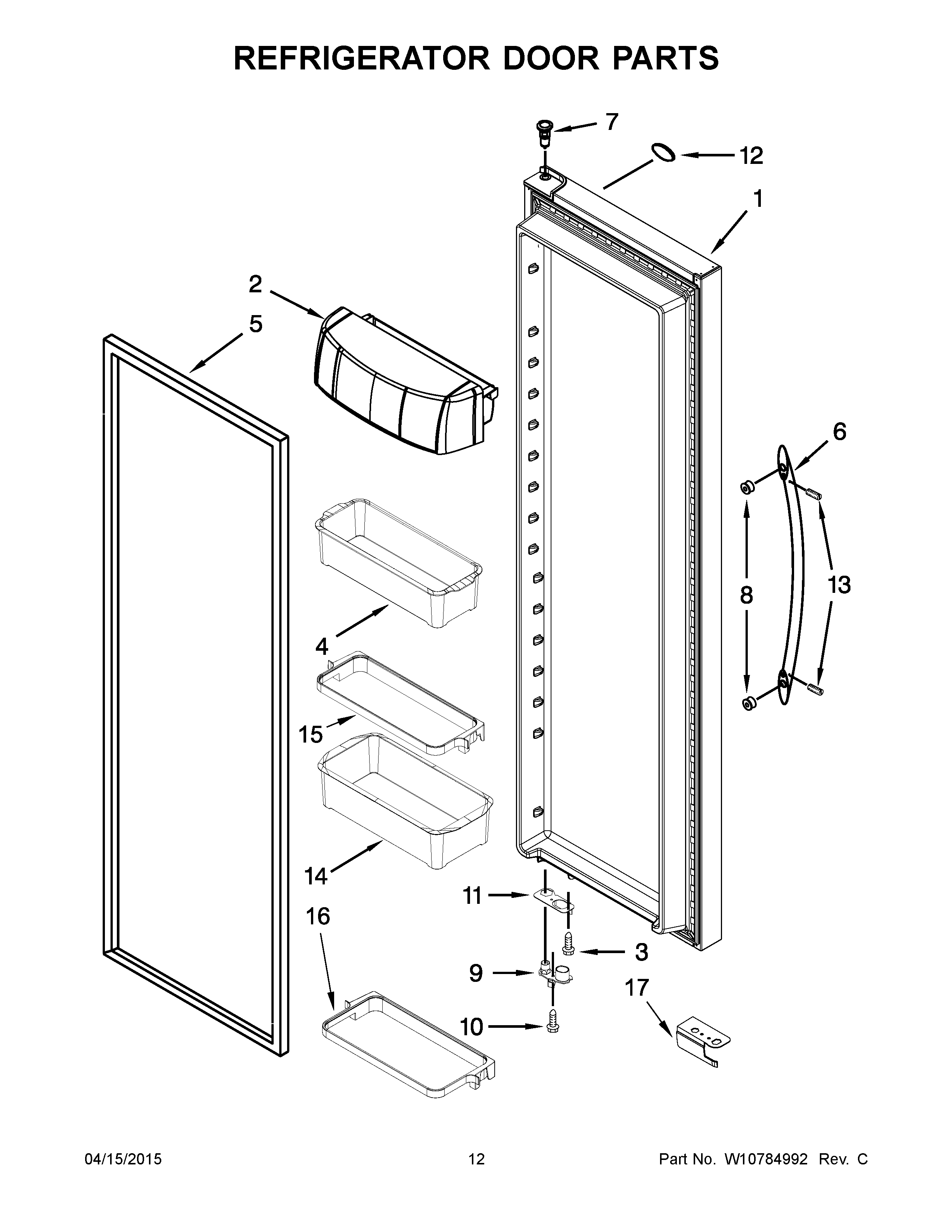

KSC24C8EYY04 07 – REFRIGERATOR DOOR PARTS

KSC24C8EYY04 07 – REFRIGERATOR DOOR PARTS

Written by

in

KSC24C8EYY04 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10637819 Whirlpool Refrigerator DOR-FIP
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5W10355588 Whirlpool Refrigerator FIP Gasket
6WPW10314517K Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10243391 Whirlpool Refrigerator Nameplate
13WP3400203 Whirlpool Screw
14WPW10316457 Whirlpool Refrigerator Gallon Door Bin
15WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
16WPW10494334 Whirlpool Bin Frame
17W11661847 Whirlpool Wire Cover
