KSCK23FVBL02 03 – REFRIGERATOR SHELF PARTS
Written by
in

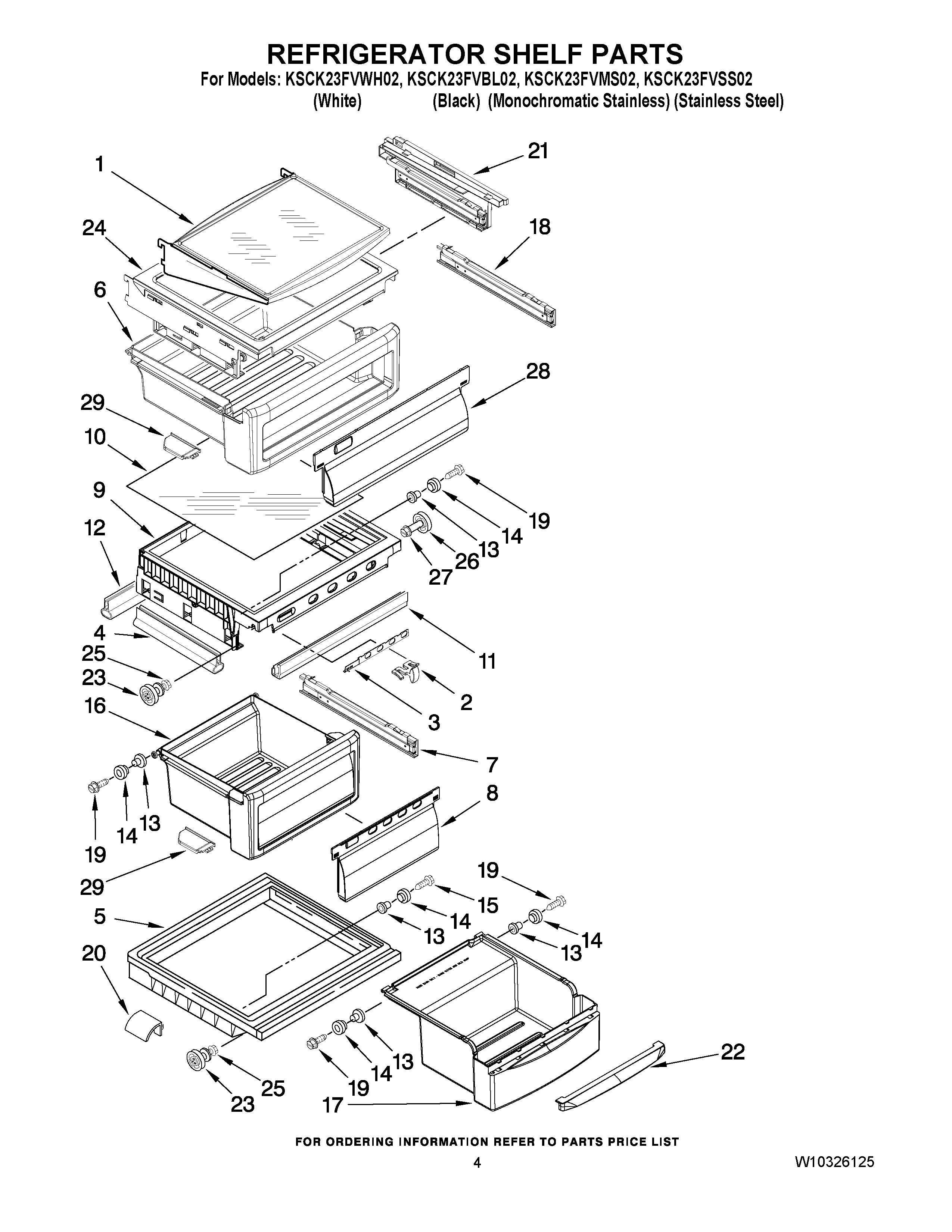

KSCK23FVBL02 03 – REFRIGERATOR SHELF PARTS
Products
Position
Product
1
W10235943 Whirlpool Refrigerator CANT Shelf
2
Knob, Humidity
3
2301026 Whirlpool Refrigerator Slide
4
2301117 Whirlpool Refrigerator Gasket
5
WPW10270150 Whirlpool Crisper Drawer Cover
6
Snack Bin
7
Glide Assm-Pan (Left Side)
7
2301548 Whirlpool Refrigerator Glide
8
Window, Crisper
9
Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10
Glass, Meat Pan Cover
11
WP1125528 Whirlpool Refrigerator Gasket
12
Gasket, Rear
13
Eyelet, Roller
14
Roller
15
WPW10272364 Whirlpool Refrigerator Screw
16
W10916292 Whirlpool Refrigerator Crisper Pan
17
Meat Pan (Includes 13, 14, 19 & 22)
18
Glide Assm-Pan (Right Side)
18
Glide Assm-Pan (Left Side)
19
WP489261 Whirlpool Refrigerator Screw
20
2223487 Whirlpool Refrigerator Deflector
21
Support Assembly (Right Side)
21
Support Assembly (Left Side)
22
Handle, Beverage
23
W11223328 Whirlpool Refrigerator Shelf Stud
24
Shelf Assembly
25
WP3-24004-109 Whirlpool Refrigerator Screw
26
W11527119 Whirlpool Refrigerator Shelf Stud
27
WPW10191952 Whirlpool Refrigerator Screw
28
Window, Snack Pan
29
Cap, Crisper Pan (Right Side)
29
Cap, Crisper Pan (Left Side)
←
