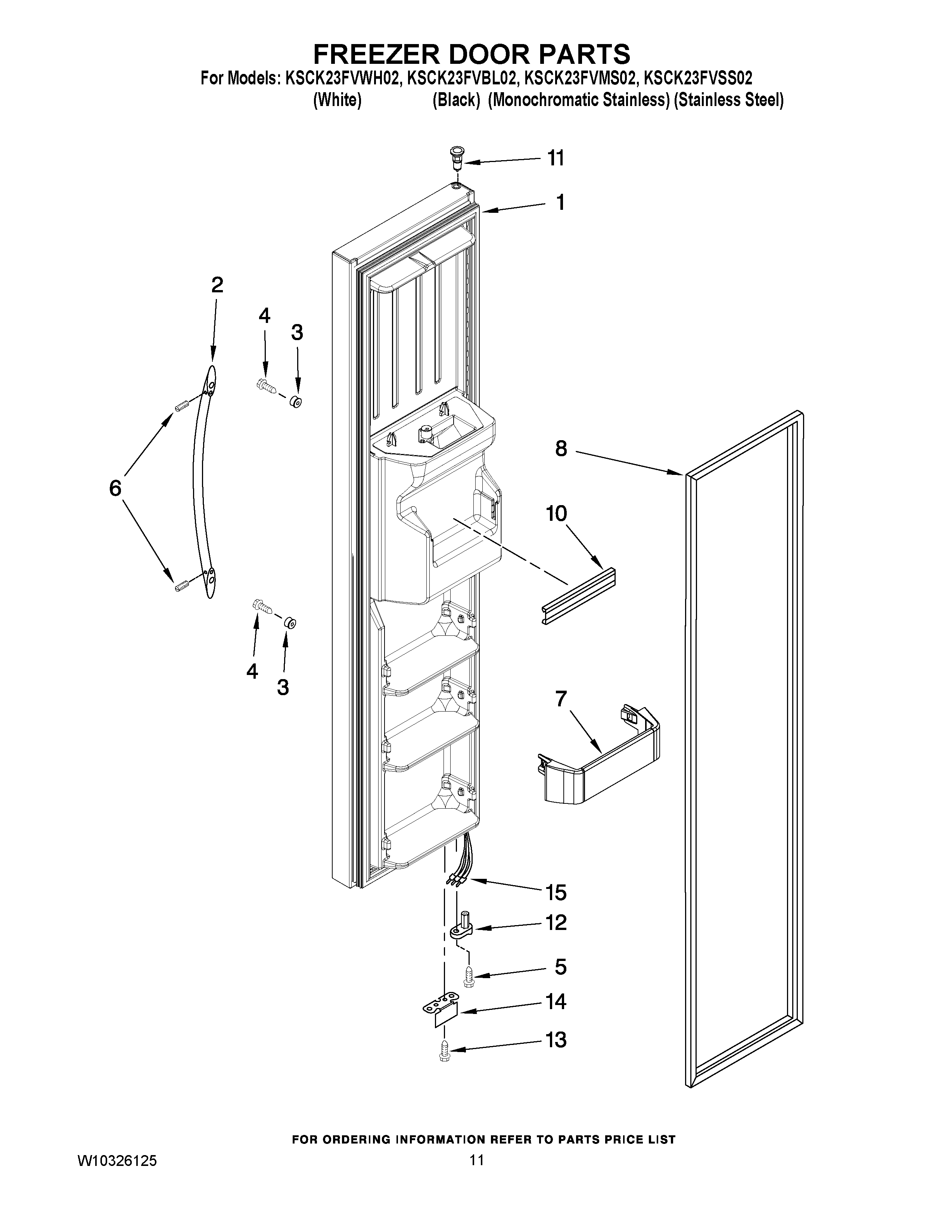

KSCK23FVBL02 07 – FREEZER DOOR PARTS
Written by
in
KSCK23FVBL02 07 – FREEZER DOOR PARTS
Products
Position
Product
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC STAINLESS)
2
Handle, Door (Stainless Steel)
2
WP2319727W Whirlpool Refrigerator Handle
2
WP2319727B Whirlpool Refrigerator Handle
3
WPW10170540 Whirlpool Screw
4
Screw
5
WP3400012 Whirlpool Refrigerator Screw
6
SCREW
6
WPW10010150 Whirlpool Refrigerator Screw
7
Trivet (4)
8
GASKET, DOOR (MIST BEIGE)
8
GASKET, DOOR (BLACK)
8
Door Gasket, Magnetic (Apollo Grey)
10
WPW10307490 Whirlpool Door Trim Assembly
11
WP2182181 Whirlpool Refrigerator Thimble
12
W10132977 Whirlpool Refrigerator Door Cam
13
WP489464 Whirlpool Refrigerator Screw
14
2306940B Whirlpool Refrigerator Bracket
14
BRACKET, DOOR STOP (SILVER)
15
Wire Assy, Door
←
