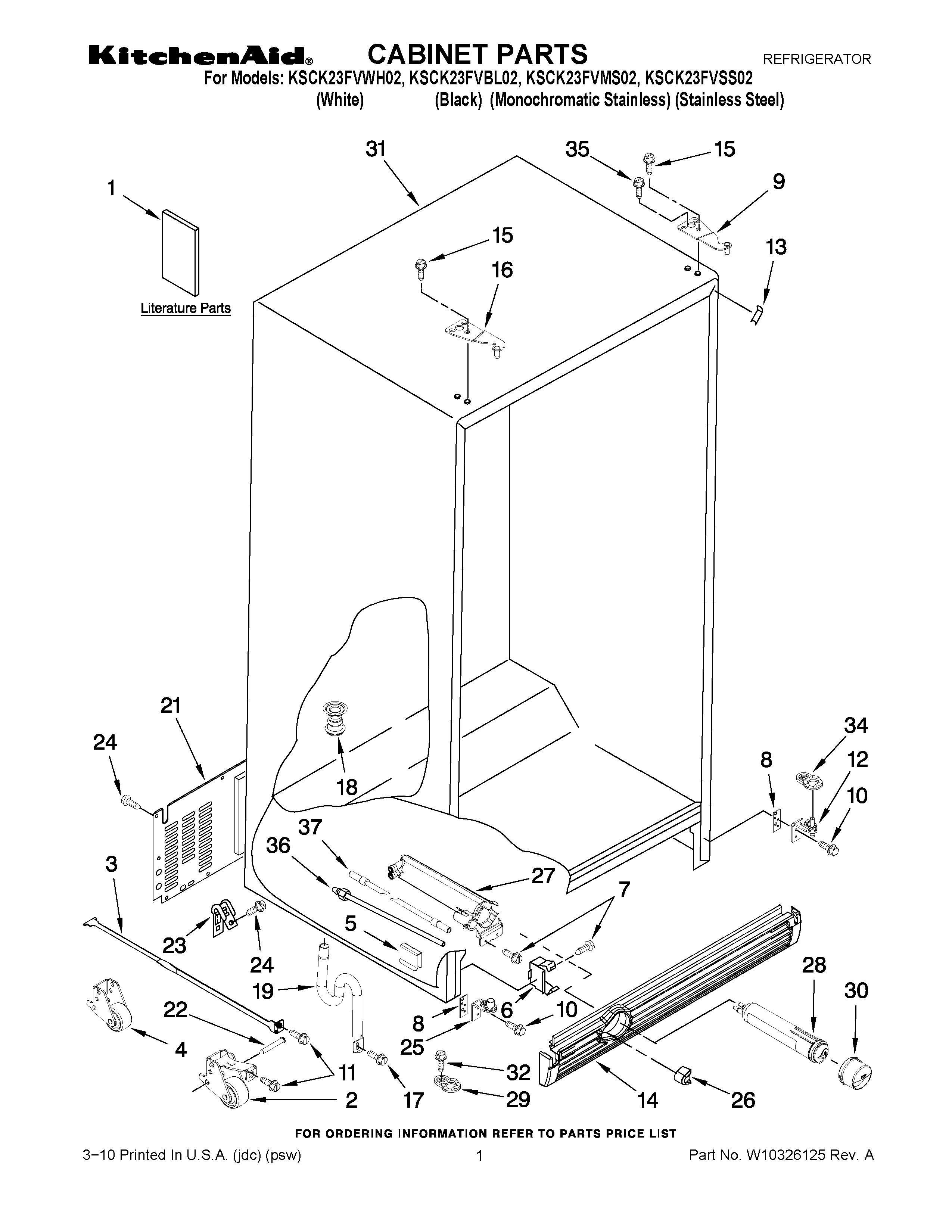

KSCK23FVMS02 01 – CABINET PARTS

KSCK23FVMS02 01 – CABINET PARTS

Written by

in

KSCK23FVMS02 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1Energy Guide
1Use & Care Guide
1SERVICE AND WIRING SHEET ENERGY GUIDE
1Installation Instructions
2FRONT ROLLER ASM (RIGHT SIDE)
2FRONT ROLLER ASM (LEFT SIDE)
3STRAP, ROLLER
4WPW10173132 Whirlpool Refrigerator Cabinet Roller
5W11545866 Whirlpool Refrigerator Clip
6WP2155013 Whirlpool Refrigerator Clip
7W10141518 Whirlpool Refrigerator Screw
82223545 Whirlpool Refrigerator Shim
92307008B Whirlpool Refrigerator Butt Hinge
92307008AP Whirlpool Refrigerator Hinge
10WP693995 Whirlpool Screw
11SCREW
12Hinge Assembly, Bottom-RC
132223893AP Whirlpool Refrigerator Filler
132223893W Whirlpool Refrigerator Filler
13Filler, Wrapper (Black)
14Grille (Midnight Grey)
14Grille (White)
14Grille (Black)
15WP489478 Whirlpool Refrigerator Screw
162307007AP Whirlpool Refrigerator Hinge
162307007B Whirlpool Refrigerator Butt Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Tube, Extension
21Cover, Unit
22PIN, ROLLER (4)
23549193 Whirlpool Refrigerator Power Clamp
24W10151272 Whirlpool Refrigerator Screw
25Hinge Assembly, Bottom-FC
26Button, Water
262260503W Whirlpool Refrigerator Button
26WP2260503B Whirlpool Refrigerator Button
27WPW10121140 Whirlpool Refrigerator Housing
28FILTER 3-SINGLE TEAL
29Door Closer, FC
30WP2260518B Whirlpool Water Filter Cap
30WP2260518W Whirlpool Refrigerator Filter Cap
30WP2260518MG Whirlpool Water Filter Cap
31CABINET (NOT A SERVICEABLE PART)
32WP489483 Whirlpool Screw
34WPL 2307049
35W10142289 Whirlpool Air Conditioner Screw
36W11496481 Whirlpool Refrigerator Water Tube
37TUBE, FILTER INLET
