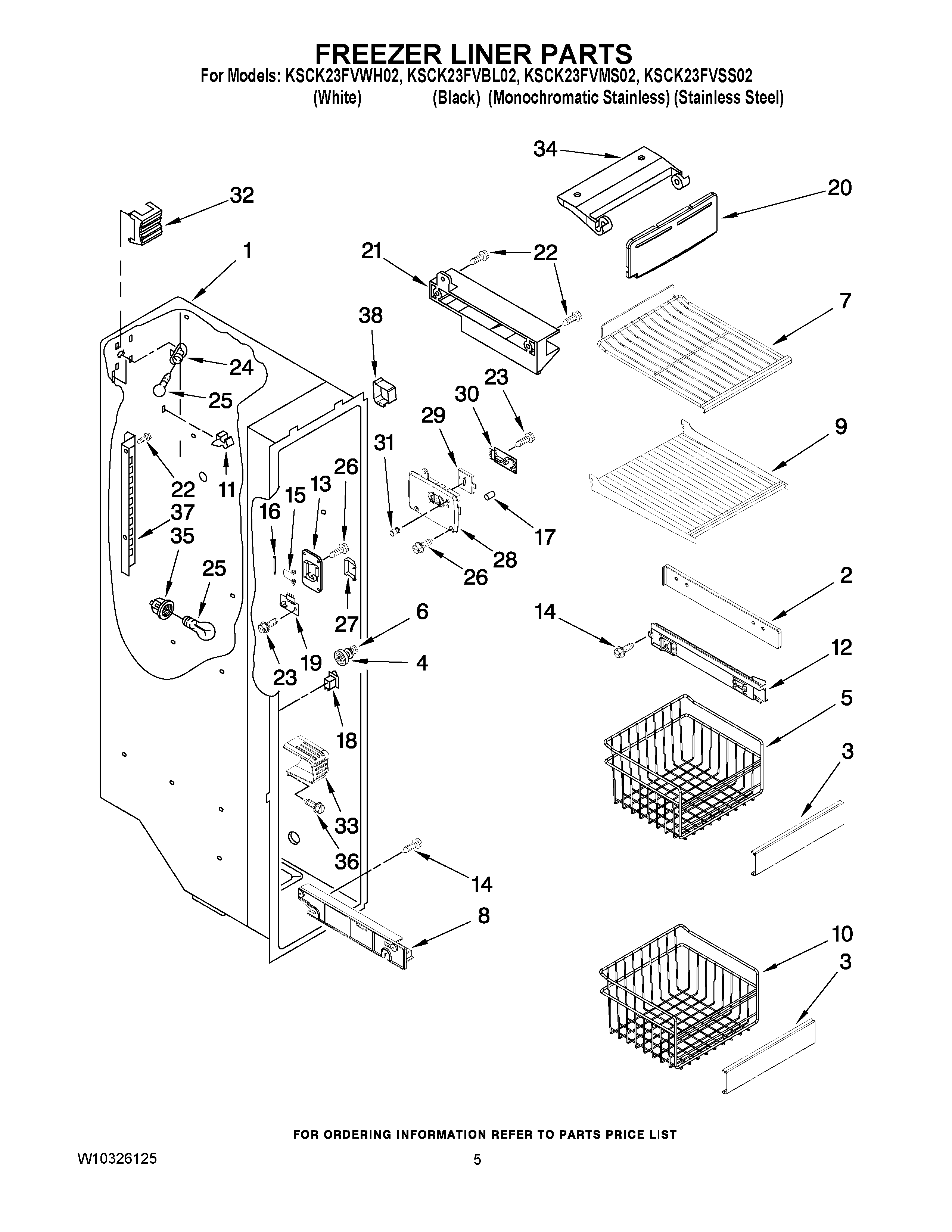

KSCK23FVMS02 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Spacer, Slide (2)
3	Front, Basket
4	W11527119 Whirlpool Refrigerator Shelf Stud
5	Basket, Deep (2) (Includes 11)
6	WP3-24004-109 Whirlpool Refrigerator Screw
7	SHELF, WIRE
8	TRACK, SHELF (LEFT HAND)
8	TRACK, SHELF (RIGHT HAND)
9	Shelf, Fixed
10	Basket, Lower (Includes 3)
11	2215823 Whirlpool Refrigerator Clip
12	2301544 Whirlpool Refrigerator Glide
12	2301545 Whirlpool Refrigerator Glide
13	Cover, Emitter
14	WPW10191952 Whirlpool Refrigerator Screw
15	WP2198635 Whirlpool Refrigerator Spring
16	WP2198634 Whirlpool Door Pin
17	Tube, P.C. Board
18	W11457217 Whirlpool Refrigerator Rocker Switch Combination
19	W10757851-includeCORE Whirlpool Electronic Control+Core
20	WPW10185438 Whirlpool Ice Maker Cover
21	2306900 Whirlpool Refrigerator Slide
21	Slide, Ice Maker
23	2006254 Whirlpool Refrigerator Screw
24	4387478 Whirlpool Refrigerator Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	W10142289 Whirlpool Air Conditioner Screw
27	WP2198633 Whirlpool Refrigerator Flipper
28	Cover, Receiver
29	2315398 Whirlpool Refrigerator Slide
31	WP2198643 Whirlpool Refrigerator Lens
32	Light Shield
33	Light Lens
34	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
35	SOCKET
36	WP489478 Whirlpool Refrigerator Screw
37	Ladder (Left Side)
37	Ladder (Right Side)
38	2303378 Whirlpool Shield Assembly
