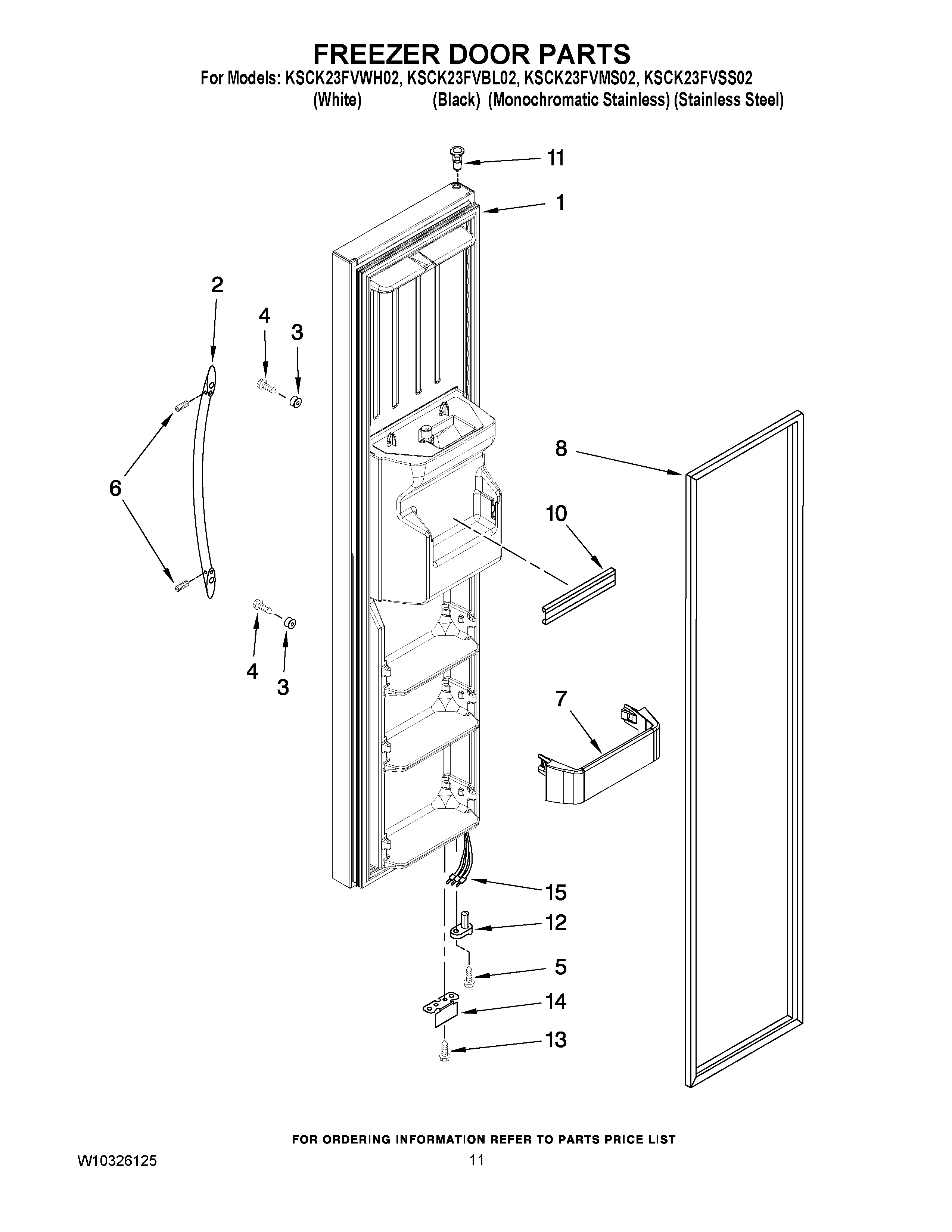

KSCK23FVMS02 07 – FREEZER DOOR PARTS

KSCK23FVMS02 07 – FREEZER DOOR PARTS

Written by

in

KSCK23FVMS02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS STEEL)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC STAINLESS)
2Handle, Door (Stainless Steel)
2WP2319727W Whirlpool Refrigerator Handle
2WP2319727B Whirlpool Refrigerator Handle
3WPW10170540 Whirlpool Screw
4Screw
5WP3400012 Whirlpool Refrigerator Screw
6SCREW
6WPW10010150 Whirlpool Refrigerator Screw
7Trivet (4)
8GASKET, DOOR (MIST BEIGE)
8GASKET, DOOR (BLACK)
8Door Gasket, Magnetic (Apollo Grey)
10WPW10307490 Whirlpool Door Trim Assembly
11WP2182181 Whirlpool Refrigerator Thimble
12W10132977 Whirlpool Refrigerator Door Cam
13WP489464 Whirlpool Refrigerator Screw
142306940B Whirlpool Refrigerator Bracket
14BRACKET, DOOR STOP (SILVER)
15Wire Assy, Door
