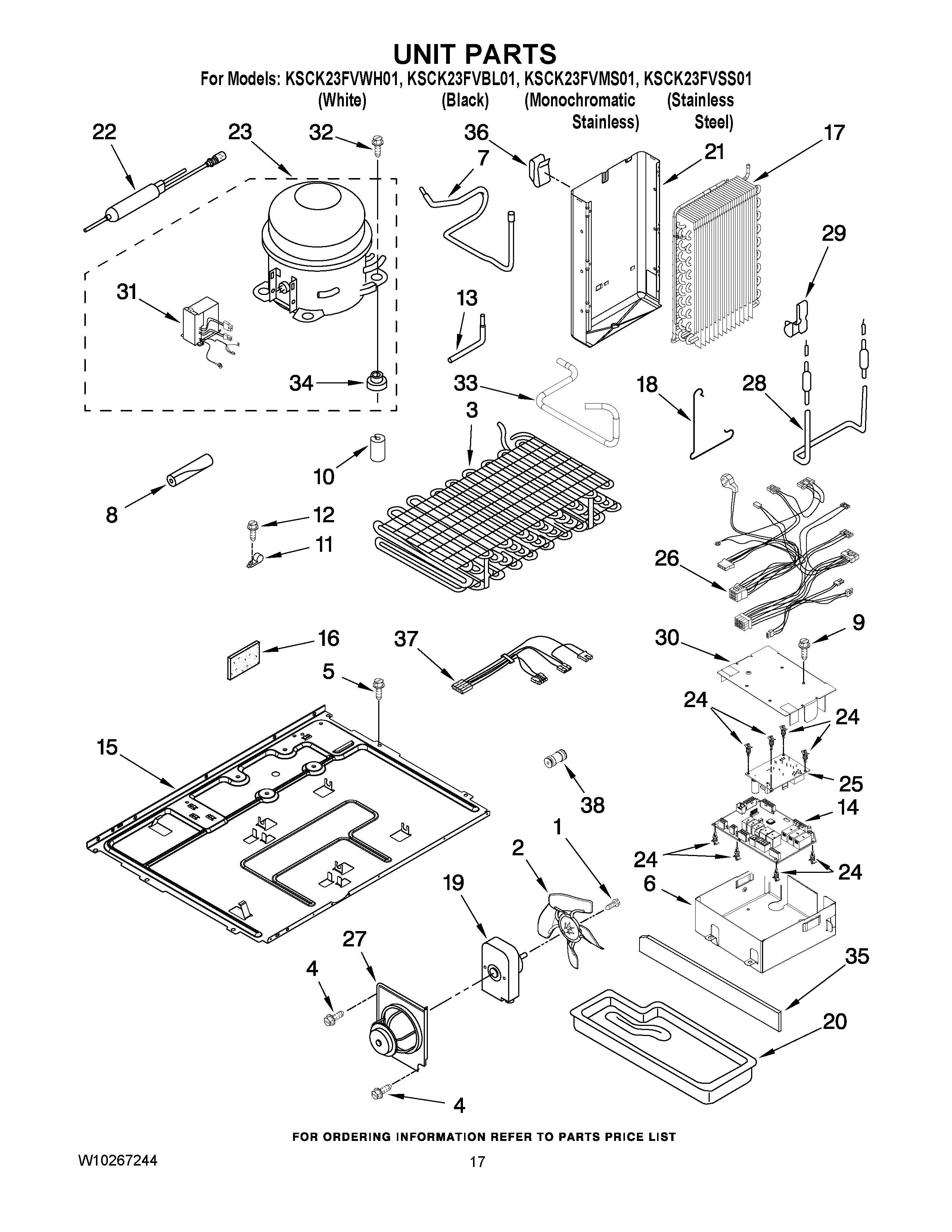

KSCK23FVSS01 11 – UNIT PARTS

KSCK23FVSS01 11 – UNIT PARTS

Written by

in

KSCK23FVSS01 11 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	REFRIGERANT CHARGE 6.00 oz. (R-134A)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10141625 Whirlpool Refrigerator Screw Assembly
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	W10193018 Whirlpool Refrigerator Condenser
4	WP489399 Whirlpool Refrigerator Screw
5	BOLT
6	HOUSING, CONTROL BOARD
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	WP488234 Whirlpool Air Conditioner Screw
10	W10852725 Whirlpool Refrigerator Grommet
11	W11456069 Whirlpool Refrigerator Clamp
12	SCREW
13	W10858105 Whirlpool Refrigerator Tube
14	WPW10209635-includeCORE Whirlpool WPW10209635 Refrigerator Electronic Control Board + Core
15	Baseplate
16	W11553819 Whirlpool Refrigerator Insulation
17	WP2188823 Whirlpool Refrigerator Evaporator
18	Clamp
19	WP2188874 Whirlpool Refrigerator Condenser Motor
20	Tray, Evaporator
21	SHIELD, HEAT
22	WPW10143759 Whirlpool Dryer Filter
23	8201675 Whirlpool Refrigerator Compressor
24	2223800 Whirlpool Refrigerator Spacer
25	WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
26	Harness, Main Control
27	BRACKET, FAN MOUNTING
28	Heater, Defrost
29	W11623163 Whirlpool Refrigerator Clip
30	COVER, CONTROL BOX
31	W10893917 Whirlpool Refrigerator Inverter Box
33	Tube, Discharge
34	876811 Whirlpool Grommet
35	2223394 Whirlpool Extension
36	Clip, Heat Shield
37	2187737 Whirlpool Refrigerator Wire Harness
38	WPW10334458 Whirlpool Refrigerator Connector
