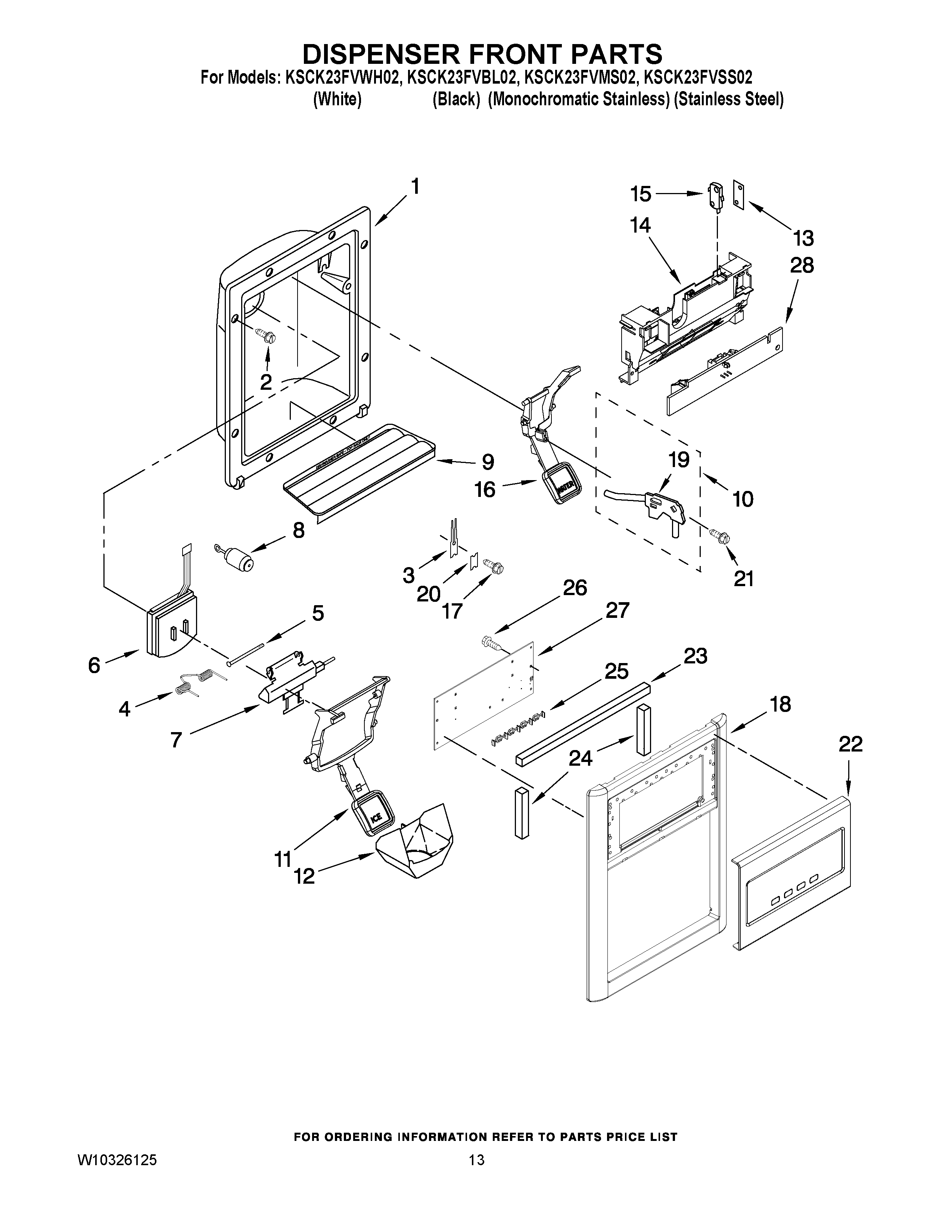

KSCK23FVWH02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10191952 Whirlpool Refrigerator Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (Universal Silver)
9	WP2206670B Whirlpool Dispenser Tray
9	WP2206670W Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Apollo Gray)
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	Lever, Ice Dispenser (Black (Storm Grey Pad))
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Spacer, Switch (2)
14	W10728484 Whirlpool Refrigerator Dispenser Control Bracket
15	WP2162361 Whirlpool Switch
16	Lever, Water Dispenser (Apollo Gray)
16	WPW10152858 Whirlpool Refrigerator Dispenser Arm
17	WP3400906 Whirlpool Refrigerator Screw
18	W10136850 Whirlpool Refrigerator Front Cover
18	Bezel, Disp (Black)
18	Bezel, Disp (Mono Satina (SS))
19	WP2304673 Whirlpool Refrigerator Bracket
20	WP2195051 Whirlpool Refrigerator Clip
21	WP3400065 Whirlpool Refrigerator Screw
22	Fascia Assy (White)
22	Fascia Assy (Black)
22	Fascia Assy (Stainless)
23	2305571 Whirlpool Gasket Assembly
24	Gasket, Disp (2)
25	Support, Window
26	2006254 Whirlpool Refrigerator Screw
27	Ctrl-Elek, UI
28	LED Assy
