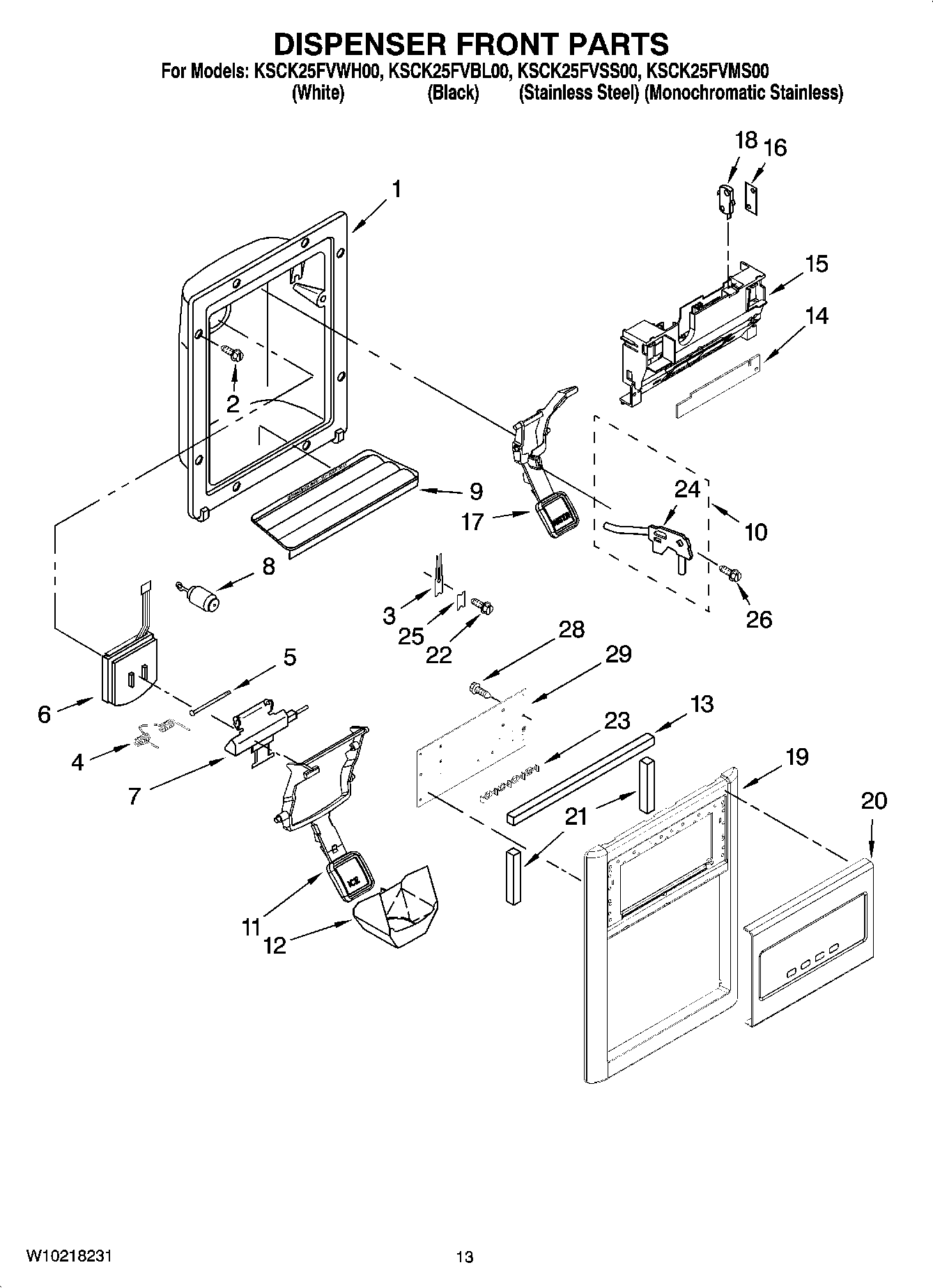

KSCK25FVBL00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (Universal Silver)
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670B Whirlpool Dispenser Tray
10	ASSEMBLY, WATER TUBE & BRACKET
11	Lever, Ice Dispenser (Apollo Gray)
11	Lever, Ice Dispenser (White (White Shadow Pad))
11	Lever, Ice Dispenser (Black (Storm Grey Pad))
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2305571 Whirlpool Gasket Assembly
14	LED Assy
15	W10728484 Whirlpool Refrigerator Dispenser Control Bracket
16	Spacer, Switch (2)
17	Lever, Water Dispenser (Apollo Gray)
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
18	WP2162361 Whirlpool Switch
19	W10136850 Whirlpool Refrigerator Front Cover
19	Bezel, Disp (Black)
19	Bezel, Disp (Mono Satina (SS))
20	Fascia Assy (White)
20	Fascia Assy (Stainless)
20	Fascia Assy (Black)
21	Gasket, Disp (2)
22	WP3400906 Whirlpool Refrigerator Screw
23	Support, Window
24	WP2304673 Whirlpool Refrigerator Bracket
25	WP2195051 Whirlpool Refrigerator Clip
26	WP3400065 Whirlpool Refrigerator Screw
28	2006254 Whirlpool Refrigerator Screw
29	Ctrl-Elek, UI
