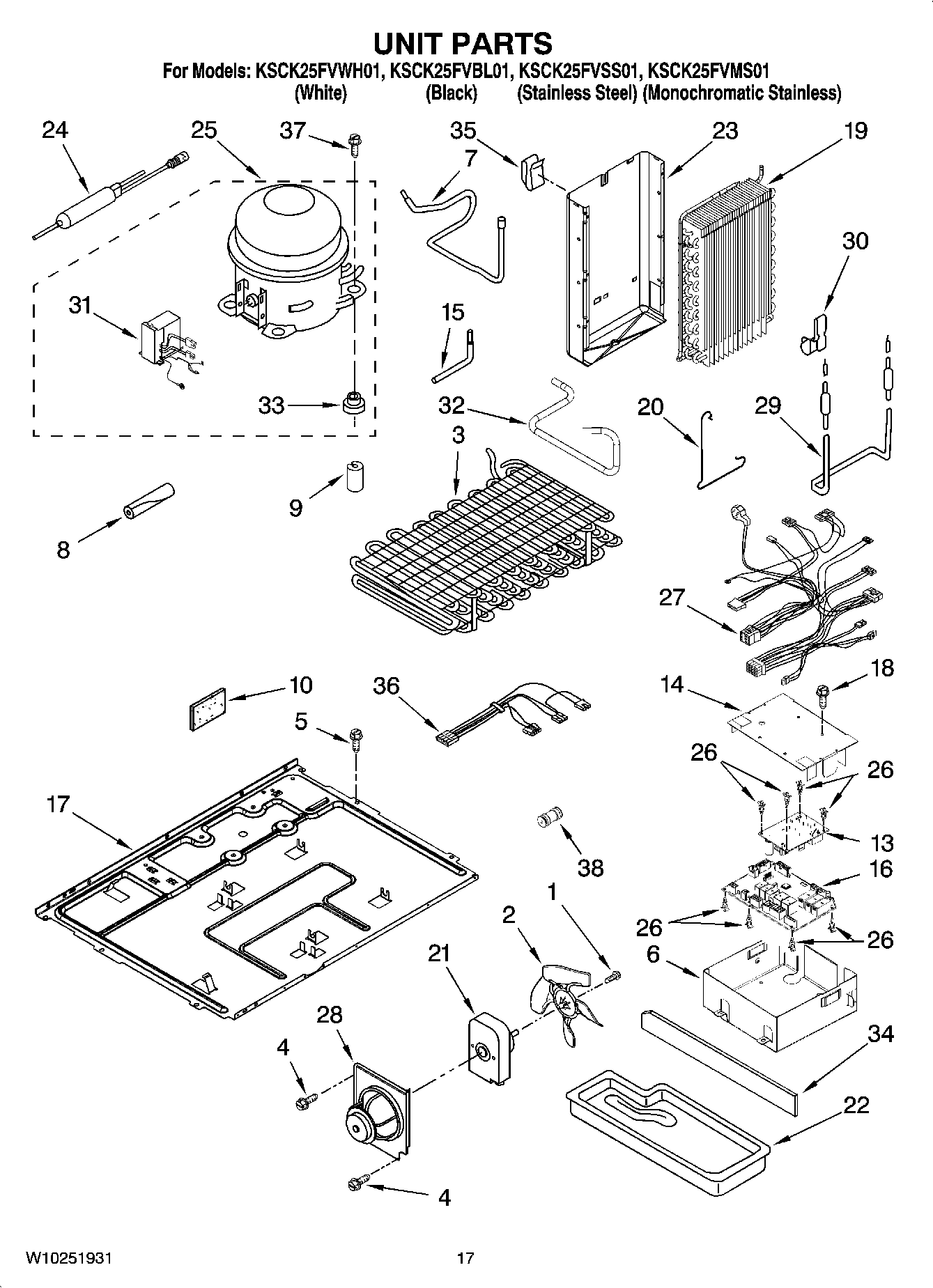

KSCK25FVBL01 11 – UNIT PARTSadmin2025-04-26T12:12:26+00:00KSCK25FVBL01 11 – UNIT PARTS
Products
| Position | Product |
|---|
| 978026 Whirlpool Refrigerator Primary Valve |
| VALVE, ACCESS (1/2``) |
| WP978025 Whirlpool Refrigerator Valve |
| 978030 Whirlpool Refrigerator Valve |
| 978027 Whirlpool Refrigerator Primary Valve |
| 876764 Whirlpool Refrigerator Primary Valve |
| Following Parts Not Illustrated and Optional Parts Not Included |
| REFRIGERANT CHARGE 6.00 oz. (R-134A) |
| VALVE, ACCESS (5/8``) |
| 1 | WP489399 Whirlpool Refrigerator Screw |
| 2 | WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40% |
| 3 | ASSEMBLY, CONDENSER |
| 4 | Screw, 8-18 x 5/8 |
| 5 | BOLT |
| 6 | Housing, Control Board |
| 7 | W10528579 Whirlpool Refrigerator Tube |
| 8 | SLEEVE |
| 9 | W10852725 Whirlpool Refrigerator Grommet |
| 10 | W11553819 Whirlpool Refrigerator Insulation |
| 13 | WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core |
| 14 | COVER, CONTROL BOX |
| 15 | W10858105 Whirlpool Refrigerator Tube |
| 16 | WPW10209635-includeCORE Whirlpool WPW10209635 Refrigerator Electronic Control Board + Core |
| 17 | Baseplate |
| 18 | WP488234 Whirlpool Air Conditioner Screw |
| 19 | WP2188823 Whirlpool Refrigerator Evaporator |
| 20 | Clamp |
| 21 | WP2188874 Whirlpool Refrigerator Condenser Motor |
| 22 | Tray, Evaporator |
| 23 | SHIELD, HEAT |
| 24 | WPW10143759 Whirlpool Dryer Filter |
| 25 | W10276644 Whirlpool Refrigerator Compressor |
| 26 | 2223800 Whirlpool Refrigerator Spacer |
| 27 | Harness, Main Control |
| 28 | BRACKET, FAN MOUNTING |
| 29 | Heater, Defrost |
| 30 | W11623163 Whirlpool Refrigerator Clip |
| 31 | W10893917 Whirlpool Refrigerator Inverter Box |
| 32 | Tube, Discharge |
| 33 | 876811 Whirlpool Grommet |
| 34 | 2223394 Whirlpool Extension |
| 35 | Clip, Heat Shield |
| 36 | 2187737 Whirlpool Refrigerator Wire Harness |
| 38 | WPW10334458 Whirlpool Refrigerator Connector |
