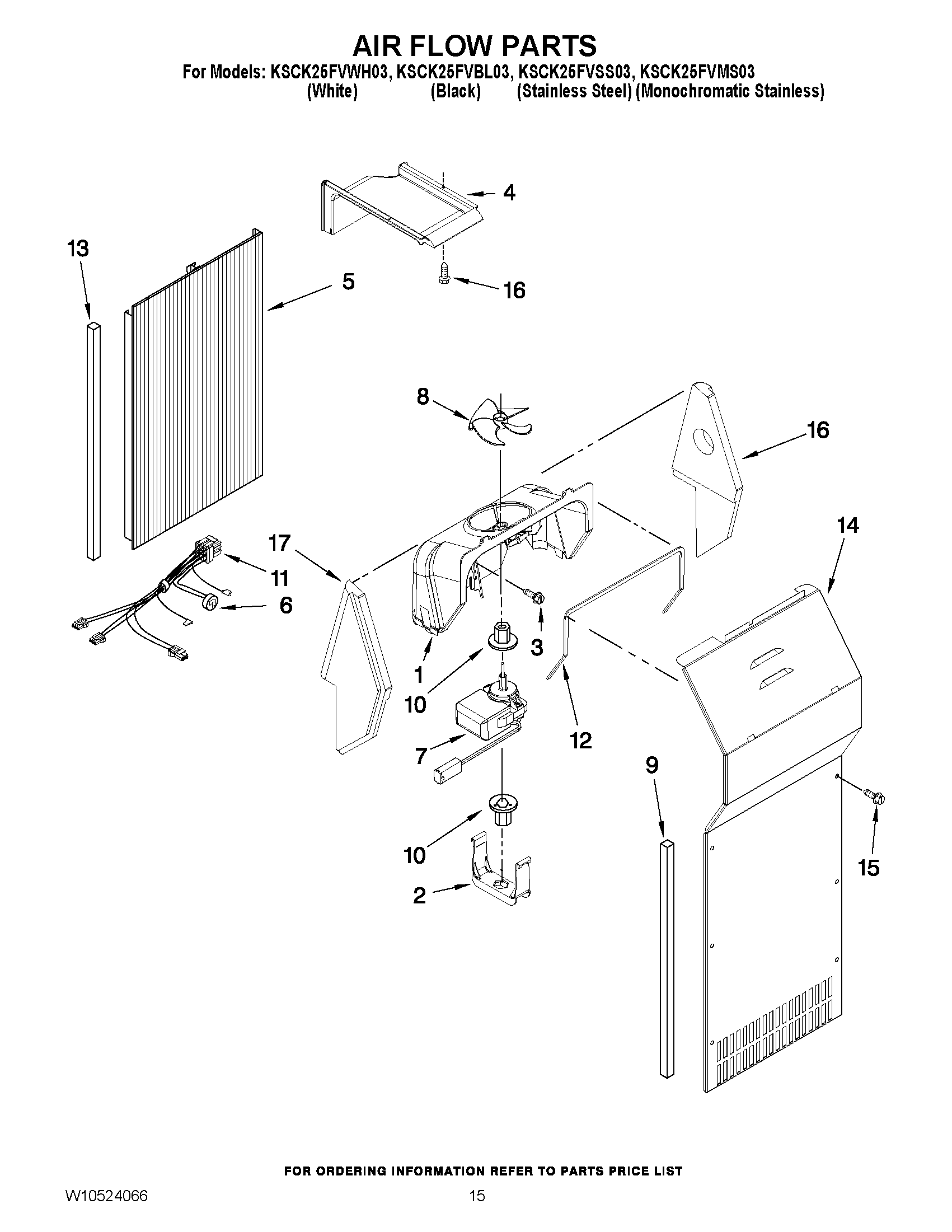

KSCK25FVMS03 09 – AIR FLOW PARTS

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	8201663 Whirlpool Refrigerator Primary Fan Blade
3	WP489478 Whirlpool Refrigerator Screw
4	AIR DUCT, UPPER
5	Air Duct Freezer
6	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
7	Motor, Fan
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	W11669856 Whirlpool Grommet
11	HARNESS, FAN EVAPORATOR (INCLUDES No.6)
12	WP2155789 Whirlpool Refrigerator Gasket
13	4388500 Whirlpool Refrigerator Gasket
14	2223413 Whirlpool Refrigerator Evaporator Cover
15	WP693995 Whirlpool Screw
16	Support, R.S
17	4388358 Whirlpool Refrigerator Support Bracket
