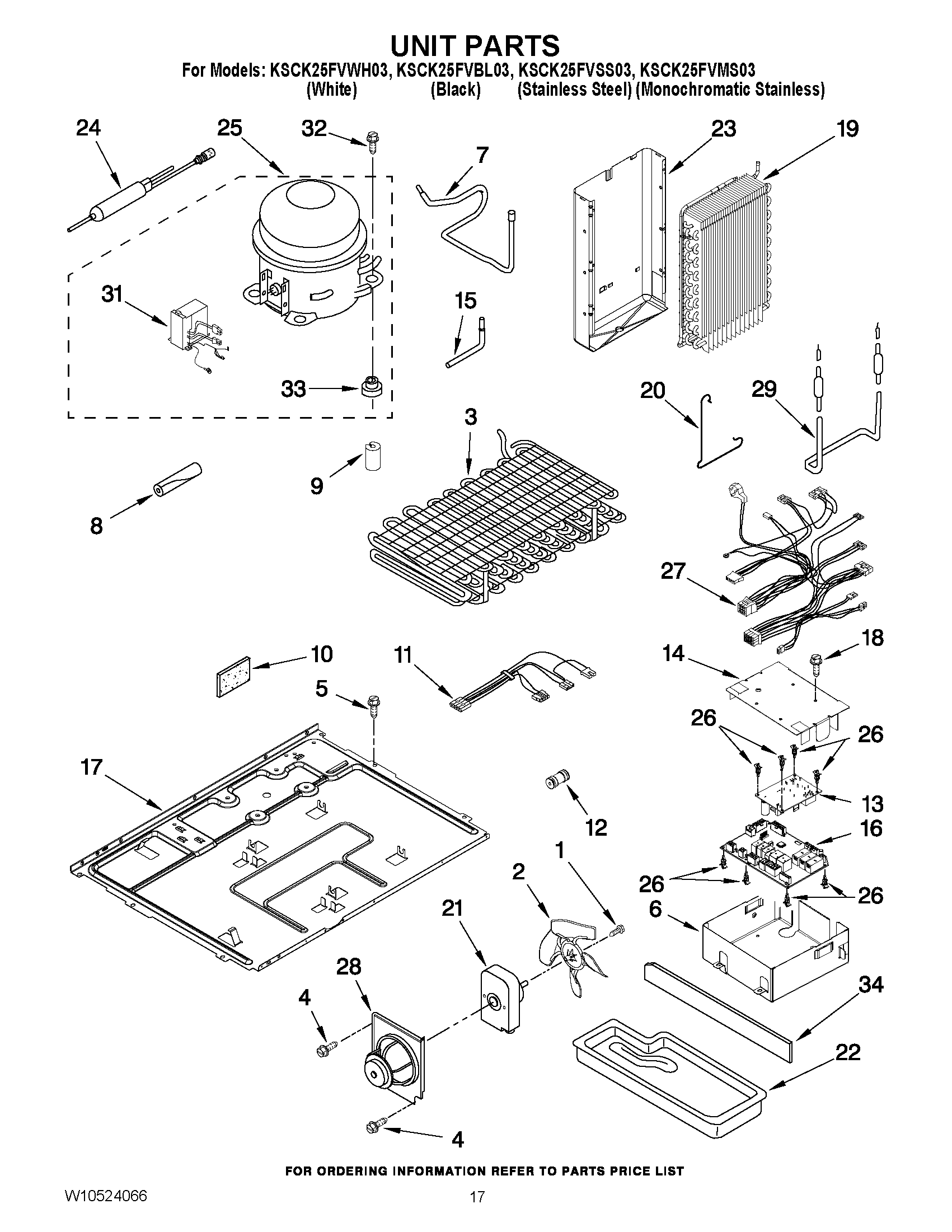

KSCK25FVMS03 11 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2``)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8``)
1	WP489399 Whirlpool Refrigerator Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	W10193018 Whirlpool Refrigerator Condenser
4	Screw, 8-18 x 5/8
5	BOLT
6	HOUSING, CONTROL BOARD
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W10852725 Whirlpool Refrigerator Grommet
10	W11553819 Whirlpool Refrigerator Insulation
11	2187737 Whirlpool Refrigerator Wire Harness
12	UNION
13	WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
14	COVER, CTRL BOARD
15	W10858105 Whirlpool Refrigerator Tube
16	WPW10209635-includeCORE Whirlpool WPW10209635 Refrigerator Electronic Control Board + Core
17	Baseplate
18	WP488234 Whirlpool Air Conditioner Screw
19	WP2188823 Whirlpool Refrigerator Evaporator
20	Clamp
21	WP2188874 Whirlpool Refrigerator Condenser Motor
22	Tray, Evaporator
23	SHIELD, HEAT
24	WPW10143759 Whirlpool Dryer Filter
25	W10276644 Whirlpool Refrigerator Compressor
26	2223800 Whirlpool Refrigerator Spacer
27	Harness, Main Control
28	BRACKET, FAN MOUNTING
29	Heater, Defrost
31	W10893917 Whirlpool Refrigerator Inverter Box
33	876811 Whirlpool Grommet
34	2223394 Whirlpool Extension
