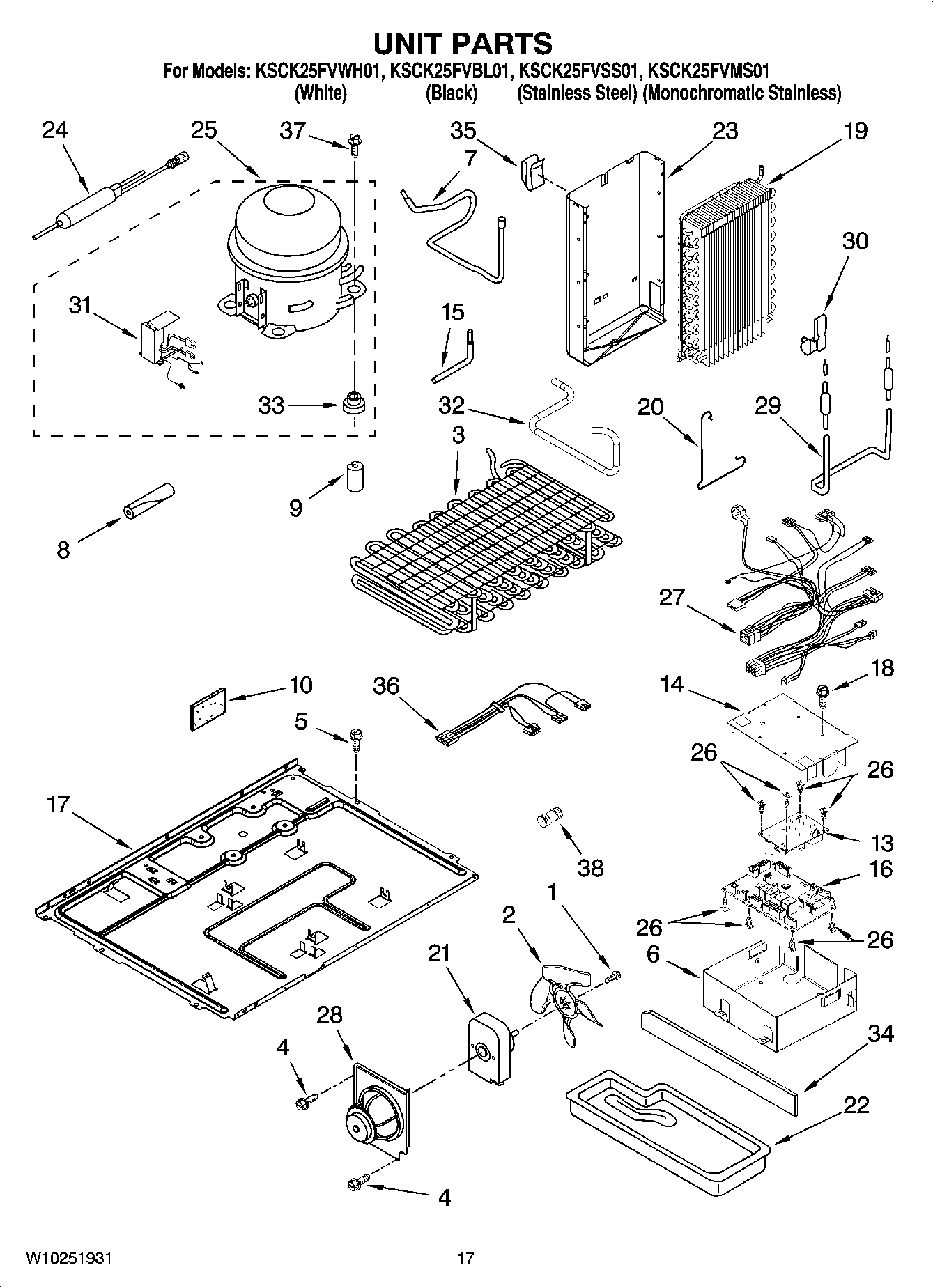

KSCK25FVWH01 11 – UNIT PARTS

KSCK25FVWH01 11 – UNIT PARTS

Written by

in

KSCK25FVWH01 11 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	REFRIGERANT CHARGE 6.00 oz. (R-134A)
	VALVE, ACCESS (5/8“)
1	WP489399 Whirlpool Refrigerator Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	ASSEMBLY, CONDENSER
4	Screw, 8-18 x 5/8
5	BOLT
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W10852725 Whirlpool Refrigerator Grommet
10	W11553819 Whirlpool Refrigerator Insulation
13	WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
14	COVER, CONTROL BOX
15	W10858105 Whirlpool Refrigerator Tube
16	WPW10209635-includeCORE Whirlpool WPW10209635 Refrigerator Electronic Control Board + Core
17	Baseplate
18	WP488234 Whirlpool Air Conditioner Screw
19	WP2188823 Whirlpool Refrigerator Evaporator
20	Clamp
21	WP2188874 Whirlpool Refrigerator Condenser Motor
22	Tray, Evaporator
23	SHIELD, HEAT
24	WPW10143759 Whirlpool Dryer Filter
25	W10276644 Whirlpool Refrigerator Compressor
26	2223800 Whirlpool Refrigerator Spacer
27	Harness, Main Control
28	BRACKET, FAN MOUNTING
29	Heater, Defrost
30	W11623163 Whirlpool Refrigerator Clip
31	W10893917 Whirlpool Refrigerator Inverter Box
32	Tube, Discharge
33	876811 Whirlpool Grommet
34	2223394 Whirlpool Extension
35	Clip, Heat Shield
36	2187737 Whirlpool Refrigerator Wire Harness
38	WPW10334458 Whirlpool Refrigerator Connector
