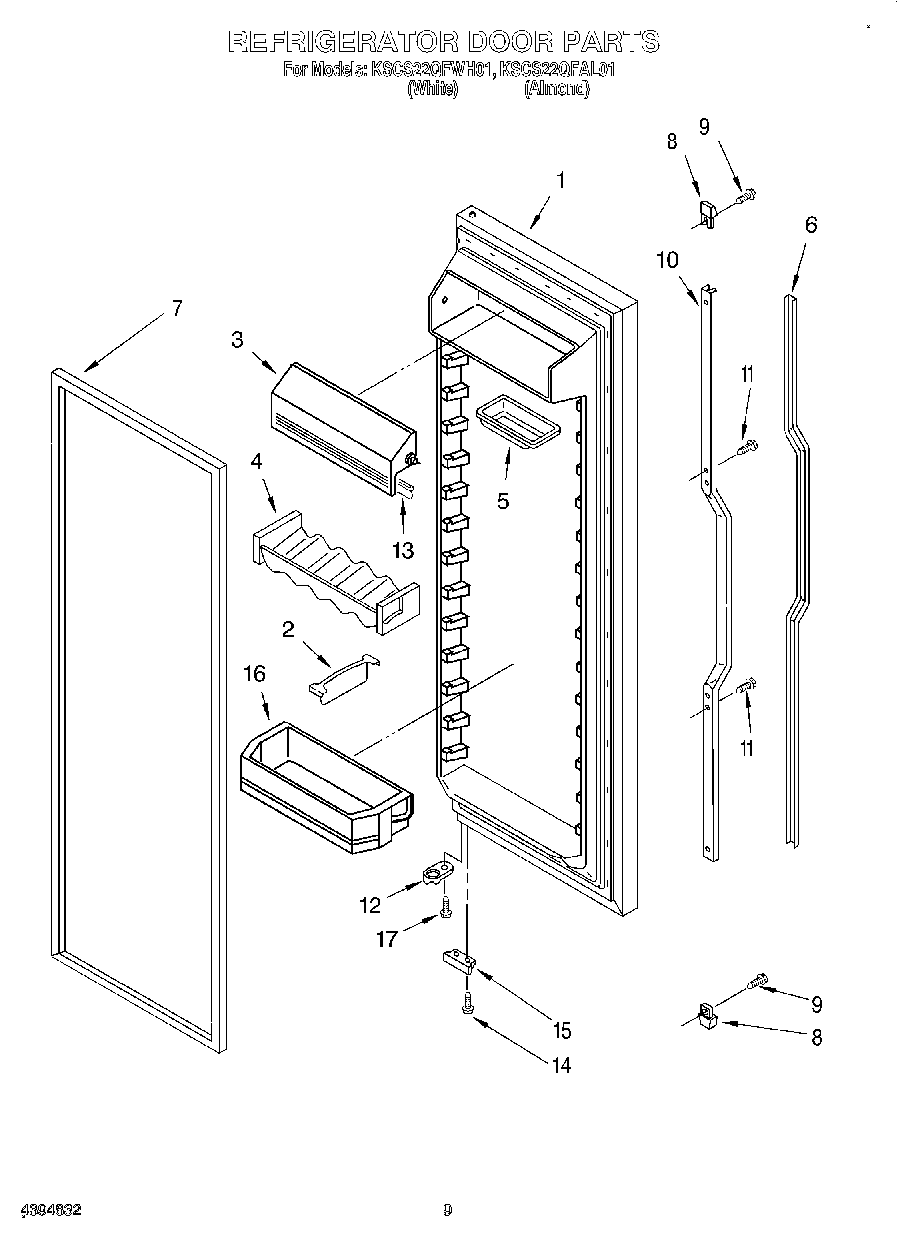

KSCS22QFAL01 06 – REFRIGERATOR DOORadmin2025-04-26T12:12:39+00:00KSCS22QFAL01 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.7) (Almond) |
| 1 | Refrigerator Door (Includes No.7) (White) |
| 2 | Divider, Bin |
| 3 | WP2313637 Whirlpool Cutting Grid Assembly |
| 4 | Beverage Holder |
| 5 | Butter Tray |
| 6 | Insert, Handle |
| 6 | Insert, Handle (Almond) |
| 7 | 2159073 Whirlpool Refrigerator Door Gasket |
| 8 | End Cap, Handle |
| 8 | End Cap, Handle (Almond) |
| 9 | WP3400852 Whirlpool Refrigerator Screw |
| 10 | Retainer, Handle (Almond) |
| 10 | Retainer, Insert |
| 11 | WP489463 Whirlpool Refrigerator Screw |
| 12 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 13 | Gasket, Door Compartment |
| 14 | WP489483 Whirlpool Screw |
| 15 | Bracket, Door Stop (Chrome) |
| 16 | Bin, Door Shelf |
| 17 | WP3400012 Whirlpool Refrigerator Screw |
