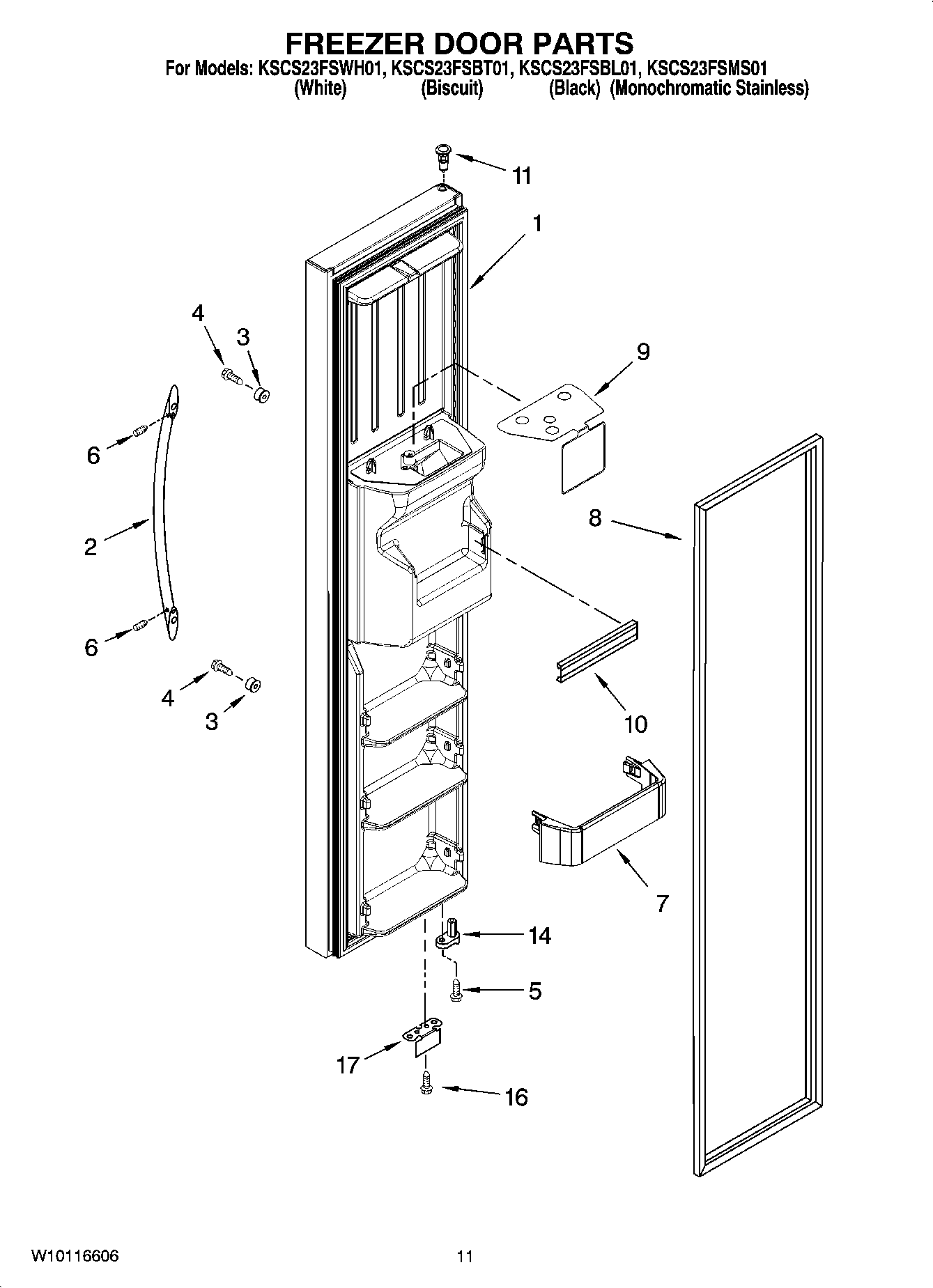

KSCS23FSBT01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle (Includes 4) (Biscuit)
2	Handle, Door (Stainless Steel)
2	WP2319727W Whirlpool Refrigerator Handle
2	WP2319727B Whirlpool Refrigerator Handle
3	WPW10170540 Whirlpool Screw
4	WP488163 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WPW10010150 Whirlpool Refrigerator Screw
6	SCREW
7	Shelf Bin (3)
8	GASKET, DOOR (BLACK)
8	GASKET, DOOR (MIST BEIGE)
9	Safety Barrier
10	WPW10307490 Whirlpool Door Trim Assembly
11	Thimble, Top (For Stainless Steel Models)
14	Door Closer, Upper Cam
16	WP489483 Whirlpool Screw
17	2306940B Whirlpool Refrigerator Bracket
17	2306940 Whirlpool Refrigerator Bracket
